FAFNIR

Type NB 220 QS

Type NB 220 QSF

Type NB 220 H

97 mm

51 mm

75 mm



		^ FAFNIR
		Betrieb -	□
		Prüfen -	□
		Alarm -	□
		Quittieren -	□
		Meßumformer Typ NB 220 QSF	□
		Hersteller FAFNIR GmbH, Hamburg Hilfsenergie 230 V, 50 Hz, 2 VA Zulassungskennzeichen Z-65.11-185 «	□
		^-1-

FAFNIR

Geber -0-Betrieb

FAFNIR

Niveaubegrenzer Typ NB 220 QS Herst.: FAFNIR GmbH Hamburg

05/PTB Nr. III B/S 1993-F PA-VI 830.17 Z-65.11-185

Typ NB 220 H 05/PTB Nr. III B/S 1993-F PA-VI 830.17 Z-65.11-185 Hersteller: FAFNIR GmbH Hamburg Hilfsenergie: 230 V, 40...60 Hz

Relais -0-Betrieb-0-

Depth 110 mm

Quittierung

Depth 110 mm

Depth 62 mm

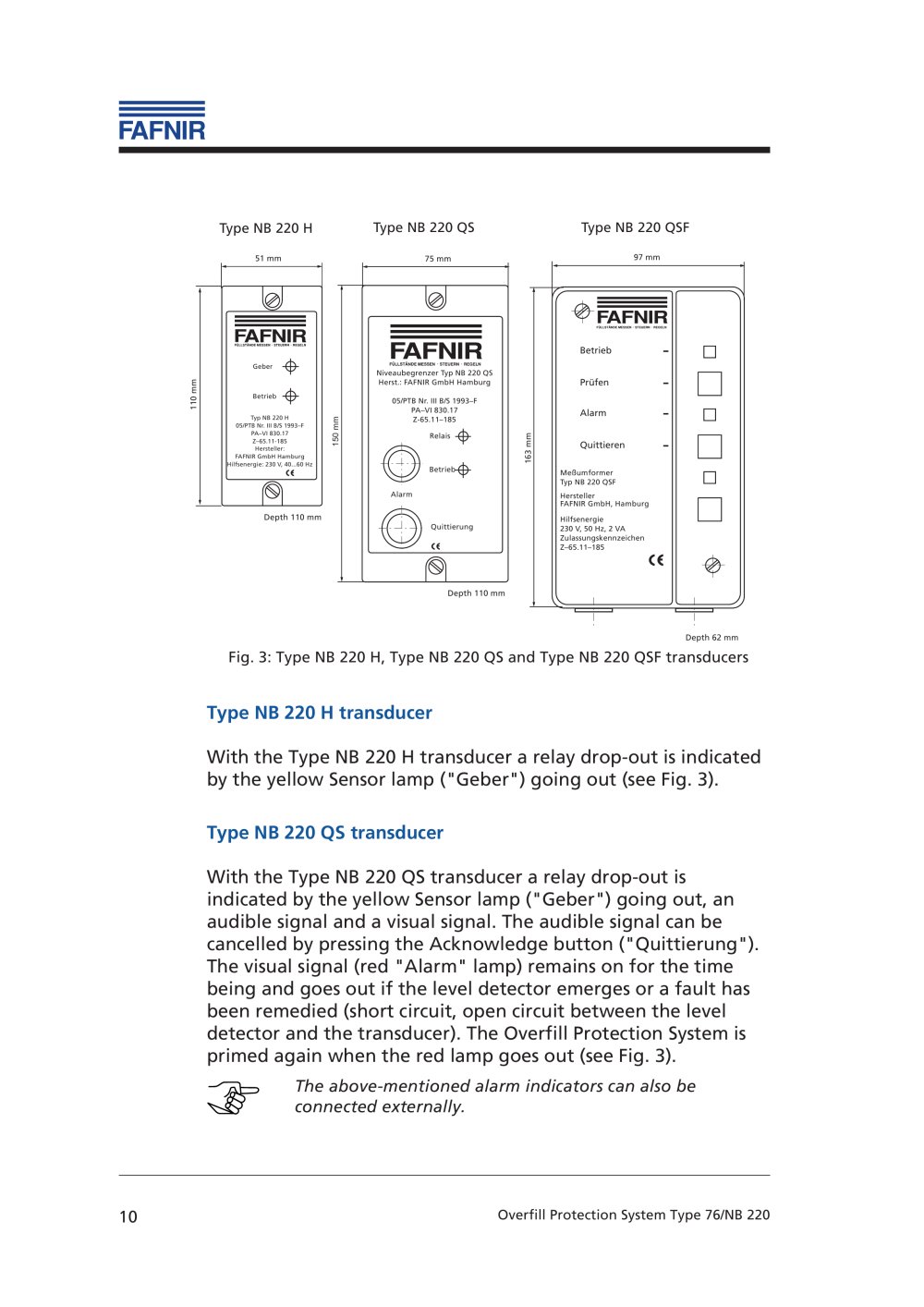

Fig. 3: Type NB 220 H, Type NB 220 QS and Type NB 220 QSF transducers

Type NB 220 H transducer

With the Type NB 220 H transducer a relay drop-out is indicated by the yellow Sensor lamp ("Geber") going out (see Fig. 3).

Type NB 220 QS transducer

With the Type NB 220 QS transducer a relay drop-out is indicated by the yellow Sensor lamp ("Geber") going out, an audible signal and a visual signal. The audible signal can be cancelled by pressing the Acknowledge button ("Quittierung"). The visual signal (red "Alarm" lamp) remains on for the time being and goes out if the level detector emerges or a fault has been remedied (short circuit, open circuit between the level detector and the transducer). The Overfill Protection System is primed again when the red lamp goes out (see Fig. 3).

The above-mentioned alarm indicators can also be connected externally.

Overfill Protection System Type 76/NB 220
