1 Mechanical engineering

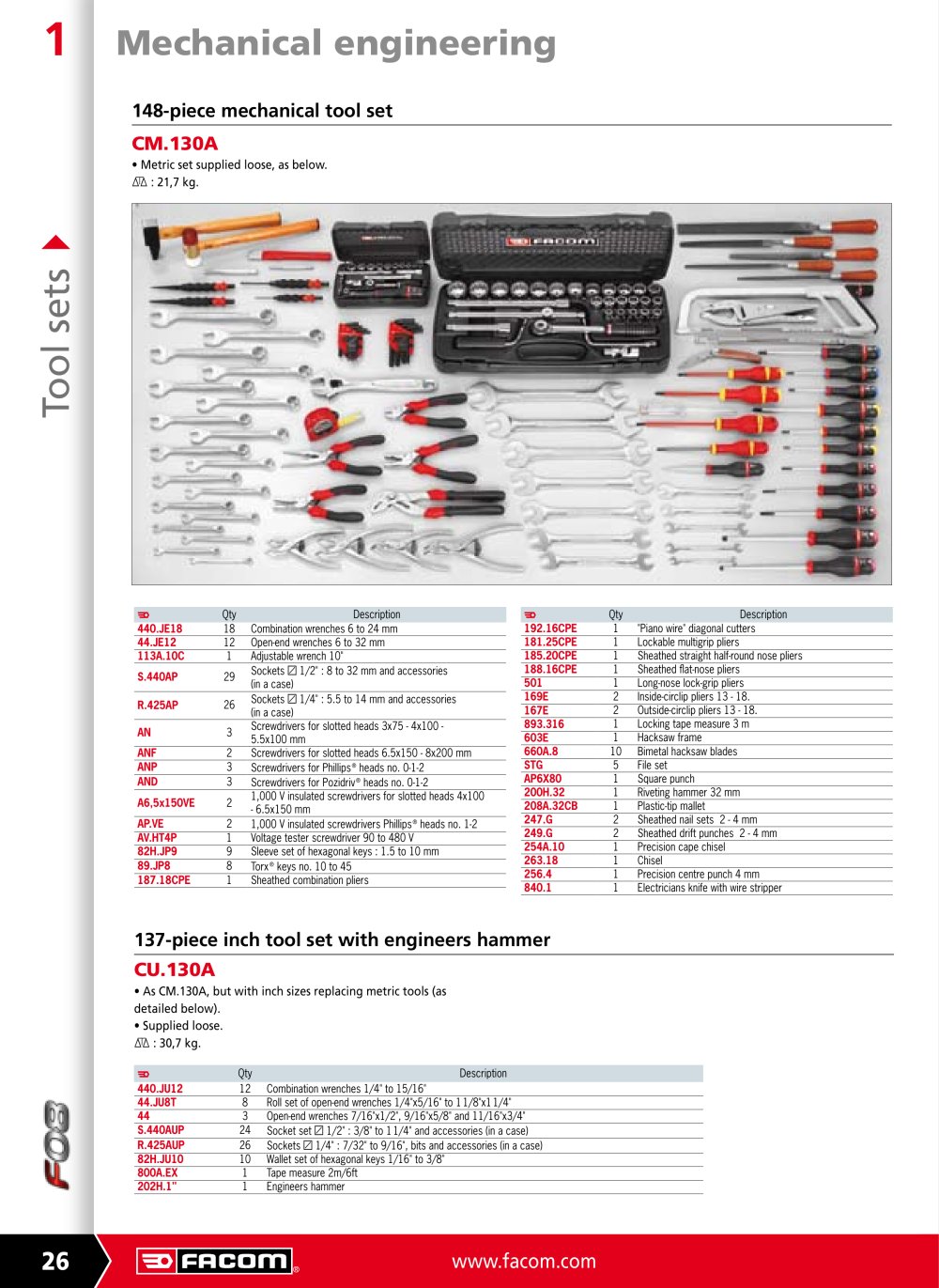

148-piece mechanical tool set CM.130A

• Metric set supplied loose, as below. D : 21,7 kg.

Tool sets F QtyDescription F QtyDescription 440.JE18 18Combination wrenches 6 to 24 mm 192.16CPE 1"Piano wire" diagonal cutters 44.JE12 12Open-end wrenches 6 to 32 mm 181.25CPE 1Lockable multigrip pliers 113A.10C 1Adjustable wrench 10" 185.20CPE 1Sheathed straight half-round nose pliers S.440AP 29Sockets L 1/2" : 8 to 32 mm and accessories (in a case) 188.16CPE 1Sheathed flat-nose pliers 501 1Long-nose lock-grip pliers 169E 2Inside-circlip pliers 13 - 18. R.425AP 26Sockets L 1/4" : 5.5 to 14 mm and accessories (in a case) 167E 2Outside-circlip pliers 13 - 18. 893.316 1Locking tape measure 3 m AN 3Screwdrivers for slotted heads 3x75 - 4x100 - 5.5x100 mm 603E 1Hacksaw frame ANF 2Screwdrivers for slotted heads 6.5x150 - 8x200 mm 660A.8 10Bimetal hacksaw blades ANP 3Screwdrivers for Phillips J heads no. 0-1-2 STG 5File set AND 3Screwdrivers for Pozidriv J heads no. 0-1-2 AP6X80 1Square punch 200H.32 1Riveting hammer 32 mm A6,5x150VE 21,000 V insulated screwdrivers for slotted heads 4x100 - 6.5x150 mm 208A.32CB 1Plastic-tip mallet AP.VE 21,000 V insulated screwdrivers Phillips J heads no. 1-2 247.G 2Sheathed nail sets 2 - 4 mm AV.HT4P 1Voltage tester screwdriver 90 to 480 V 249.G 2Sheathed drift punches 2 - 4 mm 82H.JP9 9Sleeve set of hexagonal keys : 1.5 to 10 mm 254A.10 1Precision cape chisel 89.JP8 8Torx J keys no. 10 to 45 263.18 1Chisel 187.18CPE 1Sheathed combination pliers 256.4 1Precision centre punch 4 mm 840.1 1Electricians knife with wire stripper

137-piece inch tool set with engineers hammer CU.130A

D : 30,7 kg. • As CM.130A, but with inch sizes replacing metric tools (as detailed below). • Supplied loose.

F QtyDescription 440.JU12 12Combination wrenches 1/4" to 15/16" 44.JU8T 8Roll set of open-end wrenches 1/4"x5/16" to 1 1/8"x1 1/4" 44 3Open-end wrenches 7/16"x1/2", 9/16"x5/8" and 11/16"x3/4" S.440AUP 24Socket set L 1/2" : 3/8" to 1 1/4" and accessories (in a case) R.425AUP 26Sockets L 1/4" : 7/32" to 9/16", bits and accessories (in a case) 82H.JU10 10Wallet set of hexagonal keys 1/16" to 3/8" 800A.EX 1Tape measure 2m/6ft 202H.1" 1Engineers hammer

26

www.facom.com
