1 Mechanical engineering

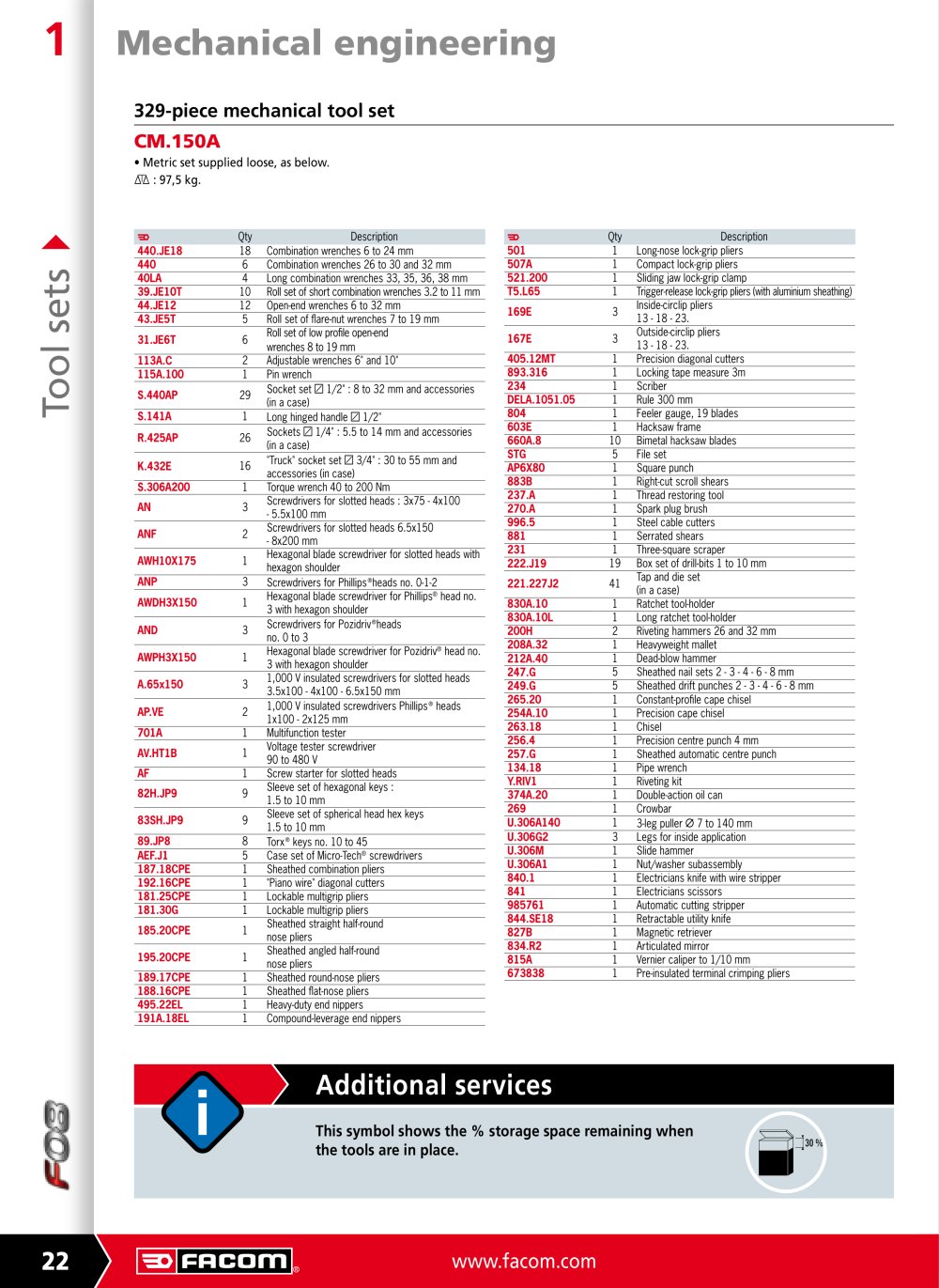

329-piece mechanical tool set CM.150A

• Metric set supplied loose, as below. D : 97,5 kg.

F QtyDescription F QtyDescription 440.JE18 18Combination wrenches 6 to 24 mm 501 1Long-nose lock-grip pliers 440 6Combination wrenches 26 to 30 and 32 mm 507A 1Compact lock-grip pliers 40LA 4Long combination wrenches 33, 35, 36, 38 mm 521.200 1Sliding jaw lock-grip clamp 39.JE10T 10Roll set of short combination wrenches 3.2 to 11 mm T5.L65 1 Trigger-release lock-grip pliers (with aluminium sheathing) 44.JE12 12Open-end wrenches 6 to 32 mm 43.JE5T 5Roll set of flare-nut wrenches 7 to 19 mm 169E 3Inside-circlip pliers 13 - 18 - 23. 31.JE6T 6Roll set of low profile open-end wrenches 8 to 19 mm 167E 3Outside-circlip pliers 13 - 18 - 23. 113A.C 2Adjustable wrenches 6" and 10" 405.12MT 1Precision diagonal cutters 115A.100 1Pin wrench 893.316 1Locking tape measure 3m 234 1Scriber S.440AP 29Socket set L 1/2" : 8 to 32 mm and accessories (in a case) DELA.1051.05 1Rule 300 mm
Tool sets S.141A 1Long hinged handle L 1/2" 804 1Feeler gauge, 19 blades 603E 1Hacksaw frame R.425AP 26Sockets L 1/4" : 5.5 to 14 mm and accessories (in a case) 660A.8 10Bimetal hacksaw blades STG 5File set K.432E 16"Truck" socket set L 3/4" : 30 to 55 mm and accessories (in case) AP6X80 1Square punch S.306A200 1Torque wrench 40 to 200 Nm 883B 1Right-cut scroll shears 237.A 1Thread restoring tool AN 3Screwdrivers for slotted heads : 3x75 - 4x100 - 5.5x100 mm 270.A 1Spark plug brush 996.5 1Steel cable cutters ANF 2Screwdrivers for slotted heads 6.5x150 - 8x200 mm 881 1Serrated shears 231 1Three-square scraper AWH10X175 1Hexagonal blade screwdriver for slotted heads with hexagon shoulder 222.J19 19Box set of drill-bits 1 to 10 mm ANP 3Screwdrivers for Phillips J heads no. 0-1-2 221.227J2 41Tap and die set (in a case)
® AWDH3X150 1Hexagonal blade screwdriver for Phillips head no. 3 with hexagon shoulder 830A.10 1Ratchet tool-holder 830A.10L 1Long ratchet tool-holder AND 3Screwdrivers for Pozidriv J heads no. 0 to 3 200H 2Riveting hammers 26 and 32 mm
® 208A.32 1Heavyweight mallet AWPH3X150 1Hexagonal blade screwdriver for Pozidriv head no. 3 with hexagon shoulder 212A.40 1Dead-blow hammer 247.G 5Sheathed nail sets 2 - 3 - 4 - 6 - 8 mm A.65x150 31,000 V insulated screwdrivers for slotted heads 3.5x100 - 4x100 - 6.5x150 mm 249.G 5Sheathed drift punches 2 - 3 - 4 - 6 - 8 mm 265.20 1Constant-profile cape chisel AP.VE 21,000 V insulated screwdrivers Phillips J heads 1x100 - 2x125 mm 254A.10 1Precision cape chisel 701A 1Multifunction tester 263.18 1Chisel 256.4 1Precision centre punch 4 mm AV.HT1B 1Voltage tester screwdriver 90 to 480 V 257.G 1Sheathed automatic centre punch AF 1Screw starter for slotted heads 134.18 1Pipe wrench Y.RIV1 1Riveting kit 82H.JP9 9Sleeve set of hexagonal keys : 1.5 to 10 mm 374A.20 1Double-action oil can 269 1Crowbar 83SH.JP9 9Sleeve set of spherical head hex keys 1.5 to 10 mm U.306A140 13-leg puller d 7 to 140 mm 89.JP8 8Torx J keys no. 10 to 45 U.306G2 3Legs for inside application AEF.J1 5Case set of Micro-Tech
® screwdrivers U.306M 1Slide hammer 187.18CPE 1Sheathed combination pliers U.306A1 1Nut/washer subassembly 192.16CPE 1"Piano wire" diagonal cutters 840.1 1Electricians knife with wire stripper 181.25CPE 1Lockable multigrip pliers 841 1Electricians scissors 181.30G 1Lockable multigrip pliers 985761 1Automatic cutting stripper 844.SE18 1Retractable utility knife 185.20CPE 1Sheathed straight half-round nose pliers 827B 1Magnetic retriever 834.R2 1Articulated mirror 195.20CPE 1Sheathed angled half-round nose pliers 815A 1Vernier caliper to 1/10 mm 189.17CPE 1Sheathed round-nose pliers 673838 1Pre-insulated terminal crimping pliers 188.16CPE 1Sheathed flat-nose pliers 495.22EL 1Heavy-duty end nippers 191A.18EL 1Compound-leverage end nippers

Additional services

This symbol shows the % storage space remaining when the tools are in place.

30 %
