1 Mechanical engineering

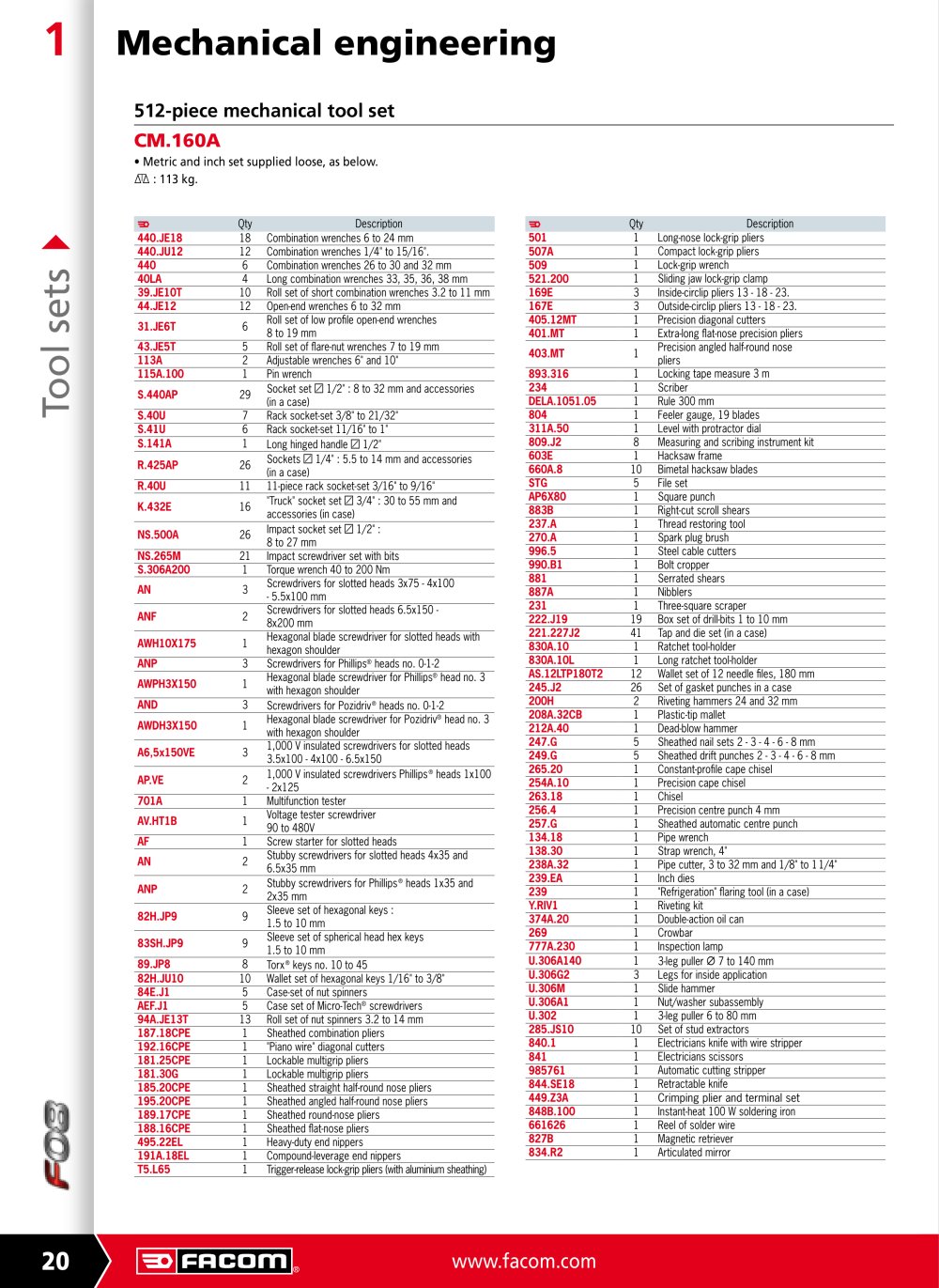

512-piece mechanical tool set CM.160A

• Metric and inch set supplied loose, as below. D : 113 kg.

F QtyDescription F QtyDescription 440.JE18 18Combination wrenches 6 to 24 mm 501 1Long-nose lock-grip pliers 440.JU12 12Combination wrenches 1/4" to 15/16". 507A 1Compact lock-grip pliers 440 6Combination wrenches 26 to 30 and 32 mm 509 1Lock-grip wrench 40LA 4Long combination wrenches 33, 35, 36, 38 mm 521.200 1Sliding jaw lock-grip clamp 39.JE10T 10Roll set of short combination wrenches 3.2 to 11 mm 169E 3Inside-circlip pliers 13 - 18 - 23. 44.JE12 12Open-end wrenches 6 to 32 mm 167E 3Outside-circlip pliers 13 - 18 - 23. 31.JE6T 6Roll set of low profile open-end wrenches 8 to 19 mm 405.12MT 1Precision diagonal cutters 401.MT 1Extra-long flat-nose precision pliers 43.JE5T 5Roll set of flare-nut wrenches 7 to 19 mm 113A 2Adjustable wrenches 6" and 10" 403.MT 1Precision angled half-round nose pliers 115A.100 1Pin wrench 893.316 1Locking tape measure 3 m S.440AP 29Socket set L 1/2" : 8 to 32 mm and accessories (in a case) 234 1Scriber DELA.1051.05 1Rule 300 mm S.40U 7Rack socket-set 3/8" to 21/32" 804 1Feeler gauge, 19 blades
Tool sets S.41U 6Rack socket-set 11/16" to 1" 311A.50 1Level with protractor dial S.141A 1Long hinged handle L 1/2" 809.J2 8Measuring and scribing instrument kit L 1/4" : 5.5 to 14 mm and accessories (in a case) 603E 1Hacksaw frame R.425AP 26Sockets 660A.8 10Bimetal hacksaw blades R.40U 1111-piece rack socket-set 3/16" to 9/16" STG 5File set L 3/4" : 30 to 55 mm and accessories (in case) AP6X80 1Square punch K.432E 16"Truck" socket set 883B 1Right-cut scroll shears L 1/2" : 8 to 27 mm 237.A 1Thread restoring tool NS.500A 26Impact socket set 270.A 1Spark plug brush NS.265M 21Impact screwdriver set with bits 996.5 1Steel cable cutters S.306A200 1Torque wrench 40 to 200 Nm 990.B1 1Bolt cropper 881 1Serrated shears AN 3Screwdrivers for slotted heads 3x75 - 4x100 - 5.5x100 mm 887A 1Nibblers 231 1Three-square scraper ANF 2Screwdrivers for slotted heads 6.5x150 - 8x200 mm 222.J19 19Box set of drill-bits 1 to 10 mm 221.227J2 41Tap and die set (in a case) AWH10X175 1Hexagonal blade screwdriver for slotted heads with hexagon shoulder 830A.10 1Ratchet tool-holder ANP 3Screwdrivers for Phillips
® heads no. 0-1-2 830A.10L 1Long ratchet tool-holder
® head no. 3 with hexagon shoulder AS.12LTP180T2 12Wallet set of 12 needle files, 180 mm AWPH3X150 1Hexagonal blade screwdriver for Phillips 245.J2 26Set of gasket punches in a case AND 3Screwdrivers for Pozidriv J heads no. 0-1-2 200H 2Riveting hammers 24 and 32 mm
® head no. 3 with hexagon shoulder 208A.32CB 1Plastic-tip mallet AWDH3X150 1Hexagonal blade screwdriver for Pozidriv 212A.40 1Dead-blow hammer 247.G 5Sheathed nail sets 2 - 3 - 4 - 6 - 8 mm A6,5x150VE 31,000 V insulated screwdrivers for slotted heads 3.5x100 - 4x100 - 6.5x150 249.G 5Sheathed drift punches 2 - 3 - 4 - 6 - 8 mm J heads 1x100 - 2x125 265.20 1Constant-profile cape chisel AP.VE 21,000 V insulated screwdrivers Phillips 254A.10 1Precision cape chisel 701A 1Multifunction tester 263.18 1Chisel 256.4 1Precision centre punch 4 mm AV.HT1B 1Voltage tester screwdriver 90 to 480V 257.G 1Sheathed automatic centre punch AF 1Screw starter for slotted heads 134.18 1Pipe wrench 138.30 1Strap wrench, 4" AN 2Stubby screwdrivers for slotted heads 4x35 and 6.5x35 mm 238A.32 1Pipe cutter, 3 to 32 mm and 1/8" to 1 1/4" J heads 1x35 and 2x35 mm 239.EA 1Inch dies ANP 2Stubby screwdrivers for Phillips 239 1"Refrigeration" flaring tool (in a case) Y.RIV1 1Riveting kit 82H.JP9 9Sleeve set of hexagonal keys : 1.5 to 10 mm 374A.20 1Double-action oil can 269 1Crowbar 83SH.JP9 9Sleeve set of spherical head hex keys 1.5 to 10 mm 777A.230 1Inspection lamp 89.JP8 8Torx J keys no. 10 to 45 U.306A140 13-leg puller d 7 to 140 mm 82H.JU10 10Wallet set of hexagonal keys 1/16" to 3/8" U.306G2 3Legs for inside application 84E.J1 5Case-set of nut spinners U.306M 1Slide hammer AEF.J1 5Case set of Micro-Tech
® screwdrivers U.306A1 1Nut/washer subassembly 94A.JE13T 13Roll set of nut spinners 3.2 to 14 mm U.302 13-leg puller 6 to 80 mm 187.18CPE 1Sheathed combination pliers 285.JS10 10Set of stud extractors 192.16CPE 1"Piano wire" diagonal cutters 840.1 1Electricians knife with wire stripper 181.25CPE 1Lockable multigrip pliers 841 1Electricians scissors 181.30G 1Lockable multigrip pliers 985761 1Automatic cutting stripper 185.20CPE 1Sheathed straight half-round nose pliers 844.SE18 1Retractable knife 195.20CPE 1Sheathed angled half-round nose pliers 449.Z3A 1 Crimping plier and terminal set 189.17CPE 1Sheathed round-nose pliers 848B.100 1Instant-heat 100 W soldering iron 188.16CPE 1Sheathed flat-nose pliers 661626 1Reel of solder wire 495.22EL 1Heavy-duty end nippers 827B 1Magnetic retriever 191A.18EL 1Compound-leverage end nippers 834.R2 1Articulated mirror T5.L65 1Trigger-release lock-grip pliers (with aluminium sheathing)

20
