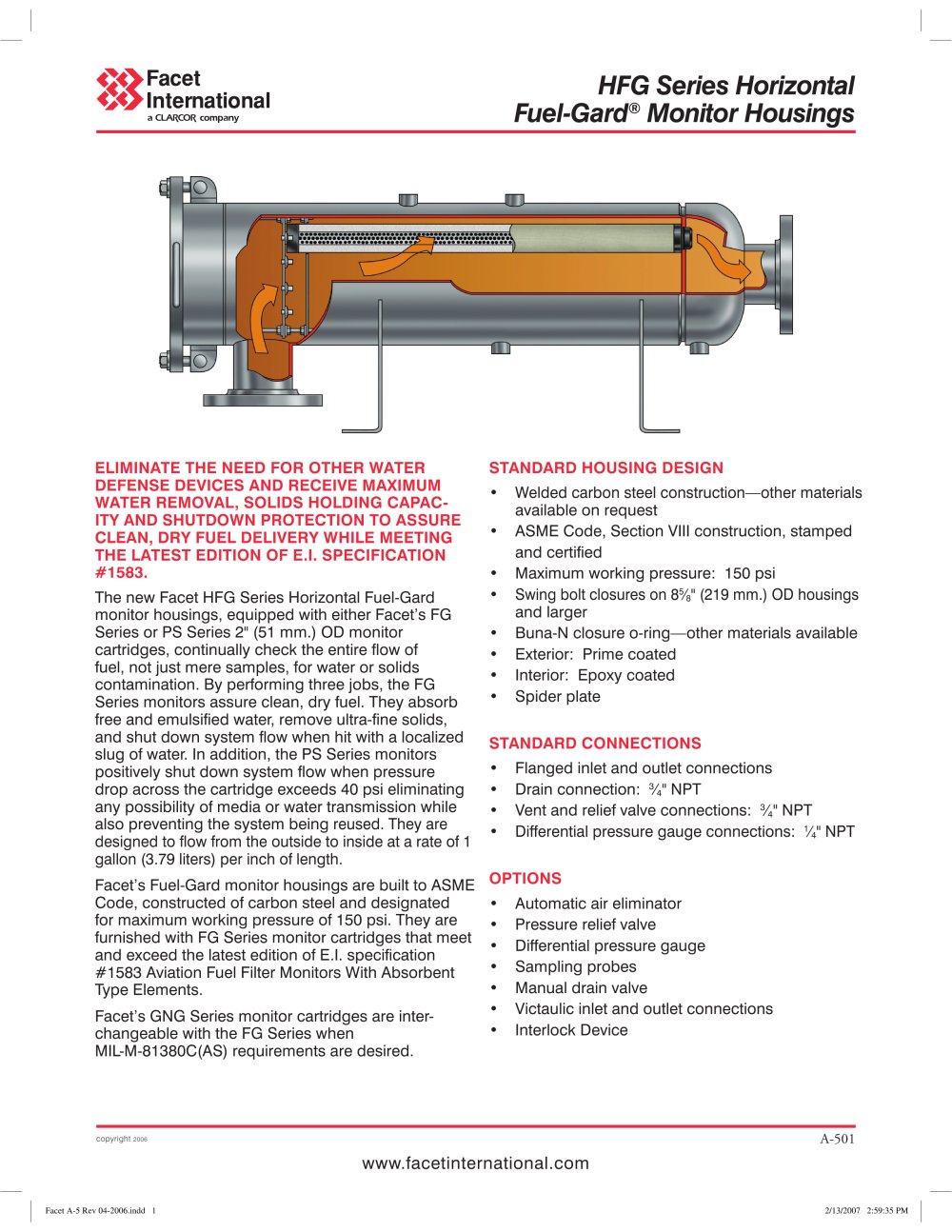

HFG Series HorizontalFuel-Gard

®

Monitor Housings

STANDARD HOUSING DESIGN • ELIMINATE THE NEED FOR OTHER WATERDEFENSE DEVICES AND RECEIVE MAXIMUMWATER REMOVAL, SOLIDS HOLDING CAPAC-ITY Welded carbon steel construction—other materials AND SHUTDOWN PROTECTION TO ASSURE CLEAN, available on request•ASME Code, Section VIII construction, stamped and certified•Maximum working pressure: 150 psi• DRY FUEL DELIVERY WHILE MEETING THE LATEST EDITION OF E.I. SPECIFICATION #1583. The new Facet HFG Series Horizontal Fuel-Gardmonitor housings, equipped with either Facet’s FG Series or PS Series 2" (51 mm.) OD monitor cartridges, continually check the entire flow of fuel, not just mere samples, for water or solids contamination. By performing three jobs, the FG Series monitors assure clean, dry fuel. They absorb free and emulsified water, remove ultra-fine solids, and shut down system flow when hit with a localized slug of water. In addition, the PS Series monitors positively shut down system flow when pressure drop across the cartridge exceeds 40 psi eliminating any possibility of media or water transmission while also preventing the system being Swing bolt closures on 8
5 ¼
8 " (219 mm.) OD housings and larger•Buna-N closure o-ring—other materials available•Exterior: Prime coated•Interior: Epoxy coated •Spider plate STANDARD CONNECTIONS •Flanged inlet and outlet connections•Drain connection:
3 ¼
4 " NPT•Vent and relief valve connections:
3 ¼
4 " NPT• reused. They are designed to flow from the outside to inside at a rate of 1 gallon (3.79 liters) per inch of length. Differential pressure gauge connections:
1 ¼
4 " NPT Facet’s Fuel-Gard monitor housings are built to ASME Code, constructed of carbon steel and designated for maximum working pressure of 150 psi. They are furnished with FG Series monitor cartridges that meet and exceed the latest edition of E.I. specification #1583 Aviation Fuel Filter Monitors With Absorbent Type Elements.Facet’s GNG Series monitor cartridges are inter-changeable with the FG Series when MIL-M-81380C(AS) requirements are desired. OPTIONS •Automatic air eliminator•Pressure relief valve•Differential pressure gauge•Sampling probes•Manual drain valve•Victaulic inlet and outlet connections•Interlock Device
