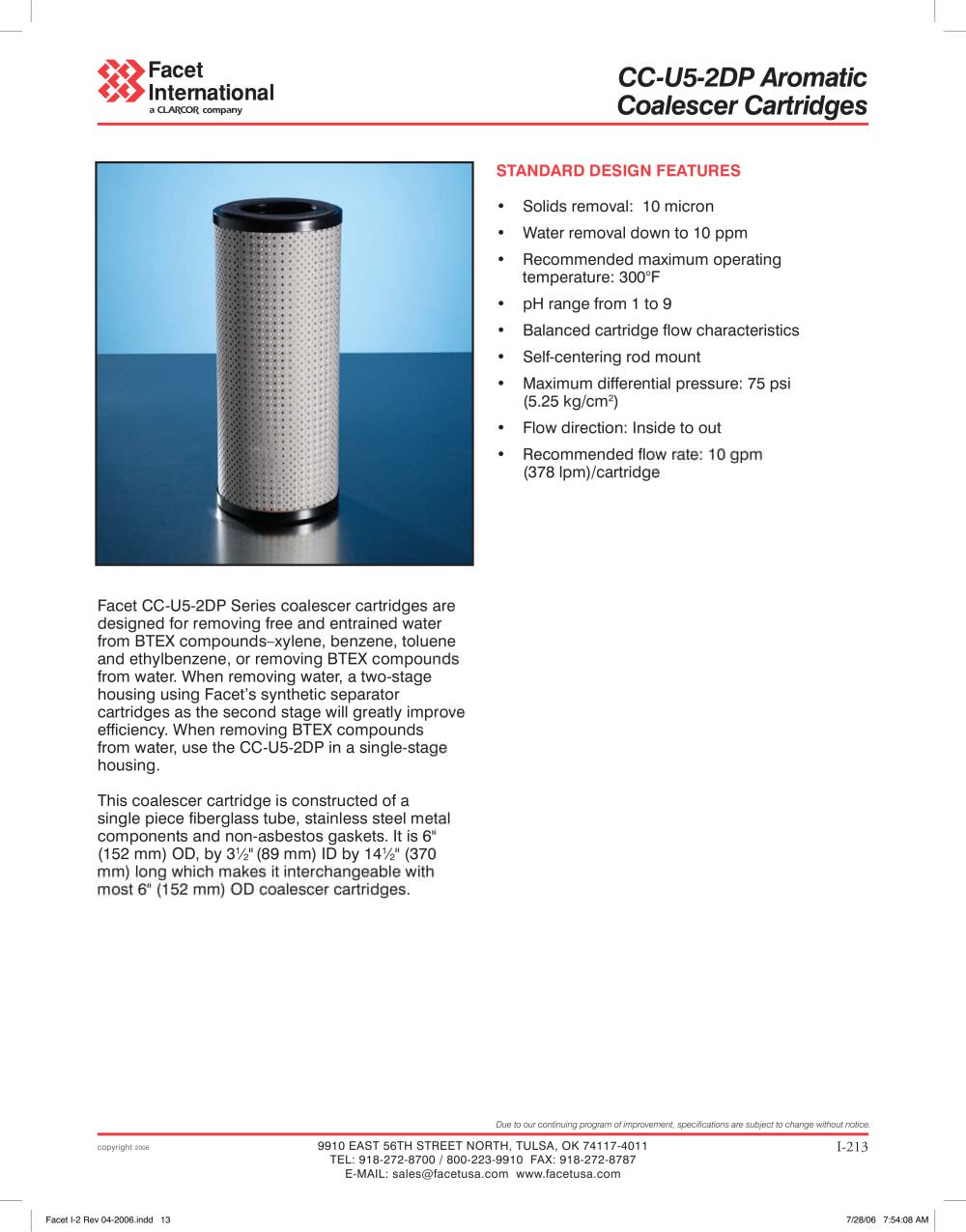

CC-U5-2DP aromatic coalescer cartridges - Facet International - #1

Text version of the page

Due to our continuing program of improvement, specifications are subject to change without notice. copyright 2006 9910 EAST 56TH STREET NORTH, TULSA, OK 74117-4011 TEL: 918-272-8700 / 800-223-9910 FAX: 918-272-8787 E-MAIL: sales@facetusa.com www.facetusa.com CC-U5-2DP Aromatic Coalescer Cartridges Facet CC-U5-2DP Series coalescer cartridges are designed for removing free and entrained water from BTEX compounds–xylene, benzene, toluene and ethylbenzene, or removing BTEX compounds from water. When removing water, a two-stage housing using Facet’s synthetic separator cartridges as the second stage will greatly improve efficiency. When removing BTEX compounds from water, use the CC-U5-2DP in a single-stage housing. This coalescer cartridge is constructed of a single piece fiberglass tube, stainless steel metal components and non-asbestos gaskets. It is 6" (152 mm) OD, by 31..2" (89 mm) ID by 141..2" (370 mm) long which makes it interchangeable with most 6" (152 mm) OD coalescer cartridges. STANDARD DESIGN FEATURES • Solids removal: 10 micron • Water removal down to 10 ppm • Recommended maximum operating temperature: 300°F • pH range from 1 to 9 • Balanced cartridge flow characteristics • Self-centering rod mount • Maximum differential pressure: 75 psi (5.25 kg/cm2) • Flow direction: Inside to out • Recommended flow rate: 10 gpm (378 lpm)/cartridge I-213 Facet I-2 Rev 04-2006.indd 13 7/28/06 7:54:08 AM
