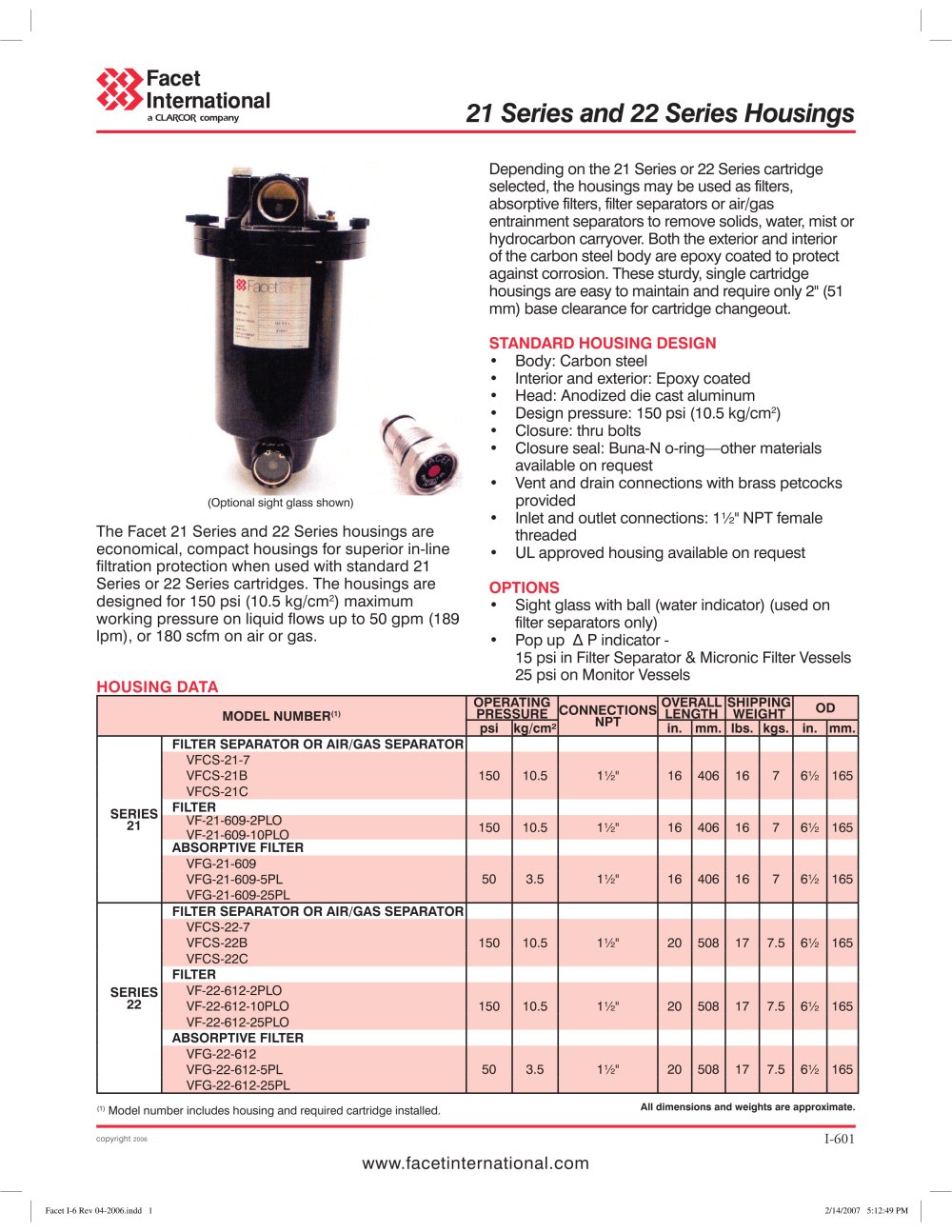

The Facet 21 Series and 22 Series
housings are
economical, compact
housings for superior in-line
filtration protection when used with standard 21
Series or 22 Series cartridges. The
housings are
designed for 150 psi (10.5 kg/cm2) maximum
working pressure on liquid flows up to 50 gpm (189
lpm), or 180 scfm on air or gas.
Depending on the 21 Series or 22 Series cartridge
selected, the
housings may be used as filters,
absorptive filters, filter
separators or air/gas
entrainment
separators to remove solids, water, mist or
hydrocarbon carryover. Both the exterior and interior
of the carbon steel body are epoxy coated to protect
against corrosion. These sturdy, single cartridge
housings are easy to maintain and require only 2" (51
mm) base clearance for cartridge changeout.
STANDARD HOUSING DESIGN
• Body: Carbon steel
• Interior and exterior: Epoxy coated
• Head: Anodized die cast aluminum
• Design pressure: 150 psi (10.5 kg/cm2)
• Closure: thru bolts
• Closure seal: Buna-N o-ring—other materials
available on request
• Vent and drain connections with brass petcocks
provided
• Inlet and outlet connections: 1½" NPT female
threaded
• UL approved
housing available on request
OPTIONS
• Sight glass with ball (water indicator) (used on
filter
separators only)
.... ..............................................
15 psi in Filter Separator & Micronic Filter Vessels
25 psi on Monitor Vessels
21 Series and 22 Series Housings
MODEL NUMBER(1)
OPERATING
PRESSURE CONNECTIONS
NPT
OVERALL
LENGTH
SHIPPING
WEIGHT OD
psi kg/cm² in. mm. lbs. kgs. in. mm.
SERIES
21
FILTER SEPARATOR OR AIR/GAS SEPARATOR
VFCS-21-7
VFCS-21B 150 10.5 1½" 16 406 16 7 6½ 165
VFCS-21C
FILTER
VF-21-609-2PLO
VF-21-609-10PLO
150 10.5 1½" 16 406 16 7 6½ 165
ABSORPTIVE FILTER
VFG-21-609
VFG-21-609-5PL 50 3.5 1½" 16 406 16 7 6½ 165
VFG-21-609-25PL
SERIES
22
FILTER SEPARATOR OR AIR/GAS SEPARATOR
VFCS-22-7
VFCS-22B 150 10.5 1½" 20 508 17 7.5 6½ 165
VFCS-22C
FILTER
VF-22-612-2PLO
VF-22-612-10PLO 150 10.5 1½" 20 508 17 7.5 6½ 165
VF-22-612-25PLO
ABSORPTIVE FILTER
VFG-22-612
VFG-22-612-5PL 50 3.5 1½" 20 508 17 7.5 6½ 165
VFG-22-612-25PL
HOUSING DATA
(1) Model number includes
housing and required cartridge installed. All dimensions and weights are approximate.
I-601
(Optional sight glass shown)
