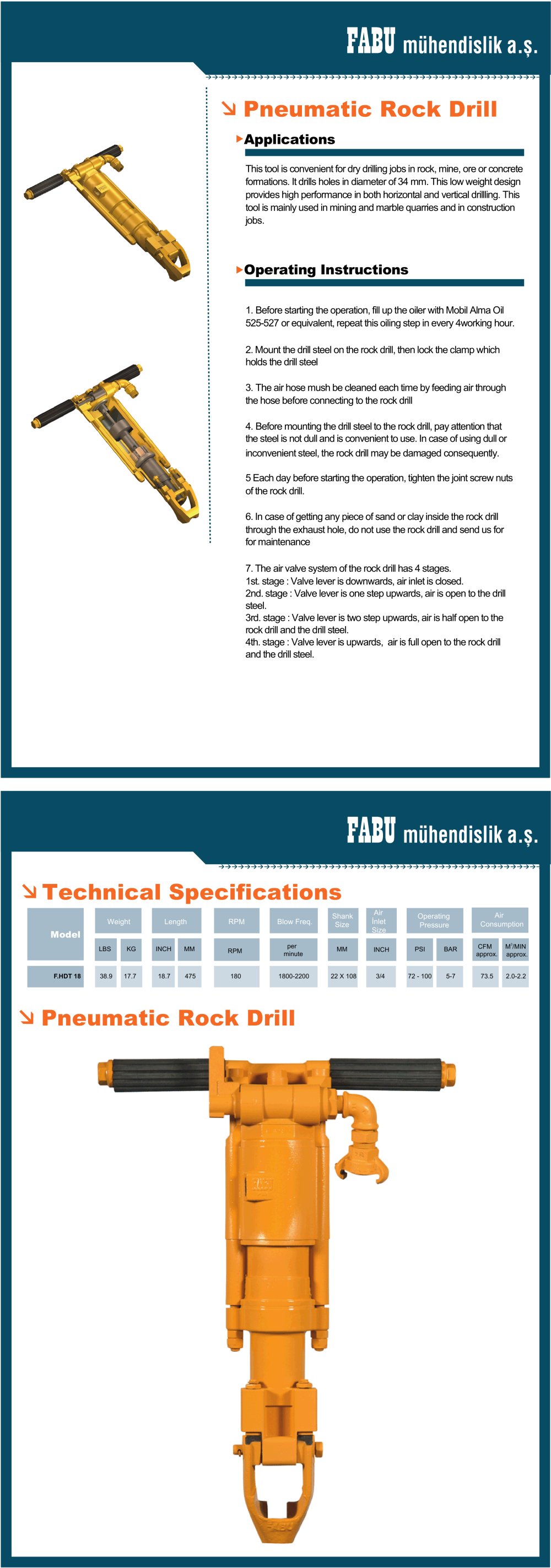

Pneumatic Rock Drill Pneumatic Rock Drill

Applications

This tool is convenient for dry drilling jobs in rock, mine, ore or concrete formations. It drills holes in diameter of 34 mm. This low weight design provides high performance in both horizontal and vertical drillling. This tool is mainly used in mining and marble quarries and in construction jobs.1. Before starting the operation, fill up the oiler with Mobil Alma Oil525-527 or equivalent, repeat this oiling step in every 4working hour. 2. Mount the drill steel on the rock drill, then lock the clamp whichholds the drill steel 3. The air hose mush be cleaned each time by feeding air throughthe hose before connecting to the rock drill4. Before mounting the drill steel to the rock drill, pay attention that the steel is not dull and is convenient to use. In case of using dull or 5 Each day before starting the operation, tighten the joint screw nutsof the rock drill. 6. In case of getting any piece of sand or clay inside the rock drill through the exhaust hole, do not use the rock drill and send us for for maintenance7. The air valve system of the rock drill has 4 stages.1st. stage : Valve lever is downwards, air inlet is closed. 2nd. stage : Valve lever is one step upwards, air is open to the drill steel.3rd. stage : Valve lever is two step upwards, air is half open to the rock drill and the drill steel. 4th. stage : Valve lever is upwards, air is full open to the rock drill and the drill steel.

Operating Instructions

inconvenient steel, the rock drill may be damaged consequently.

Technical Specifications

Air Ä°nletSize Operating PressureSize Air Consumption WeightLengthRPMHava TüketimiBlow Freq.Shank

Model
