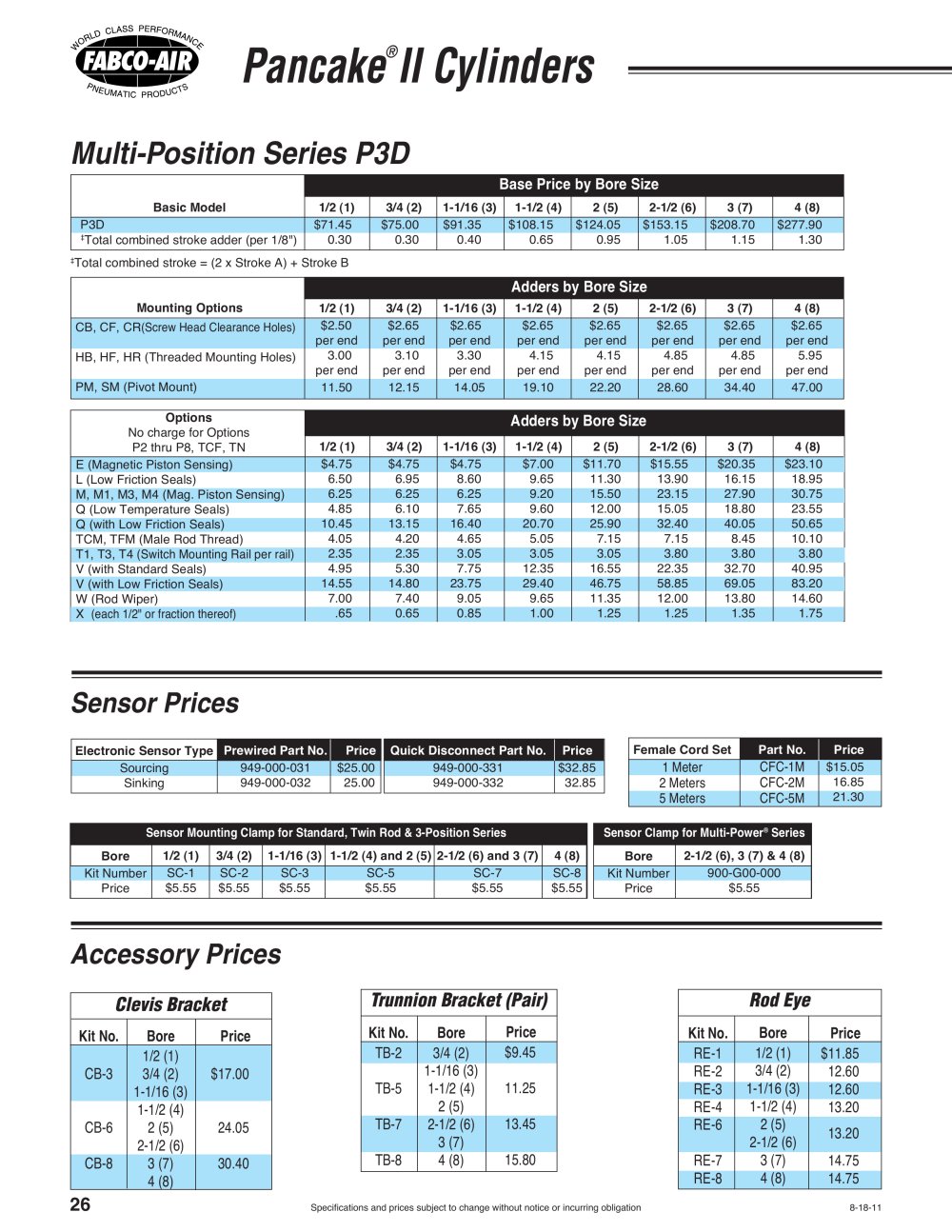

Pancake

®

FABCO-AIR
, Inc. • 3716 N.E. 49th Avenue • Gainesville, FL 32609 • Tel (352) 373-3578• Fax (352) 375-8024 • E-Mail: fabco@fabco-air.com • Web Site: www.fabco-air.com

II Cylinders

Fabco-Air Product Catalog Library

Cylinders, Valves &Accessories Cat. CV9 Linear SlidesCatalog LS-03 Pneumatic GrippersCatalog GR-8 Describes Pancake
® ,Square 1
® Line includes6 families of slides, pick& place units, and thin parts placers. 5/16" to4" bores. Guide shafts1/4" to 1-1/2". • SPG & LPG paralleljaw motion with strokesfrom 1/4" to 24" & forcesto 402 lbs. • GR & GS angular jaw styles withon-the-fly adjustment. , Longstroke™,Multi-Power
® , andHiPower™, cylinder lines.Also details valves, air-over-oil tanks, boosters and accessories. Global Series™Air Cylinders Air Preparation - FRLsCatalog #FRL-06 Swing ClampsBulletin #SC-DB04 Cat. GC-15 Widest choice of modelsand options. Features non-lube service to 150 psi. Bores 12mm to 100mm• Strokes 5mm - 150mm• NPT or Metric ports Broad line with port sizesfrom 1/8 NPT to 1 NPTincludes new 3-way slide valves. Modular assem-bly. New 3-way lock out/tag out valves for safe equipment maintenance. Clamp arm rotates 90 ° asit extends away from theworkpiece. Features standard magnetic piston. Stainless Steel BodyAir CylindersCatalog SSB-03 Multi-Power
® Stopper CylindersBulletin #ST-DIX04 Air PressesCatalog FP16 Standard magnetic piston and a wide selection of styles. Roller direction isadjustable. Magneticsensors can be mounted on body. Exact interchange inbores from 5/16" to 3",strokes to 32". Popularoptions includes magnetic piston, non-rotating, andposition feedback. Details the powerful lineof precision, force-multiplying air presses.Deliver forces to 11,000 pounds. NFPA InterchangeableAir CylindersCatalog NF-6 Dual Funcion SlidesBulletin EDF-10 Specialty Valvesand Control ValvesBulletin #14CAN Either of two slide styles(gantry or thruster) canbe made from a singleset of parts. Users can inventory less parts andassemble styles asneeded. All the desirable NFPAmounts. Bores from 1-1/2"to 6"; strokes to 99". Aluminum or high strengthcomposite cylinder body.Magnetic position sensing. • Composite body solenoidvalves in 2 or 3-way, N/Oor N/C, and manifoldable configurations. • ProcessSolenoid valves. • 5 Ported,3 position, 1/4 NPT 4-way air valves.

26

2-20-06 Specifications subject to change without notice or incurring obligation
