Multi-Position Series P3D

FABCO-AIR
, Inc. • Fax (352) 375-8024 • E-Mail: fabco@fabco-air.com • Web Site: www.fabco-air.com

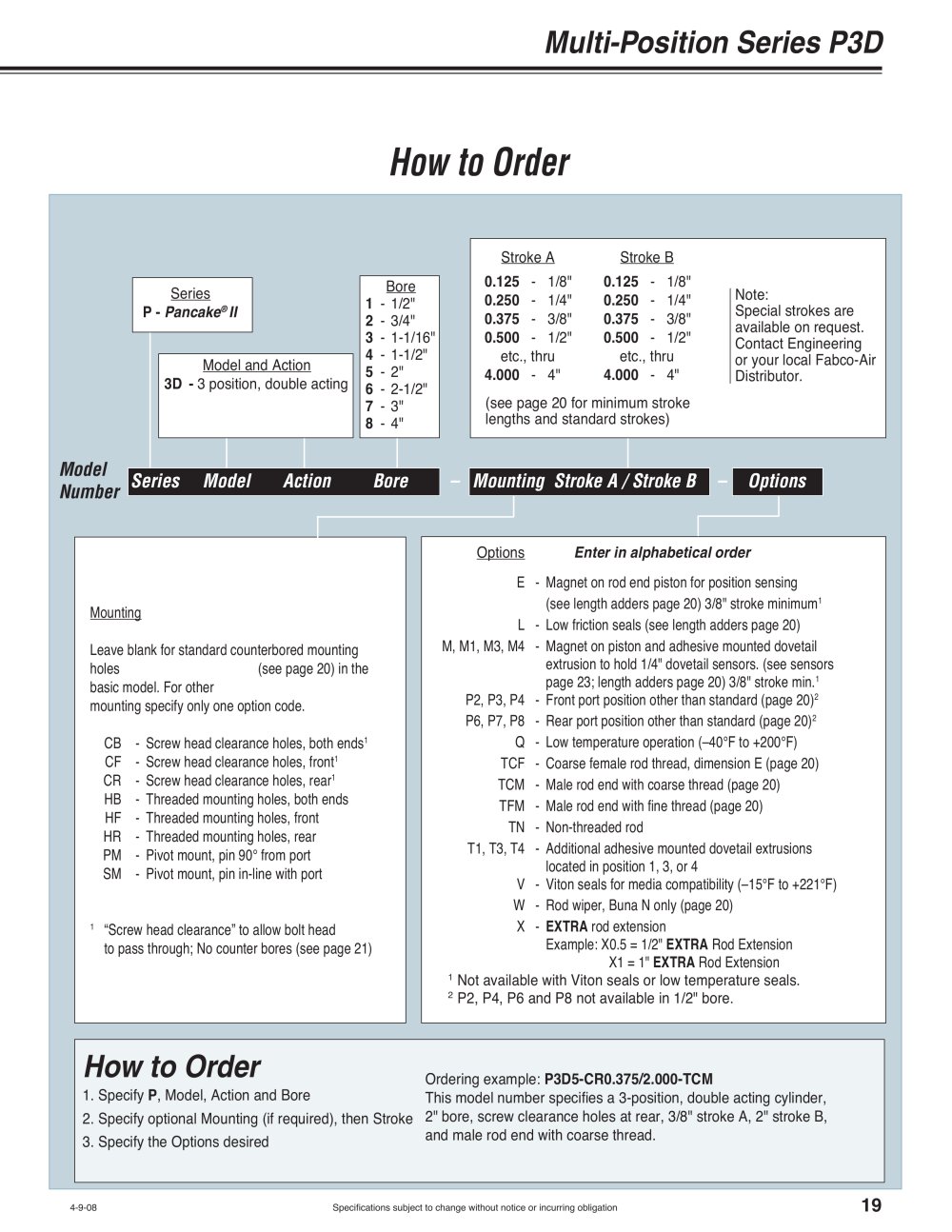

Pancake® II - 11741 How to Order

Stroke A Stroke B 0.125 -1/8" 0.125 -1/8" Series Bore 0.250 -1/4" 0.250 -1/4" P - Pancake
® II 1 -1/2" 2 -3/4" 0.375 -3/8" 0.375 -3/8" 3 -1-1/16" 0.500 -1/2"etc., thru 0.500 -1/2"etc., thru Model and Action 4 -1-1/2" 3D- 3 position, double acting 5 -2" 4.000 -4" 4.000 -4"(see page 20 for minimum strokelengths and standard strokes)Note:Special strokes are available on request. Contact Engineering or your local Fabco-Air Distributor. 6 -2-1/2" 7 -3" 8 -4"

ModelNumber Series Model Action BoreMounting Stroke A / Stroke B Options––

Options Enter in alphabetical order E-Magnet on rod end piston for position sensing(see length adders page 20) 3/8" stroke minimum
1 MountingCounterbored mounting holes are standard in thebasic model and need not be specified. For other mounting specify only one option code.CB-Screw clearance holes, both ends L-Low friction seals (see length adders page 20)M, M1, M3, M4-Magnet on piston and adhesive mounted dovetailextrusion to hold 1/4" dovetail sensors. (see sensors page 23; length adders page 20) 3/8" stroke min.
1 P2, P3, P4-Front port position other than standard (page 20)
2 P6, P7, P8-Rear port position other than standard (page 20)
2 1 Q-Low temperature operation (–40 ° F to +200 ° F)TCF-Coarse female rod thread, dimension E (page 20)TCM-Male rod end with coarse thread (page 20)TFM-Male rod end with fine thread (page 20)TN-Non-threaded rodT1, T3, T4-Additional adhesive mounted dovetail extrusionslocated in position 1, 3, or 4V-Viton seals for media compatibility (–15 CF-Screw clearance holes, front
1 CR-Screw clearance holes, rear
1 HB-Threaded mounting holes, both endsHF-Threaded mounting holes, frontHR-Threaded mounting holes, rearPM-Pivot mount, pin 90 ° from portSM-Pivot mount, pin in-line with port ° F to +225 ° F)W-Rod wiper, Buna N only (page 20)X-
1 “Screw clearance” to allow bolt head to pass through; No counter bores EXTRA rod extensionExample: X0.5 = 1/2" EXTRA Rod Extension X1 = 1" EXTRA Rod Extension
1 Not available with Viton seals or low temperature seals.
2 P2, P4, P6 and P8 not available in 1/2" bore. P3D5-CR0.375/2.000-TCM

How to Order

This model number specifies a 3-position, double acting, cylinder ,2" bore, screw clearance holes at rear, 3/8" stroke A, 2" stroke B, and male rod end with coarse thread. 1. Specify P , Model, Action and Bore2. Specify the Mounting and Stroke 3. Specify the Options desiredOrdering example:
