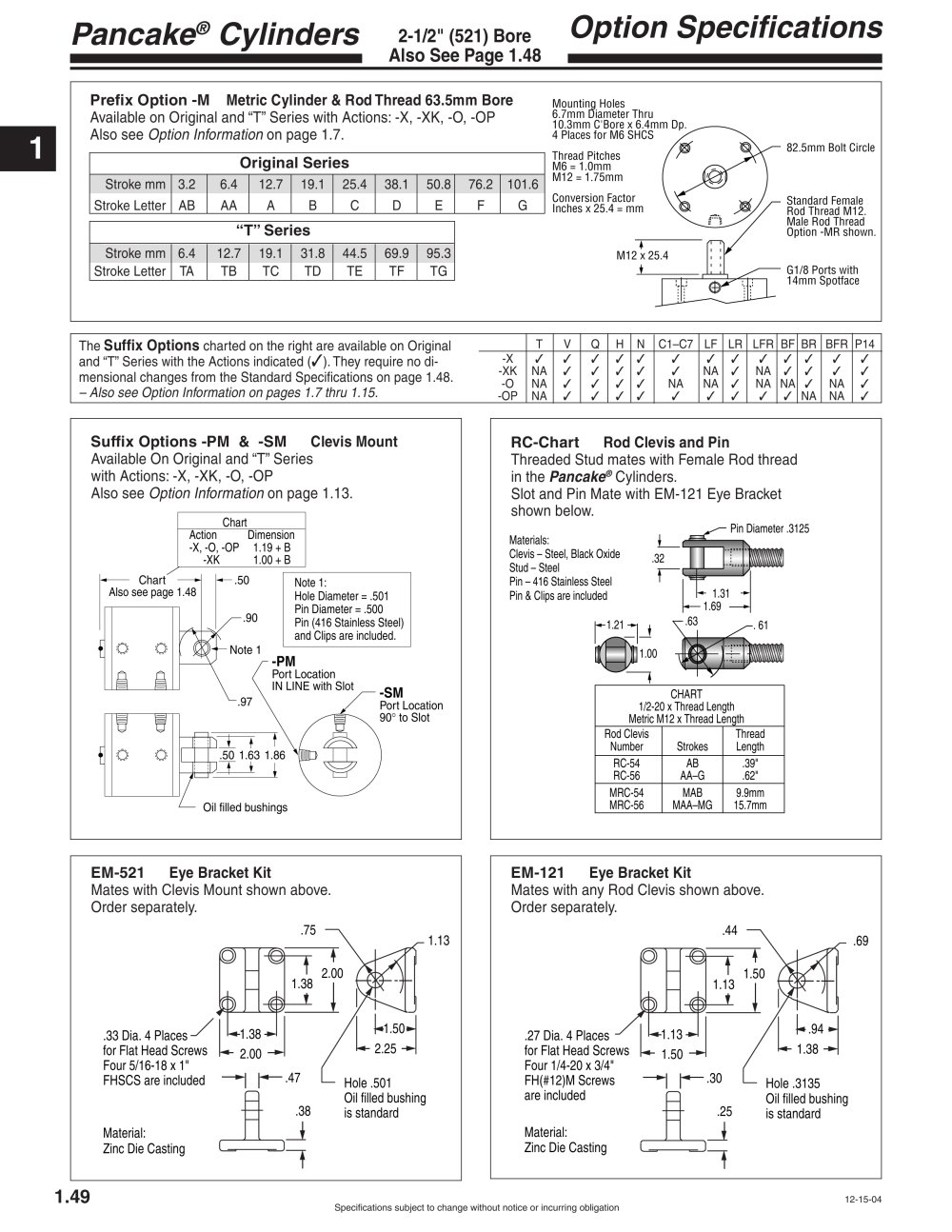

Option Specifications

Pancake?® Cylinders

2-1/2" (521) Bore Also See Page 1.48

Prefix Option -M Metric Cylinder & Rod Thread 63.5mm Bore

Available on Original and "T" Series with Actions: -X, -XK, -0, -OP Also see Option Information on page 1.7.

Mounting Holes 6.7mm Diameter Thru 10.3mm C'Bore x 6.4mm Dp. 4 Places for M6SHCS

82.5mm Bolt Circle

Thread Pitches M6 = 1.0mm M12 = 1.75mm


Original Series
Stroke mm	3.2	6.4	12.7	19.1	25.4	38.1	50.8	76.2	101.6
Stroke Letter	AB	AA	A	B	C	D	E	F	G
"T" Series
Stroke mm	6.4	12.7	19.1	31.8	44.5	69.9	95.3
Stroke Letter	TA	TB	TC	TD	TE	TF	TG

Conversion Factor Inches x 25.4 = mm

Standard Female Rod Thread M12. Male Rod Thread Option -MR shown.


	M12x25.4 ♦		t—r j_l

G1/8 Ports with 14mm Spotface

The Suffix Options charted on the right are available on Original and "T" Series with the Actions indicated (/). They require no di-

C1-C7

LFR

BFR

P14

-X

mensional changes from the Standard Specifications on page 1.48.

-XK -O

NA NA

/ NA

NA NA

/ NA

- Also see Option Information on pages 1.7 thru 1.15.

-OP

Suffix Options -PM & -SM Clevis Mount

Available On Original and "T" Series

with Actions: -X, -XK, -O, -OP

Also see Option Information on page 1.13.

RC-Chart Rod Clevis and Pin

Threaded Stud mates with Female Rod thread in the Pancaked Cylinders. Slot and Pin Mate with EM-121 Eye Bracket shown below.

Chart

Pin Diameter .3125

Action Dimension -X,-0,-0P 1.19+ B -XK 1.00 + B

Materials:

Clevis-Steel, Black Oxide Stud - Steel

Pin-416 Stainless Steel Pin & Clips are Included

Note 1:

Hole Diameter = .501 Pin Diameter = .500 Pin (416 Stainless Steel) and Clips are included.

-PM

Port Location LINE with Slot


	CHART
1/2-20 x Thread Length
Metric h	12 x Thread Length
Rod Clevis		Thread
Number	Strokes	Length
RC-54	AB	.39"
RC-56	AA-G	.62"
MRC-54	MAB	9.9mm
MRC-56	MAA-MG	15.7mm

-SM

Port Location 90° to Slot

Oil filled bushings

EM-521 Eye Bracket Kit

Mates with Clevis Mount shown above. Order separately.

EM-121 Eye Bracket Kit

Mates with any Rod Clevis shown above. Order separately.

1.13

.69

.33 Dia. 4 Places^ for Flat Head Screws Four 5/16-18x1" FHSCS are included

.27 Dia. 4 Places ^ for Flat Head Screws Four 1/4-20x3/4" FH(#12)M Screws are included

Material:

Zinc Die Casting

.47

.30

Hole .501

Oil filled bushing

is standard

Hole .3135 Oil filled bushing is standard

I I

.38

.25

Material:

Zinc Die Casting

^J1

12-15-04

Specifications subject to change without notice or incurring obligation
