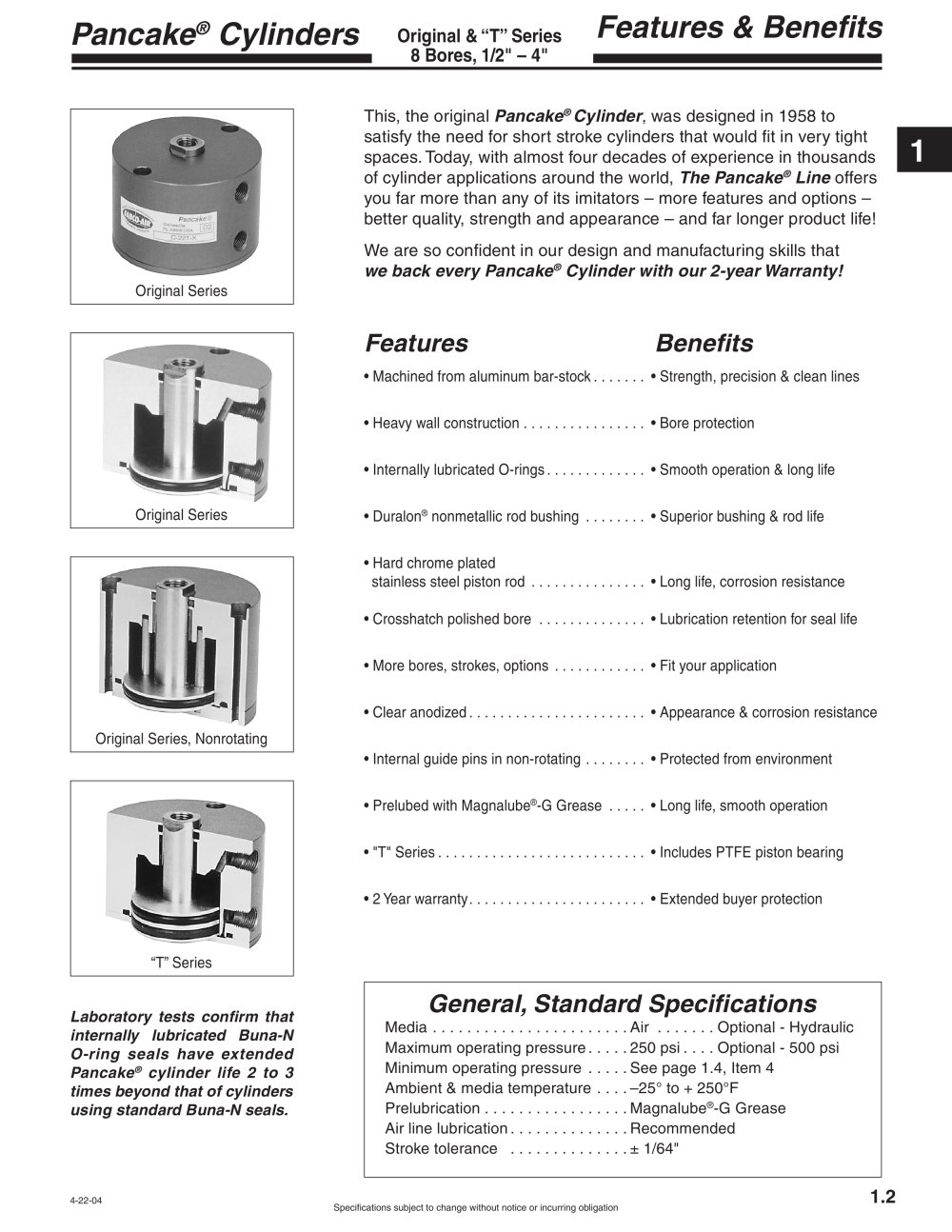

| Features & Benefits | ||||||||||||||||||||||||||||
| Pancake® Cylinders | ||||||||||||||||||||||||||||
| Original & "T" Series 8 Bores, 1/2" - 4" | ||||||||||||||||||||||||||||
| This, the original Pancake® Cylinder, was designed in 1958 to satisfy the need for short stroke cylinders that would fit in very tight spaces. Today, with almost four decades of experience in thousands of cylinder applications around the world, The Pancake® Line offers you far more than any of its imitators - more features and options -better quality, strength and appearance - and far longer product life! We are so confident in our design and manufacturing skills that we back every Pancake® Cylinder with our 2-year Warranty! | ||||||||||||||||||||||||||||
| Features Benefits • Machined from aluminum bar-stock....... • Strength, precision & clean lines • Heavy wall construction................ • Bore protection • Internally lubricated O-rings............. • Smooth operation & long life • Duralon® nonmetallic rod bushing........ • Superior bushing & rod life • Hard chrome plated stainless steel piston rod............... • Long life, corrosion resistance • Crosshatch polished bore.............. • Lubrication retention for seal life • More bores, strokes, options............ • Fit your application • Clear anodized....................... • Appearance & corrosion resistance • Internal guide pins in non-rotating........ • Protected from environment • Prelubed with Magnalube®-G Grease..... • Long life, smooth operation • "T" Series........................... • Includes PTFE piston bearing • 2 Year warranty....................... • Extended buyer protection | ||||||||||||||||||||||||||||
| Original Series | ||||||||||||||||||||||||||||
| Original Series, Nonrotating | ||||||||||||||||||||||||||||
| "T" Series | ||||||||||||||||||||||||||||
| General, Standard Specifications Media.......................Air.......Optional - Hydraulic Maximum operating pressure.....250 psi.... Optional - 500 psi Minimum operating pressure.....See page 1.4, Item 4 Ambient & media temperature .... -25° to + 250°F Prelubrication.................Magnalube®-G Grease Air line lubrication..............Recommended Stroke tolerance ..............± 1/64" | ||||||||||||||||||||||||||||
| 1.2 | ||||||||||||||||||||||||||||
| 4-22-04 | ||||||||||||||||||||||||||||
| Specifications subject to change without notice or incurring obligation | ||||||||||||||||||||||||||||
