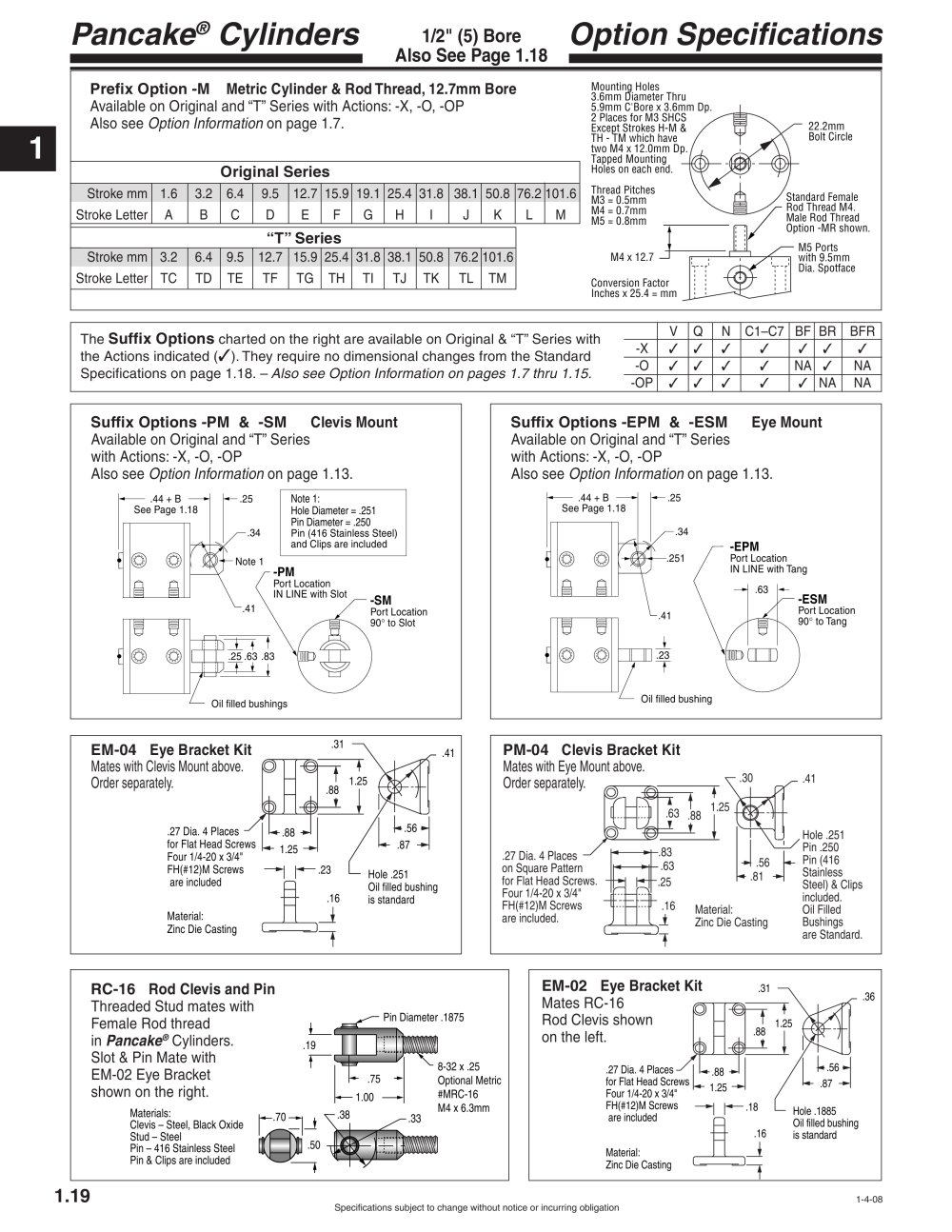

Pancake^ Cylinders

Option Specifications

1/2" (5) Bore Also See Page 1.18

Mounting Holes 3.6mm Diameter Thru 5.9mm C'Borex3.6mm Dp 2 Places forM3SHCS Except Strokes H-M TH-TM which have two M4x12.0mm Dp Tapped Mounting Holes on each end

Thread Pitches M3 = 0.5mm M4 = 0.7mm M5 = 0.8mm

Prefix Option -M Metric Cylinder & Rod Thread, 12.7mm Bore

Available on Original and "T" Series with Actions: -X, -0, -OP Also see Option Information on page 1.7.

22.2mm Bolt Circle

Original Series


Stroke mm	1.6	3.2	6.4	9.5	12.7	15.9	19.1	25.4	31.8	38.1	50.8	76.2	101.6
Stroke Letter	A	B	C	D	E	TI	G	H	I	J	K	L	M
				"T	' Series
Stroke mm	3.2	6.4	9.5	12.7	15.9	25.4	31.8	38.1	50.8	76.2	101.6
Stroke Letter	TC	TD	TE	TF	TG	TH	TI	TJ	TK	TL	TM

Standard Female Rod Thread M4. Male Rod Thread Option -MR shown.

M5 Ports with 9.5mm Dla. Spotface

M4x12.7 —'

Conversion Factor Inches x 25.4 = mm


	V	Q	N	C1-C7	BF	BR	BFR
-X	/	/	/	/	/	/	/
-0	/	/	/	/	NA	/	NA
-OP	/	/	/	/	/	NA	NA

The Suffix Options charted on the right are available on Original & "T" Series with the Actions indicated {/). They require no dimensional changes from the Standard Specifications on page 1.18. - Also see Option Information on pages 1.7 thru 1.15.

Suffix Options -PM & -SM Clevis Mount

Available on Original and "T" Series

with Actions: -X, -O, -OP

Also see Option Information on page 1.13.

Suffix Options-EPM & -ESM Eye Mount

Available on Original and "T" Series

with Actions: -X, -O, -OP

Also see Option Information on page 1.13.

Note 1:

Hole Diameter = .251 Pin Diameter = .250 .34 Pin (416 Stainless Steel) and Clips are included

-EPM

Port Location LINE with Tang

-ESM

Port Location 90° to Tang

-SM

Port Location 90° to Slot

Oil filled bushing

Oil filled bushings

EM-04 Eye Bracket Kit

Mates with Clevis Mount above. Order separately.

PM-04 Clevis Bracket Kit

Mates with Eye Mount above. Order separately.

.27 Dia. 4 Places for Flat Head Screws Four 1/4-20 x 3/4" FH(#12)M Screws are included

Hole .251 Pin .250 Pin (416 Stainless Steel) & Clips included. OH Filled Bushings are Standard,

,27 Dla. 4 Places on Square Pattern for Flat Head Screws, Four 1/4-20x3/4" FH(#12)M Screws are Included,


	-1		"•—.23
			.16

Hole .251

OH filled bushing

is standard

Material:

Zinc Die Casting

Material:

Zinc Die Casting

EM-02 Eye Bracket Kit

Mates RC-16 Rod Clevis shown on the left.

RC-16 Rod Clevis and Pin

Threaded Stud mates with Female Rod thread in Pancake⁹ Cylinders. Slot & Pin Mate with EM-02 Eye Bracket shown on the right.

Materials

Clevis-Steel, Black Oxide Stud - Steel

Pin-416 Stainless Steel Pin & Clips are Included

Pin Diameter .1875

■32 x .25 Optional Metric #MRC-16 M4x 6.3mm

.27 Dla. 4 Places^ for Flat Head Screws Four 1/4-20 x3/4"


	^—"1 I"*^- ¹⁸	Hole .1885
	n	Oil filled bushing
	H .16	Is standard
	JLa
	'—^-f

FH(#12)M Screws are Included

Material:

Zinc Die Casting

1.19

1-4-08

Specifications subject to change without notice or incurring obligation
