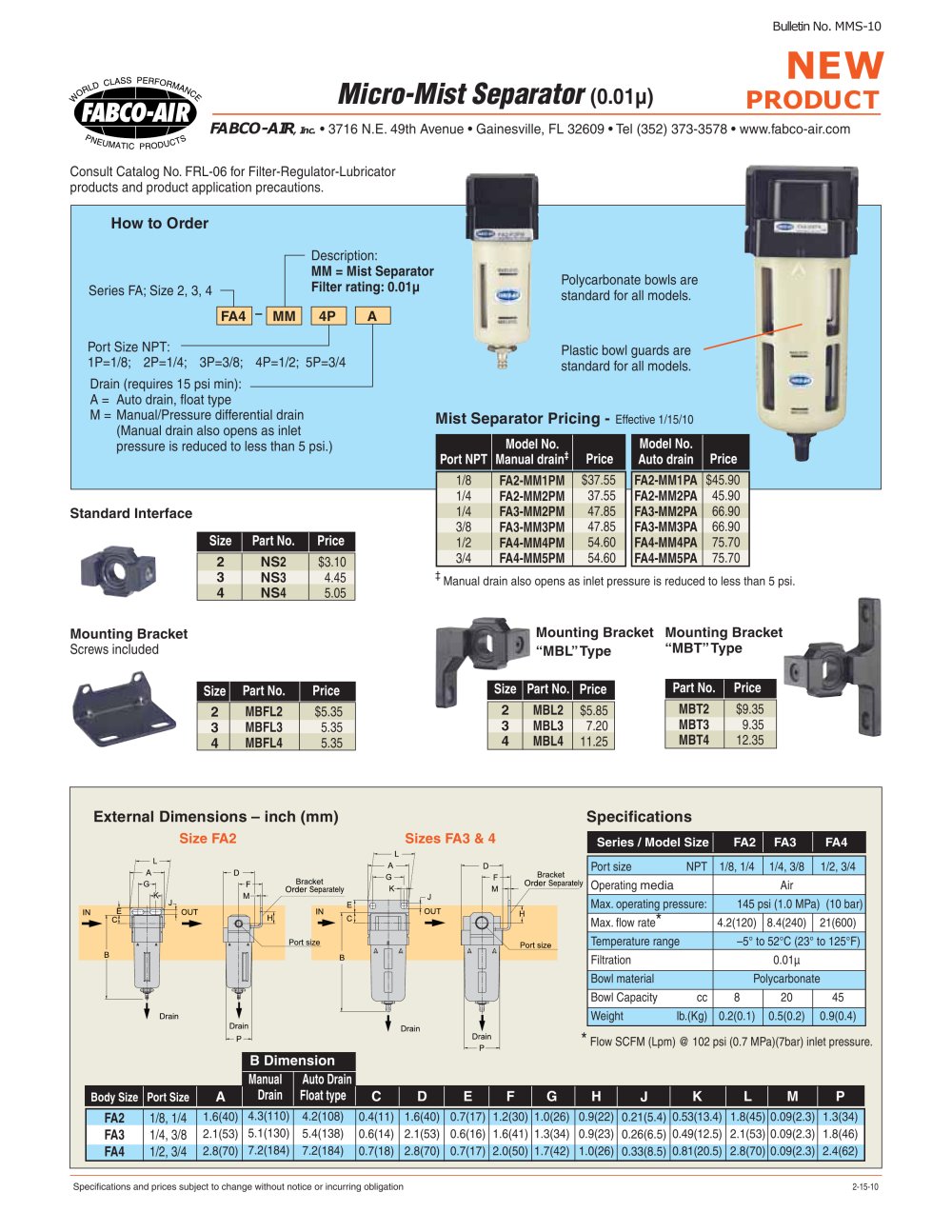

Specifi cations and prices subject to change without notice or incurring obligation Page 1 NEW PRODUCT Bulletin No. MMS-10 External Dimensions – inch (mm) Micro-Mist Separator (0.01ì) FABCO-AIR, Inc. • 3716 N.E. 49th Avenue • Gainesville, FL 32609 • Tel (352) 373-3578 • www.fabco-air.com 2-15-10 Size FA2 Port Size 1/8, 1/4 1/4, 3/8 1/2, 3/4 A 1.6(40) 2.1(53) 2.8(70) Body Size FA2 FA3 FA4 C 0.4(11) 0.6(14) 0.7(18) D 1.6(40) 2.1(53) 2.8(70) E 0.7(17) 0.6(16) 0.7(17) F 1.2(30) 1.6(41) 2.0(50) G 1.0(26) 1.3(34) 1.7(42) H 0.9(22) 0.9(23) 1.0(26) J 0.21(5.4) 0.26(6.5) 0.33(8.5) K 0.53(13.4) 0.49(12.5) 0.81(20.5) L 1.8(45) 2.1(53) 2.8(70) M 0.09(2.3) 0.09(2.3) 0.09(2.3) P 1.3(34) 1.8(46) 2.4(62) Auto Drain B Dimension Manual Float type 4.2(108) 5.4(138) 7.2(184) Drain 4.3(110) 5.1(130) 7.2(184) How to Order Port Size NPT: 1P=1/8; 2P=1/4; 3P=3/8; 4P=1/2; 5P=3/4 Series FA; Size 2, 3, 4 Description: MM = Mist Separator Filter rating: 0.01ì Drain (requires 15 psi min): A = Auto drain, fl oat type M = Manual/Pressure differential drain (Manual drain also opens as inlet pressure is reduced to less than 5 psi.) FA4 – MM 4P A ‡ Manual drain also opens as inlet pressure is reduced to less than 5 psi. Plastic bowl guards are standard for all models. * Flow SCFM (Lpm) @ 102 psi (0.7 MPa)(7bar) inlet pressure. Standard Interface Price $3.10 4.45 5.05 Part No. NS2 NS3 NS4 Size 234 Price $5.85 7.20 11.25 Part No. MBL2 MBL3 MBL4 Size 234 Mounting Bracket “MBL” Type Part No. MBT2 MBT3 MBT4 Price $9.35 9.35 12.35 Mounting Bracket “MBT” Type Mounting Bracket Screws included Part No. MBFL2 MBFL3 MBFL4 Price $5.35 5.35 5.35 Size 234 Specifi cations Series / Model Size FA2 FA3 FA4 Port size NPT 1/8, 1/4 1/4, 3/8 1/2, 3/4 Operating media Air Max. operating pressure: 145 psi (1.0 MPa) (10 bar) Max. fl ow rate* 4.2(120) 8.4(240) 21(600) Temperature range –5° to 52°C (23° to 125°F) Filtration 0.01ì Bowl material Polycarbonate Bowl Capacity cc 8 20 45 Weight lb.(Kg) 0.2(0.1) 0.5(0.2) 0.9(0.4) Polycarbonate bowls are standard for all models. Sizes FA3 & 4 Consult Catalog No. FRL-06 for Filter-Regulator-Lubricator products and product application precautions. Mist Separator Pricing - Effective 1/15/10 Port NPT 1/8 1/4 1/4 3/8 1/2 3/4 Price $37.55 37.55 47.85 47.85 54.60 54.60 Model No. Auto drain FA2-MM1PA FA2-MM2PA FA3-MM2PA FA3-MM3PA FA4-MM4PA FA4-MM5PA Model No. Manual drain‡ FA2-MM1PM FA2-MM2PM FA3-MM2PM FA3-MM3PM FA4-MM4PM FA4-MM5PM Price $45.90 45.90 66.90 66.90 75.70 75.70
