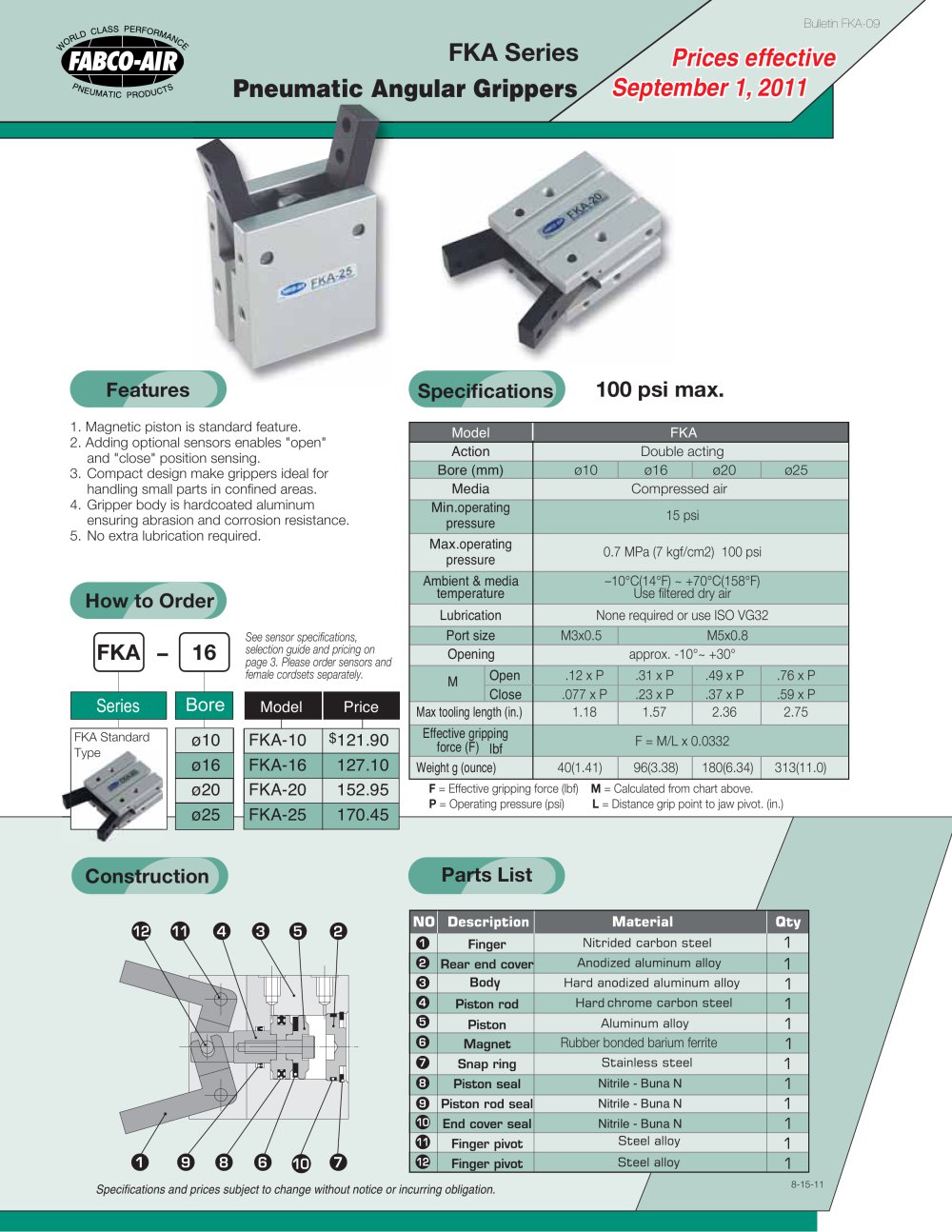

NEW PRODUCT FKA Series Bulletin FKA-09 Features 1. Magnetic piston is standard feature. 2. Adding optional sensors enables "open" and "close" position sensing. 3. Compact design make grippers ideal for handling small parts in confined areas. 4. Gripper body is hardcoated aluminum ensuring abrasion and corrosion resistance. 5. No extra lubrication required. 10-13-09 Series Bore FKA Standard Type See sensor specifications, selection guide and pricing on page 3. Please order sensors and female cordsets separately. Specifications and prices subject to change without notice or incurring obligation. Pneumatic Angular Grippers F = Effective gripping force (lbf) M = Calculated from chart above. P = Operating pressure (psi) L = Distance grip point to jaw pivot. (in.) FKA 16 Model Price ø10 ø16 ø20 ø25 How to Order Specifications Construction Parts List – FKA-10 $116.10 FKA-16 121.05 FKA-20 145.65 FKA-25 162.35 Rubber bonded barium ferrite Nitrile - Buna N Nitrile - Buna N Nitrile - Buna N 100 psi max. Model FKA Action Double acting Bore (mm) ø10 ø16 ø20 ø25 Media Compressed air Min.operating 15 psi pressure Max.operating 0.7 MPa (7 kgf/cm2) 100 psi pressure Ambient & media –10°C(14°F) ~ +70°C(158°F) temperature Use filtered dry air Lubrication None required or use ISO VG32 Port size M3x0.5 M5x0.8 Opening approx. -10°~ +30° M Open .12 x P .31 x P .49 x P .76 x P Close .09 x P .23 x P .37 x P .59 x P Max tooling length (in.) 1.18 1.57 2.36 2.75 Effective gripping F = M/L x 0.0332 force (F) lbf Weight g (ounce) 40(1.41) 96(3.38) 180(6.34) 313(11.0)
