930 AUTOMATIC SLIDING DOOR
6Pages

{{requestButtons}}

Catalog excerpts

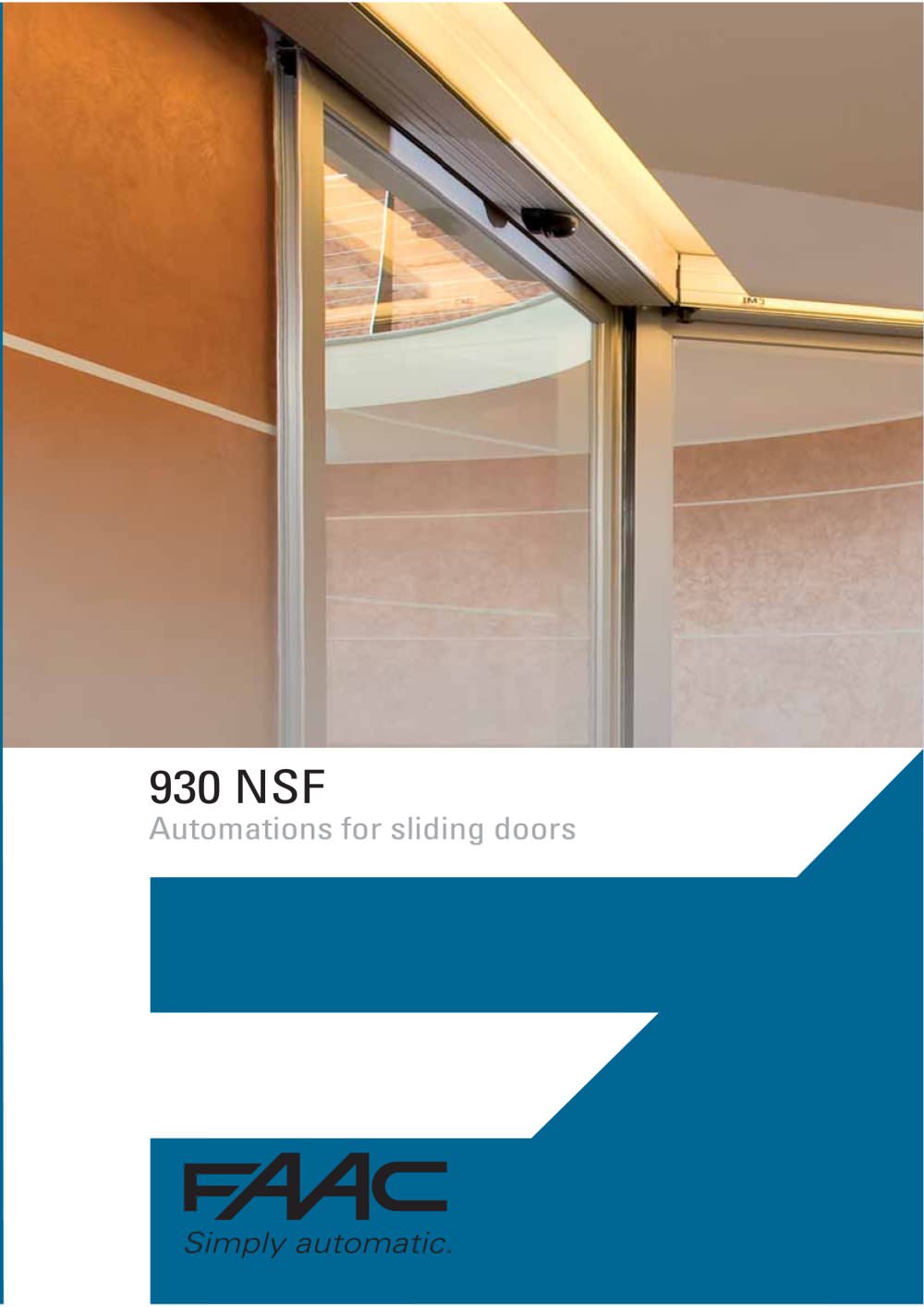

930 AUTOMATIC SLIDING DOOR - 1

930 NSF Automations for sliding doors

Open the catalog to page 1
930 AUTOMATIC SLIDING DOOR - 2

930 NSF Automations for sliding doors single leaf, two leaves continuous duty Architectural design Thanks to their sober elegance and compact dimensions, FAAC 930 NSF automations can be adapted to every type of architectural environment, even in limited space conditions. For the outmost versatility of use, the NSF Series can be adapted to sliding doors with single leaves and a maximum weight of 120 kg or with double leaves and a maximum weight of 80 kg each leaf. A 930 NSF automation also guarantees considerable energy savings as regards air-conditioning and the total removal of...

Open the catalog to page 2
930 AUTOMATIC SLIDING DOOR - 3

Accessories Self-supporting head profi le 930 NSFA1 and 930NSFA2 Electro-mechanical lock with internal release Miniswitch GLS photocell Infra-red passive sensor Microwave radar Wall-mounted and fl ush-mounted keyswitches T20/T21 with emergency release devices Profi les for glass leaf fi tting Lock monitor with activation of indicator-lights or buzzers in the event of a lock malfunction Break-out anti-panic kit The emergency batteries with charge control board guarantee the automated system to operate for 30 minutes on continuous use Compatible with the new series of FAAC TK20 and TK50 profi...

Open the catalog to page 3
930 AUTOMATIC SLIDING DOOR - 4

Technical specifi cations 930 NSF Electric power supply 230 V ac (+6%-10%) 50 (60) Hz Power consumption 100 W Frequency of use 100% Drive unit 24 V dc motor with encoder Head profi le length VP x 2 + 100 mm Drive by electro-driven toothed belt Opening/closing speed adjustable (two leaves) 20÷180 cm/s Emergency opening/closing speed adjustable Pause time adjustable from 0 to 30 s Static force 150 N (self-learning adjustment) Partial opening adustabile (two leaves) from 20 cm to total Anti-crushing device standard Photocells fail-safe standard (can be excluded) Protection class IP 23 (for...

Open the catalog to page 4
930 AUTOMATIC SLIDING DOOR - 5

PROGRAMMING DISPLAY Programming display Main functions Entering of access password Opening speed adjustment Closing speed adjustment Anti break-in function management Pause times adjustment Anti-crushing adjustment Diagnostic display Weekly calendar management Management of interlock with or without memory Selection of battery operation logics Confi guration of 3 outputs on the control unit Confi guration of 2 emergency inputs on the control unit Display of number of cycles carried out Management of 5 daily time slots SD KEEPER FUNCTIONS KEYBOARD SD Keeper functions keyboard Main functions...

Open the catalog to page 5
930 AUTOMATIC SLIDING DOOR - 6

HEADQUARTERS FAAC SpA Via Benini, 1 – 40069 Zola Predosa (BO) – Italy Tel. +39 05161724 Fax +39 051 758518 www.faacgroup.com – info@faac.it FAAC SUBSIDIARIES FAAC AG Tel. +41 52 3461721 Fax +41 52 3461723 Illnau, Switzerland www.faac.ch FAAC FRANCE Tel. +33 472218700 Fax +33 472218701 Corbas, France www.faac.fr FAAC GMBH Tel. +49 8654 49810 Fax +49 8654 498125 Freilassing, Germany www.faac.de FAAC MIDDLE EAST Dubai, Emirati Arabi www.faac.ae info@faac.ae F.A.A.C. SA Tel. +34 91 6613112 Fax +34 91 6610050 Madrid, España www.faac.es FAAC UK LTD. Tel. +44 1256 318100 Fax +44 1256 318101...

Open the catalog to page 6
