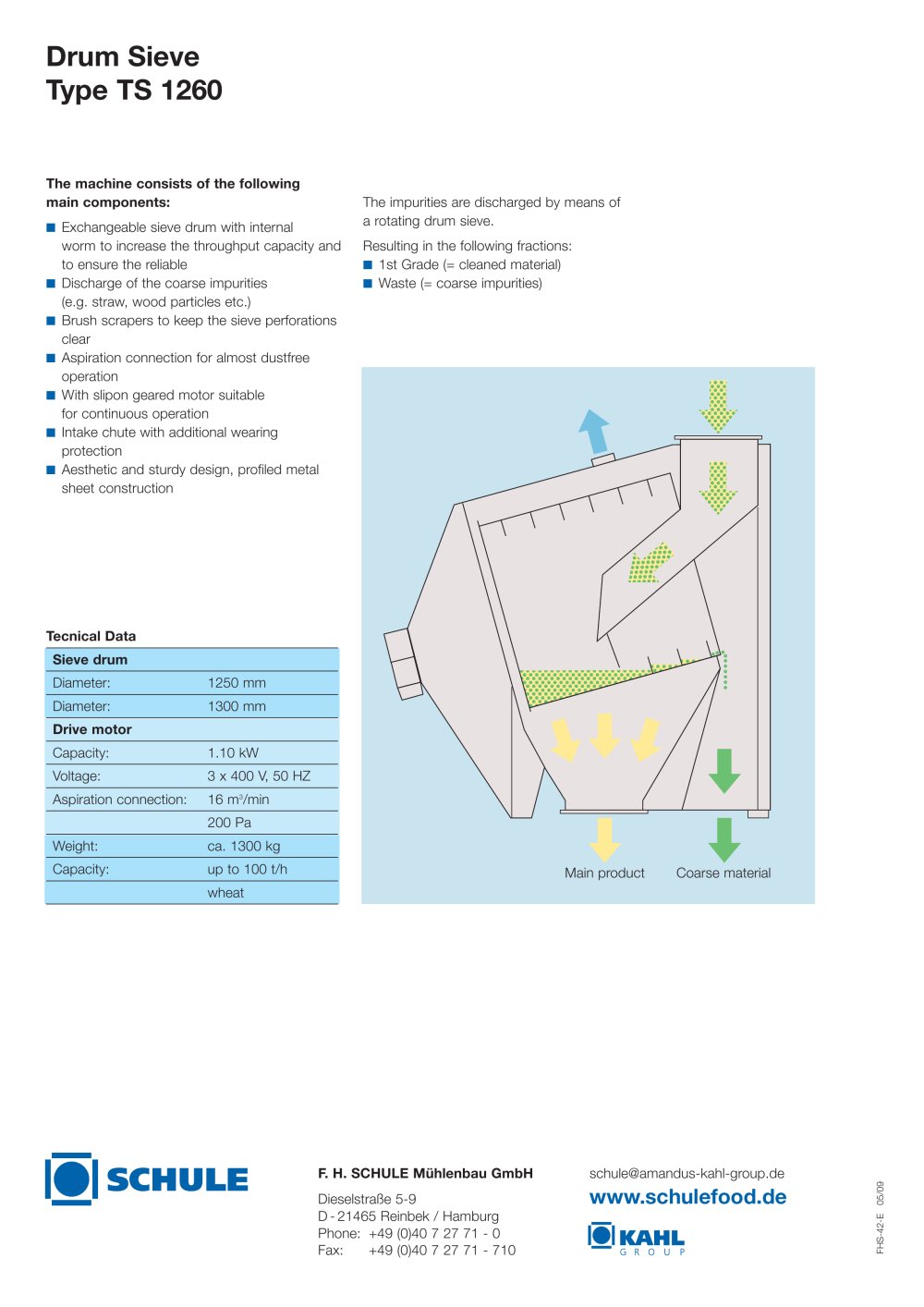

�¡ Discharge of the coarse impurities (e.g. straw, wood particles etc.) �¡ Brush scrapers to keep the sieve perforations clear �¡ Aspiration connection for almost dustfree operation �¡ With slipon geared motor suitable for continuous operation �¡ Intake chute with additional wearing protection �¡ Aesthetic and sturdy design, profiled metal sheet construction Tecnical Data Sieve drum Diameter: 1250 mm Diameter: 1300 mm Drive motor Capacity: 1.10 kW Voltage: 3 x 400 V, 50 HZ Aspiration connection: 16 m3/min 200 Pa Weight: ca. 1300 kg Capacity: up to 100 t/h wheat Main product Coarse material �¡ Waste (= coarse impurities) F. H. SCHULE Mühlenbau GmbH Dieselstraße 5-9 D- 21465 Reinbek / Hamburg Phone: +49 (0)40 7 27 71 - 0 Fax: +49 (0)40 7 27 71 - 710 schule@amandus-kahl-group. www.schulefood.
