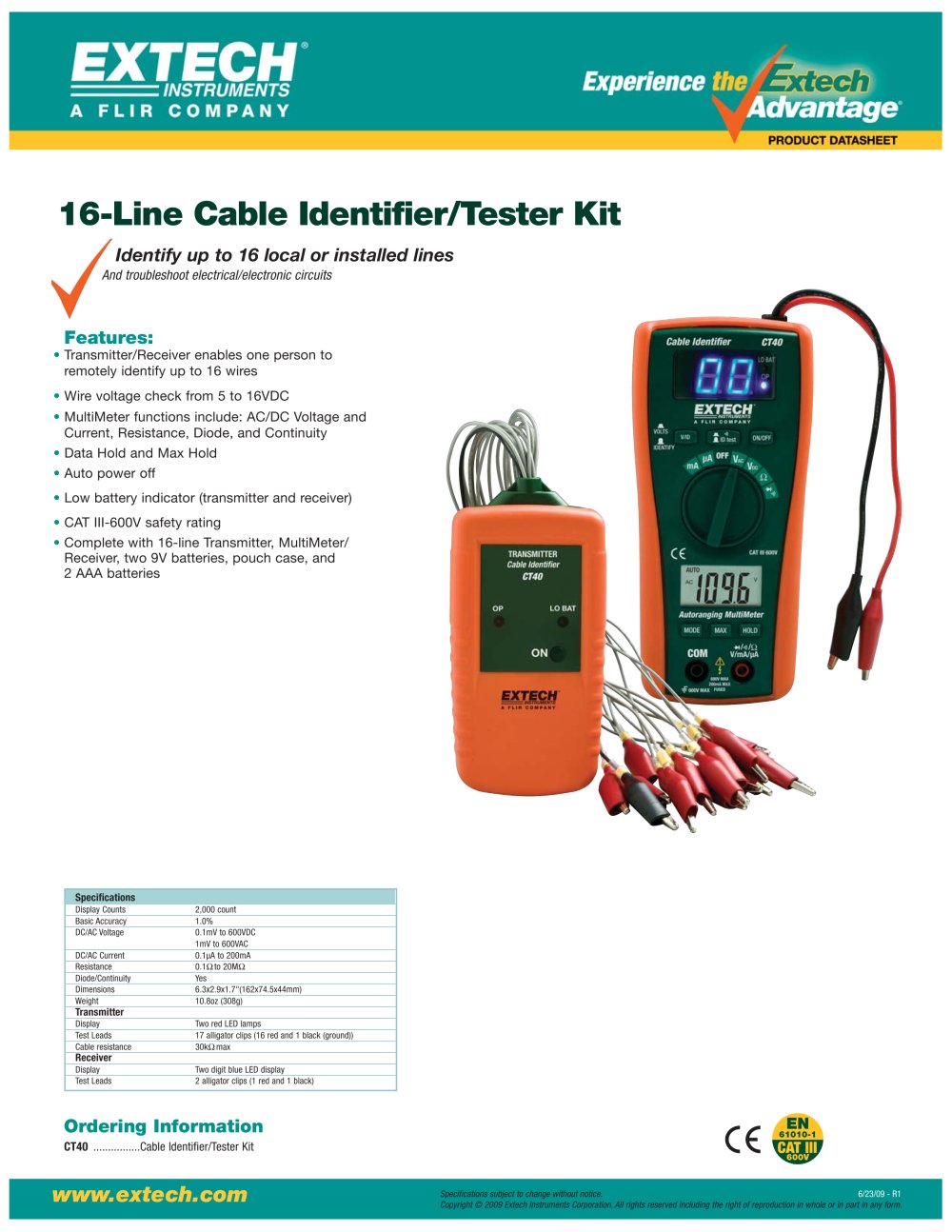

Specifications subject to change without notice. Copyright © 2009 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com 6/23/09 - R1 Identify up to 16 local or installed lines And troubleshoot electrical/electronic circuits 16-Line Cable Identifier/Tester Kit Specifications Display Counts 2,000 count Basic Accuracy 1.0% DC/AC Voltage 0.1mV to 600VDC 1mV to 600VAC DC/AC Current 0.1ìA to 200mA Resistance 0.1Ùto 20MÙ Diode/Continuity Yes Dimensions 6.3x2.9x1.7"(162x74.5x44mm) Weight 10.8oz (308g) Transmitter Display Two red LED lamps Test Leads 17 alligator clips (16 red and 1 black (ground)) Cable resistance 30kÙ max Receiver Display Two digit blue LED display Test Leads 2 alligator clips (1 red and 1 black) Features: • Transmitter/Receiver enables one person to remotely identify up to 16 wires • Wire voltage check from 5 to 16VDC • MultiMeter functions include: AC/DC Voltage and Current, Resistance, Diode, and Continuity • Data Hold and Max Hold • Auto power off • Low battery indicator (transmitter and receiver) • CAT III-600V safety rating • Complete with 16-line Transmitter, MultiMeter/ Receiver, two 9V batteries, pouch case, and 2 AAA batteries Ordering Information CT40 ................Cable Identifier/Tester Kit
