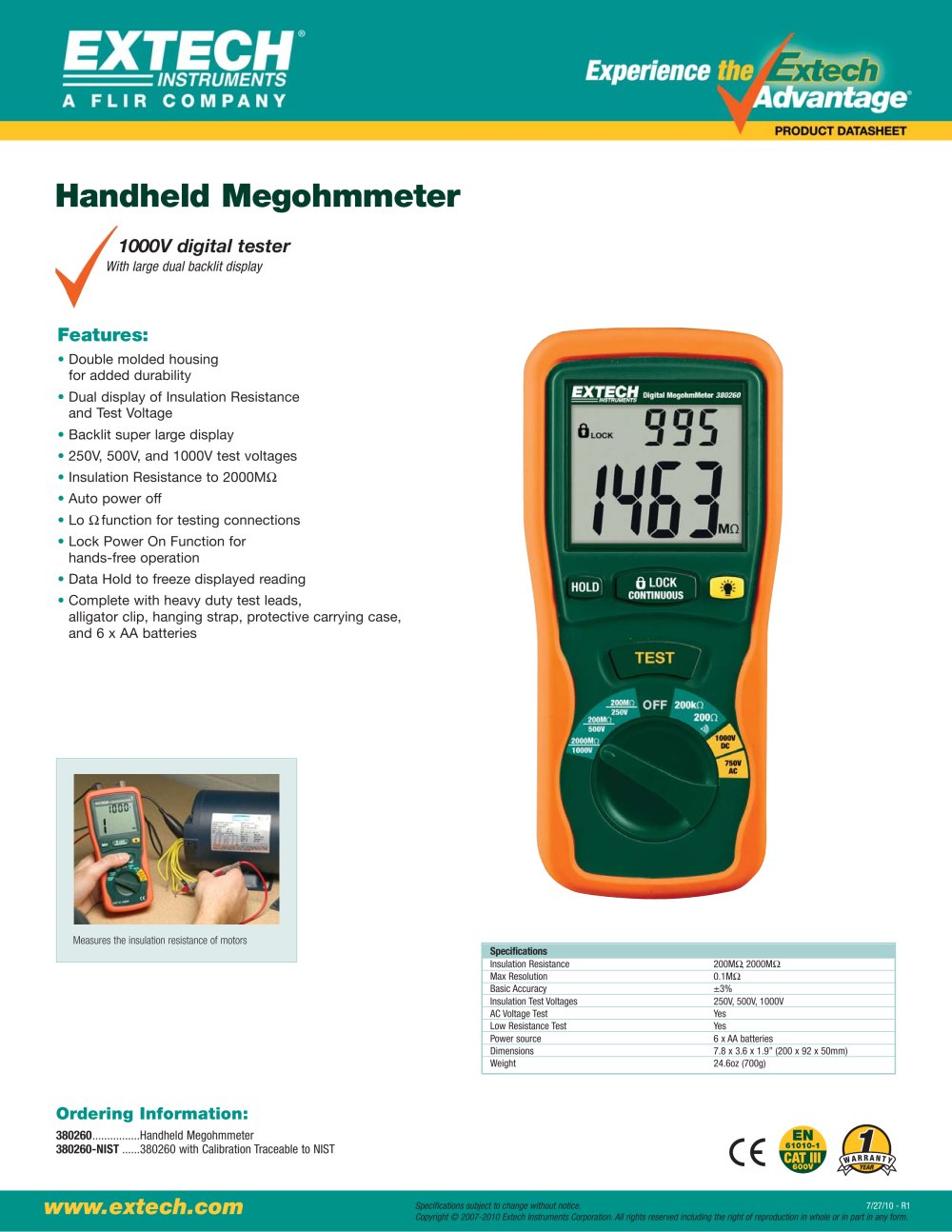

Specifications subject to change without notice. Copyright © 2007-2010 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com 7/27/10 - R1 1000V digital tester With large dual backlit display Handheld Megohmmeter Ordering Information: 380260................Handheld Megohmmeter 380260-NIST ......380260 with Calibration Traceable to NIST Features: • Double molded housing for added durability • Dual display of Insulation Resistance and Test Voltage • Backlit super large display • 250V, 500V, and 1000V test voltages • Insulation Resistance to 2000MÙ • Auto power off • Lo Ùfunction for testing connections • Lock Power On Function for hands-free operation • Data Hold to freeze displayed reading • Complete with heavy duty test leads, alligator clip, hanging strap, protective carrying case, and 6 x AA batteries Measures the insulation resistance of motors Specifications Insulation Resistance 200MÙ, 2000MÙ Max Resolution 0.1MÙ Basic Accuracy ±3% Insulation Test Voltages 250V, 500V, 1000V AC Voltage Test Yes Low Resistance Test Yes Power source 6 x AA batteries Dimensions 7.8 x 3.6 x 1.9” (200 x 92 x 50mm) Weight 24.6oz (700g)
