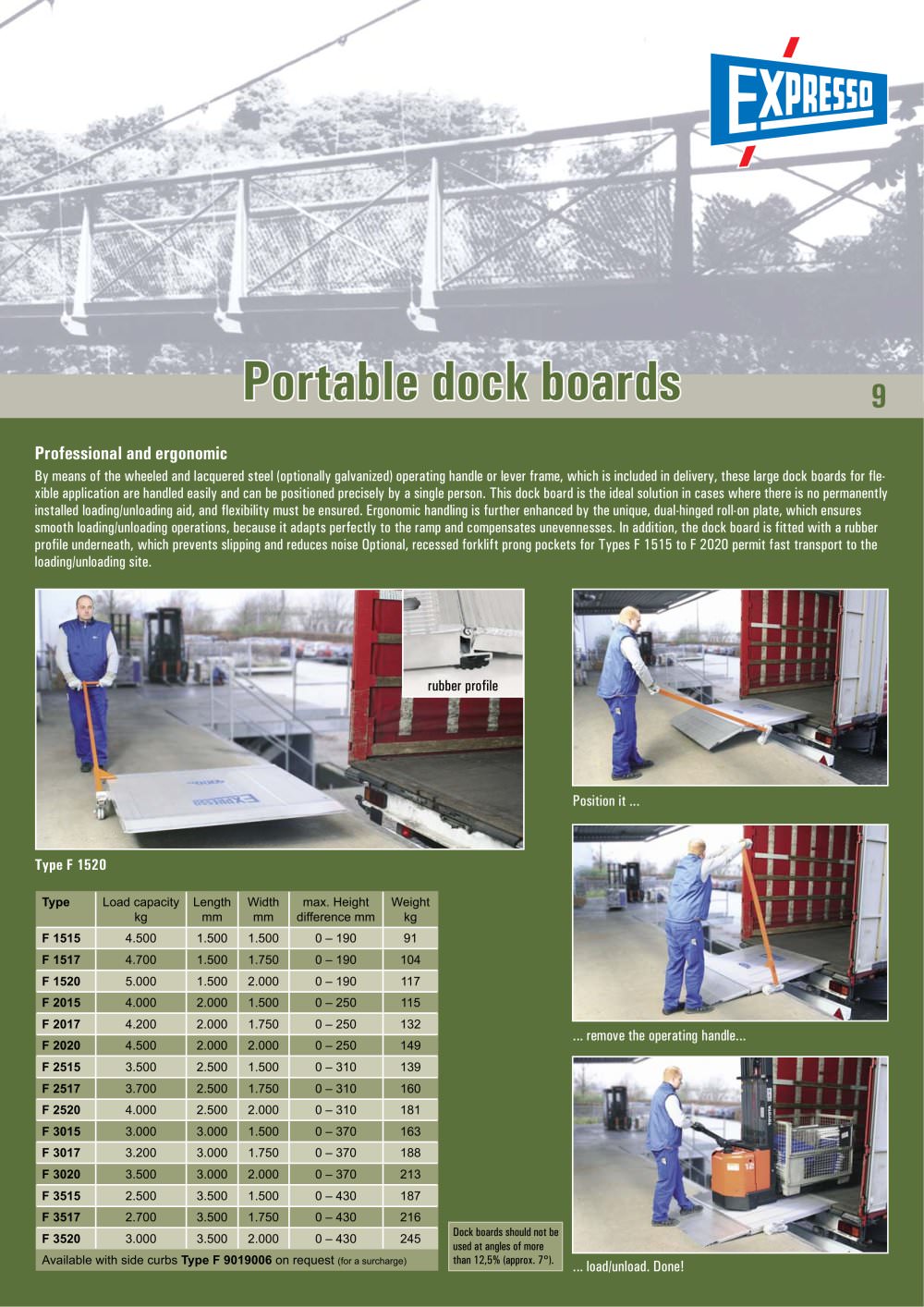

Portable dock boards Portable dock boards

9

Professional and ergonomic

By means of the wheeled and lacquered steel (optionally galvanized) operating handle or lever frame, which is included in delivery, these large dock boards for fle-xible application are handled easily and can be positioned precisely by a single person. This dock board is the ideal solution in cases where there is no permanently installed loading/unloading aid, and flexibility must be ensured. Ergonomic handling is further enhanced by the unique, dual-hinged roll-on plate, which ensures smooth loading/unloading operations, because it adapts perfectly to the ramp and compensates unevennesses. In addition, the dock board is fitted with a rubber profile underneath, which prevents slipping and reduces noise Optional, recessed forklift prong pockets for Types F 1515 to F 2020 permit fast transport to the loading/unloading site. Position it ... ... load/unload. Done! ... remove the operating handle... rubber profile Type F 1520

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 1515 4.5001.5001.5000 – 19091 F 1517 4.7001.5001.7500 – 190104 F 1520 5.0001.5002.0000 – 190117 F 2015 4.0002.0001.5000 – 250115 F 2017 4.2002.0001.7500 – 250132 F 2020 4.5002.0002.0000 – 250149 F 2515 3.5002.5001.5000 – 310139 F 2517 3.7002.5001.7500 – 310160 F 2520 4.0002.5002.0000 – 310181 F 3015 3.0003.0001.5000 – 370163 F 3017 3.2003.0001.7500 – 370188 F 3020 3.5003.0002.0000 – 370213 F 3515 2.5003.5001.5000 – 430187 F 3517 2.7003.5001.7500 – 430216 F 3520 3.0003.5002.0000 – 430245Available with side curbs
Dock boards should not be used at angles of more than 12,5% (approx. 7°). Type F 9019006 on request
(for a surcharge)
