3

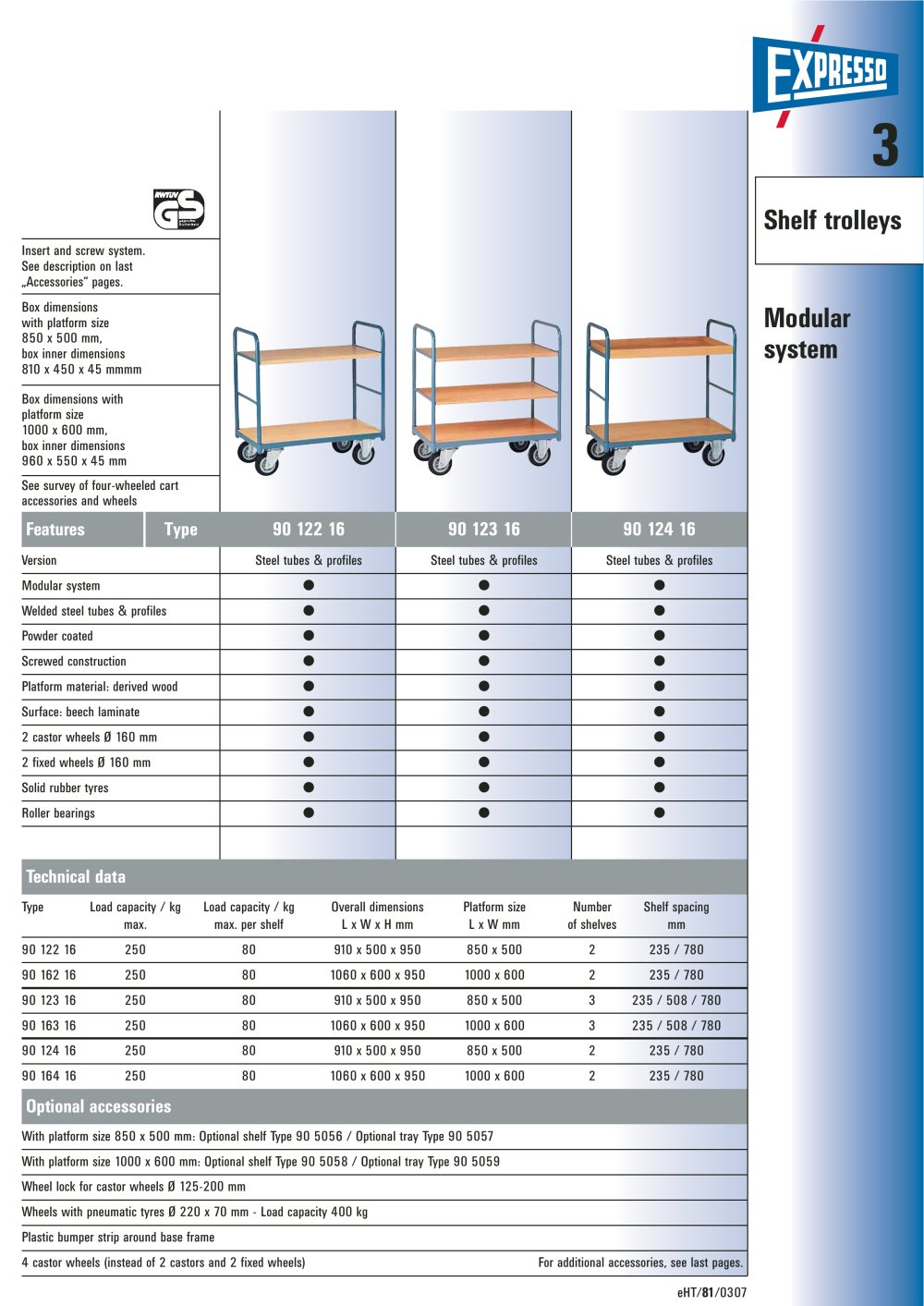

Shelf trolleysModularsystem

Insert and screw system. See description on last „Accessories“ pages. Box dimensions with platform size 850 x 500 mm, box inner dimensions 810 x 450 x 45 mmmmBox dimensions with platform size 1000 x 600 mm, box inner dimensions 960 x 550 x 45 mm See survey of four-wheeled cart accessories and wheels

FeaturesType90 122 1690 123 1690 124 16

VersionSteel tubes & profilesSteel tubes & profilesSteel tubes & profilesModular system ccc Welded steel tubes & profiles ccc Powder coated ccc Screwed construction ccc Platform material: derived wood ccc Surface: beech laminate ccc 2 castor wheels Ø 160 mm ccc 2 fixed wheels Ø 160 mm ccc Solid rubber tyres ccc Roller bearings ccc

Technical data

TypeLoad capacity / kgLoad capacity / kgOverall dimensionsPlatform sizeNumber Shelf spacing max.max. per shelfL x W x H mmL x W mmof shelvesmm90 122 1625080910 x 500 x 950850 x 5002235 / 780 90 162 16250801060 x 600 x 9501000 x 6002235 / 780 90 123 1625080910 x 500 x 950850 x 5003235 / 508 / 780 90 163 16250801060 x 600 x 9501000 x 6003235 / 508 / 780 90 124 1625080910 x 500 x 950850 x 5002235 / 780 90 164 16250801060 x 600 x 9501000 x 6002235 / 780With platform size 850 x 500 mm: Optional shelf Type 90 5056 / Optional tray Type 90 5057With platform size 1000 x 600 mm: Optional shelf Type 90 5058 / Optional tray Type 90 5059Wheel lock for castor wheels Ø 125-200 mm Wheels with pneumatic tyres Ø 220 x 70 mm - Load capacity 400 kg Plastic bumper strip around base frame 4 castor wheels (instead of 2 castors and 2 fixed wheels)For additional accessories, see last pages.

Optional accessories

eHT/ 81 /0307
