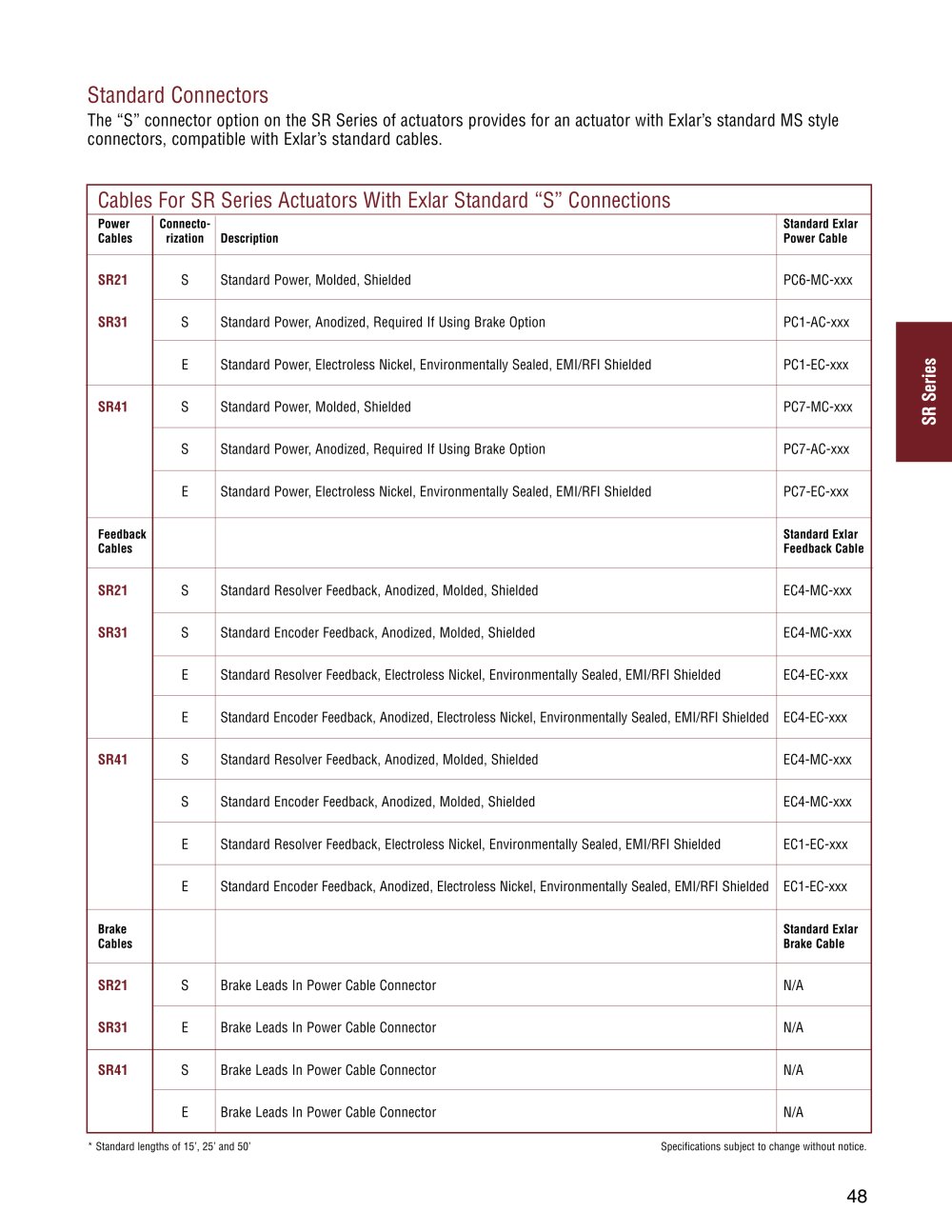

Standard Connectors

The “S” connector option on the SR Series of actuators provides for an actuator with Exlar’s standard MS styleconnectors, compatible with Exlar’s standard cables.

Cables For SR Series Actuators With Exlar Standard “S” Connections

PowerConnecto-Standard ExlarCablesrizationDescriptionPower Cable SR21 SStandard Power, Molded, ShieldedPC6-MC-xxx SR31 SStandard Power, Anodized, Required If Using Brake OptionPC1-AC-xxxEStandard Power, Electroless Nickel, Environmentally Sealed, EMI/RFI ShieldedPC1-EC-xxx SR41 SStandard Power, Molded, ShieldedPC7-MC-xxxSStandard Power, Anodized, Required If Using Brake OptionPC7-AC-xxxEStandard Power, Electroless Nickel, Environmentally Sealed, EMI/RFI ShieldedPC7-EC-xxx
SR Series Feedback Standard ExlarCablesFeedback Cable SR21 SStandard Resolver Feedback, Anodized, Molded, Shielded EC4-MC-xxx SR31 SStandard Encoder Feedback, Anodized, Molded, ShieldedEC4-MC-xxxEStandard Resolver Feedback, Electroless Nickel, Environmentally Sealed, EMI/RFI ShieldedEC4-EC-xxx EStandard Encoder Feedback, Anodized, Electroless Nickel, Environmentally Sealed, EMI/RFI ShieldedEC4-EC-xxx SR41 SStandard Resolver Feedback, Anodized, Molded, Shielded EC4-MC-xxxSStandard Encoder Feedback, Anodized, Molded, ShieldedEC4-MC-xxxEStandard Resolver Feedback, Electroless Nickel, Environmentally Sealed, EMI/RFI ShieldedEC1-EC-xxx EStandard Encoder Feedback, Anodized, Electroless Nickel, Environmentally Sealed, EMI/RFI ShieldedEC1-EC-xxx
Brake Standard ExlarCablesBrake Cable SR21 SBrake Leads In Power Cable ConnectorN/A SR31 EBrake Leads In Power Cable ConnectorN/A SR41 SBrake Leads In Power Cable ConnectorN/AEBrake Leads In Power Cable ConnectorN/A
* Standard lengths of 15’, 25’ and 50’ Specifications subject to change without notice.
