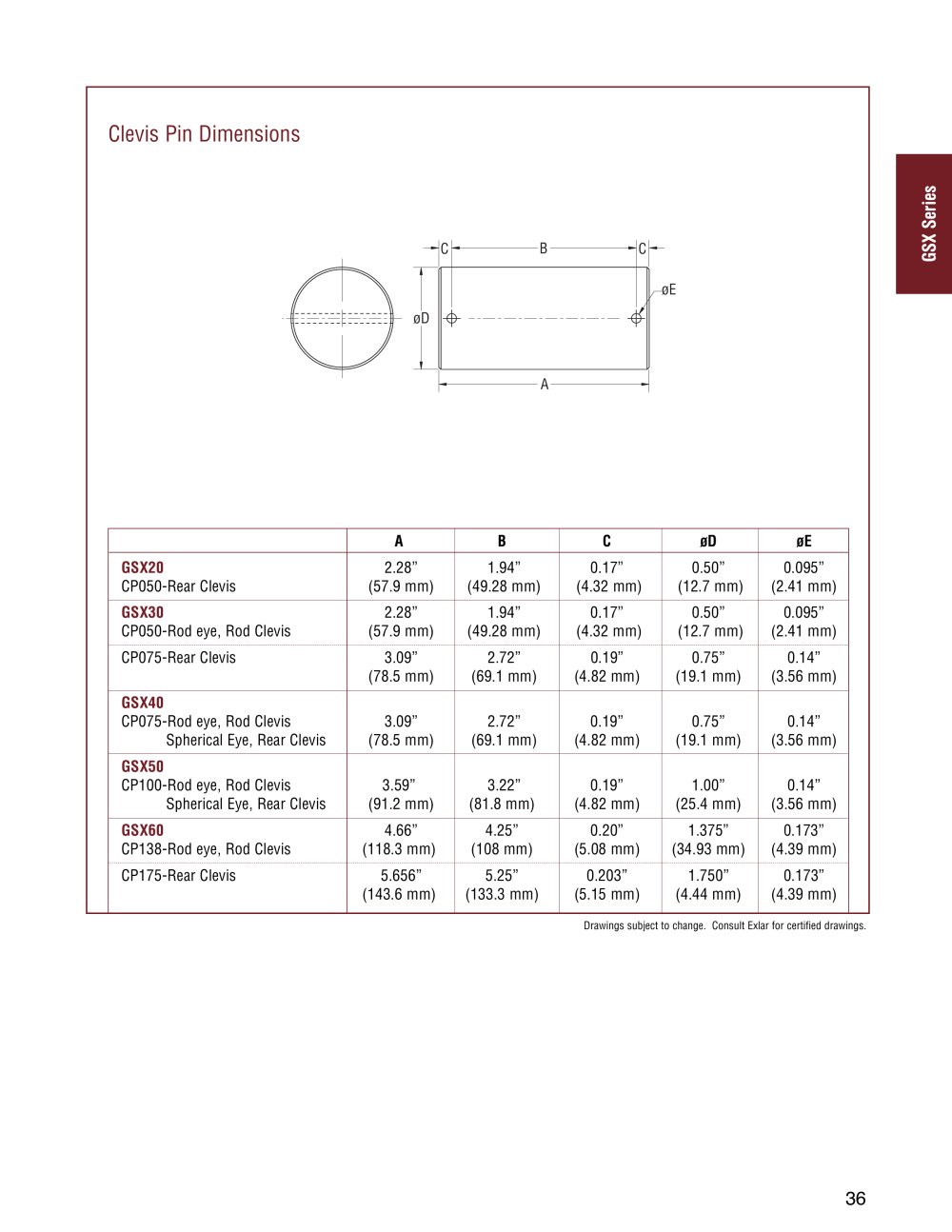

Clevis Pin Dimensions


		A	B	C	0D	0E
	GSX20 CP050-Rear Clevis	2.28" (57.9 mm)	1.94" (49.28 mm)	0.17" (4.32 mm)	0.50" (12.7 mm)	0.095" (2.41 mm)
	GSX30 CP050-Rod eye, Rod Clevis	2.28" (57.9 mm)	1.94" (49.28 mm)	0.17" (4.32 mm)	0.50" (12.7 mm)	0.095" (2.41 mm)
	CP075-Rear Clevis	3.09" (78.5 mm)	2.72" (69.1 mm)	0.19" (4.82 mm)	0.75" (19.1 mm)	0.14" (3.56 mm)
	GSX40 CP075-Rod eye, Rod Clevis Spherical Eye, Rear Clevis	3.09" (78.5 mm)	2.72" (69.1 mm)	0.19" (4.82 mm)	0.75" (19.1 mm)	0.14" (3.56 mm)
	GSX50 CP100-Rod eye, Rod Clevis Spherical Eye, Rear Clevis	3.59" (91.2 mm)	3.22" (81.8 mm)	0.19" (4.82 mm)	1.00" (25.4 mm)	0.14" (3.56 mm)
	GSX60 CP138-Rod eye, Rod Clevis	4.66" (118.3 mm)	4.25" (108 mm)	0.20" (5.08 mm)	1.375" (34.93 mm)	0.173" (4.39 mm)
	CP175-Rear Clevis	5.656" (143.6 mm)	5.25" (133.3 mm)	0.203" (5.15 mm)	1.750" (4.44 mm)	0.173" (4.39 mm)

Drawings subject to change. Consult Exlar for certified drawings.
