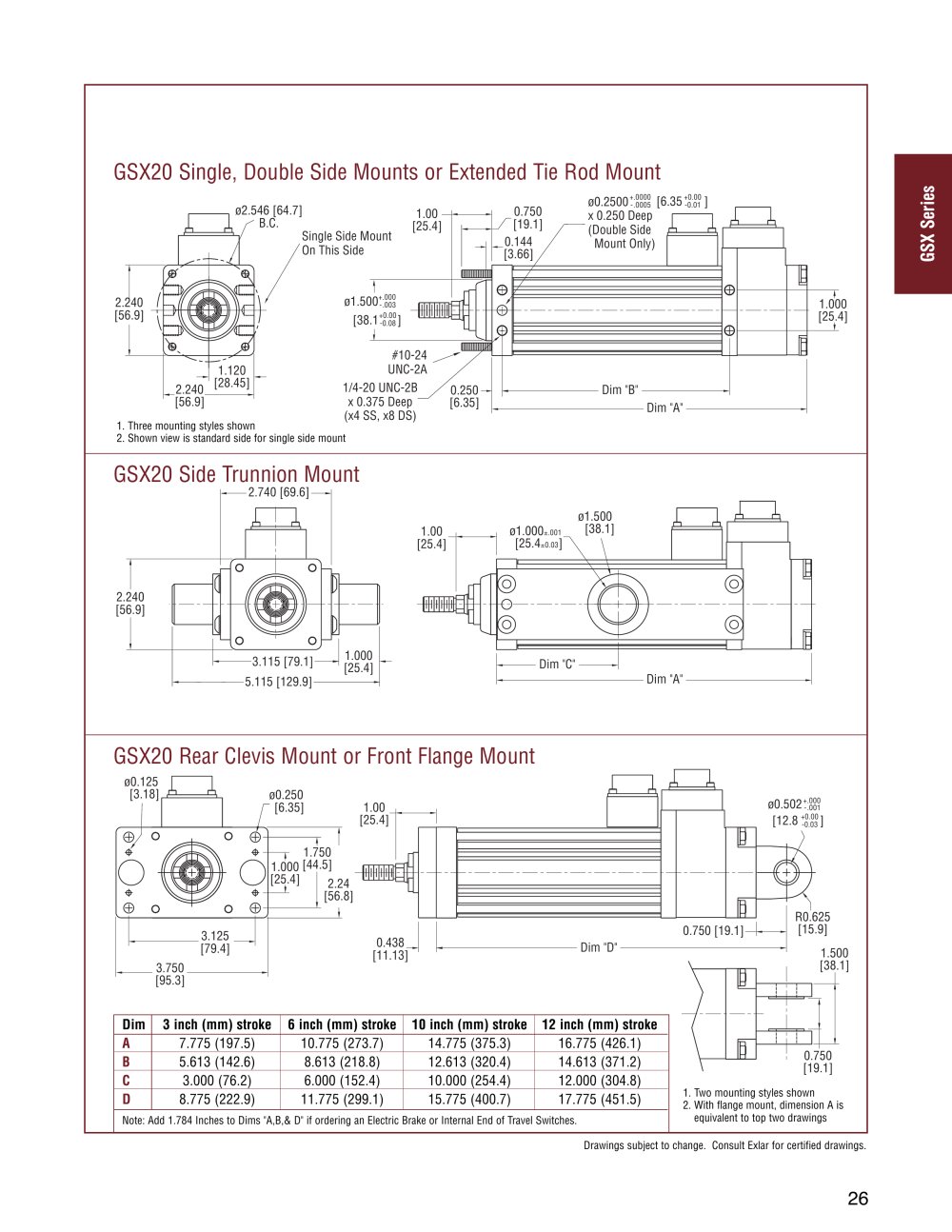

GSX20 Single, Double Side Mounts or Extended Tie Rod Mount GSX20 Side Trunnion Mount GSX20 Rear Clevis Mount or Front Flange Mount

+.0000 -.0005 +0.00 -0.01 ø2.546 [64.7]B.C. ø0.2500 x 0.250 Deep (Double Side Mount Only) [6.35 ] 1.00[25.4] 0.750[19.1] 1/4-20 UNC-2Bx 0.375 Deep(x4 SS, x8 DS) Single Side MountOn This Side 0.144[3.66]
GSX Series 2.240[56.9]2.240[56.9] ø1.500
+.000 -.003 1.000[25.4] [38.1 ]
+0.00 -0.08 #10-24UNC-2A 1.120[28.45] 0.250[6.35] Dim "B" Dim "A"
1. Three mounting styles shown2. Shown view is standard side for single side mount 1. Two mounting styles shown2. With flange mount, dimension A isequivalent to top two drawingsDrawings subject to change. Consult Exlar for certified drawings. 2.740 [69.6] ø1.500 [38.1] ø1.000
± .001 [25.4
± 0.03 ] 2.240[56.9] 3.115 [79.1] 1.000[25.4] 1.00[25.4] Dim "C" 5.115 [129.9] Dim "A" ø0.250 [6.35] ø0.502
+.000 -.001 [12.8 ]
+0.00 -0.03 1.750[44.5] 1.000[25.4]1.00[25.4] 2.24[56.8] R0.625[15.9] 3.125[79.4] 0.750 [19.1] 0.438[11.13] Dim "D" 1.500[38.1] 3.750[95.3] ø0.125 [3.18]

Dim3 inch (mm) stroke6 inch (mm) stroke10 inch (mm) stroke12 inch (mm) stroke A 7.775 (197.5)10.775 (273.7)14.775 (375.3)16.775 (426.1) B 5.613 (142.6)8.613 (218.8)12.613 (320.4)14.613 (371.2)

0.750[19.1]

C 3.000 (76.2)6.000 (152.4)10.000 (254.4)12.000 (304.8) D 8.775 (222.9)11.775 (299.1)15.775 (400.7)17.775 (451.5)

Note: Add 1.784 Inches to Dims "A,B,& D" if ordering an Electric Brake or Internal End of Travel Switches.
