Demand-Controlled Exhaust Systems for Dryers, Kitchens & Bathrooms - 9 / 12 Pages

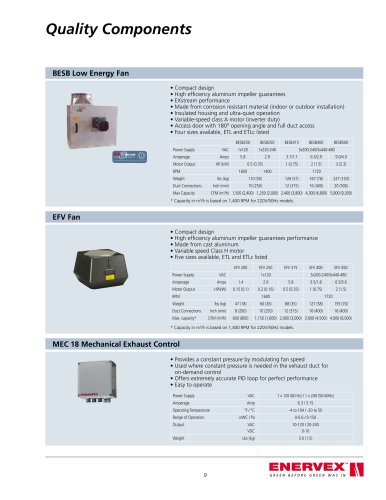

Quality Components

BESB Low Energy Fan

!

)

EFV Fan

Compact design

High efficiency aluminum impeller guarantees

EXstream performance

Made from corrosion resistant material (indoor or outdoor installation)

Insulated housing and ultra-quiet operation

Variable-speed class A motor (inverter duty)

Access door with 180° opening angle and full duct access

Four sizes available, ETL and ETLc listed

Power Supply

Amperage

Motor Output

RPM

Weight

Duct Connections

Max Capacity

VAC

Amps

HP(kW)

lbs (kg)

Inch (mm)

BESB250

1x120

5.8

BESB250

1x220-240

2.9

BESB315 BESB400 BESB500

3x200-240/3x440-480

0.5 (0.35)

1600 1400

110(50)

10 (250)

3.1/1.7

1 (0.75)

126 (57)

12(315)

6.5/2.9

2(1.5)

1720

167(76)

16(400)

9.0/4.0

3 (2.3)

227 (103)

20 (500)

CFM(nWh) 1,500(2,400) 1,250(2,000) 2,400(3,800) 4,300(6,800) 5,800(9,300)

' Capacity in m3/h is based on 1,400 RPM for 220V/50Hz models.

Compact design

High efficiency aluminum impeller guarantees performance

Made from cast aluminum

Variable speed Class H motor

Five sizes available, ETL and ETLc listed



EFV 200

EFV 250 EFV 315

EFV 400 EFV 450

Power Supply VAC

1x120

3x200-240/3x440-480

Amperage Amps

1.4

2.9 5.8

3.5/1.8 6.5/3.6

Motor Output HP(kW)

0.15(0.1)

0.2(0.16) 0.5(0.35)

1(0.75) 2(1.5)

RPM

1600

1720

Weight lbs (kg)

47 (18)

60 (26) 88 (35)

127 (58) 155 (70)

Duct Connections Inch (mm)

8 (200)

10 (250) 12 (315)

16(400) 16(400)

Max. capacity* CFM (nf/h)

600 (800)

1,150(1,600) 2,000(3,000)

3,000 (4,500) 4,000 (6,000)

' Capacity in m3/h is based on 1,400 RPM for 220V/50Hz models.

MEC 18 Mechanical Exhaust Control

Provides a constant pressure by modulating fan speed

Used where constant pressure is needed in the exhaust duct for

on-demand control

Offers extremely accurate PID loop for perfect performance

Easy to operate

Power Supply VAC

1 X 120 (60 Hz)/1 X 240 (50-60HZ)

Amperage Amp

6.3/3.15

Operating Temperature °F/°C

-4 to 104/-20 to 50

Range of Operation inWC / Pa

0-0.6/0-150

Output VAC

VDC

10-120/20-240

0-10

Weight Lbs (kg)

3.0(1.5)

9

ENERVEX1I

GREEN BEFORE GREEN WAS IN HI
