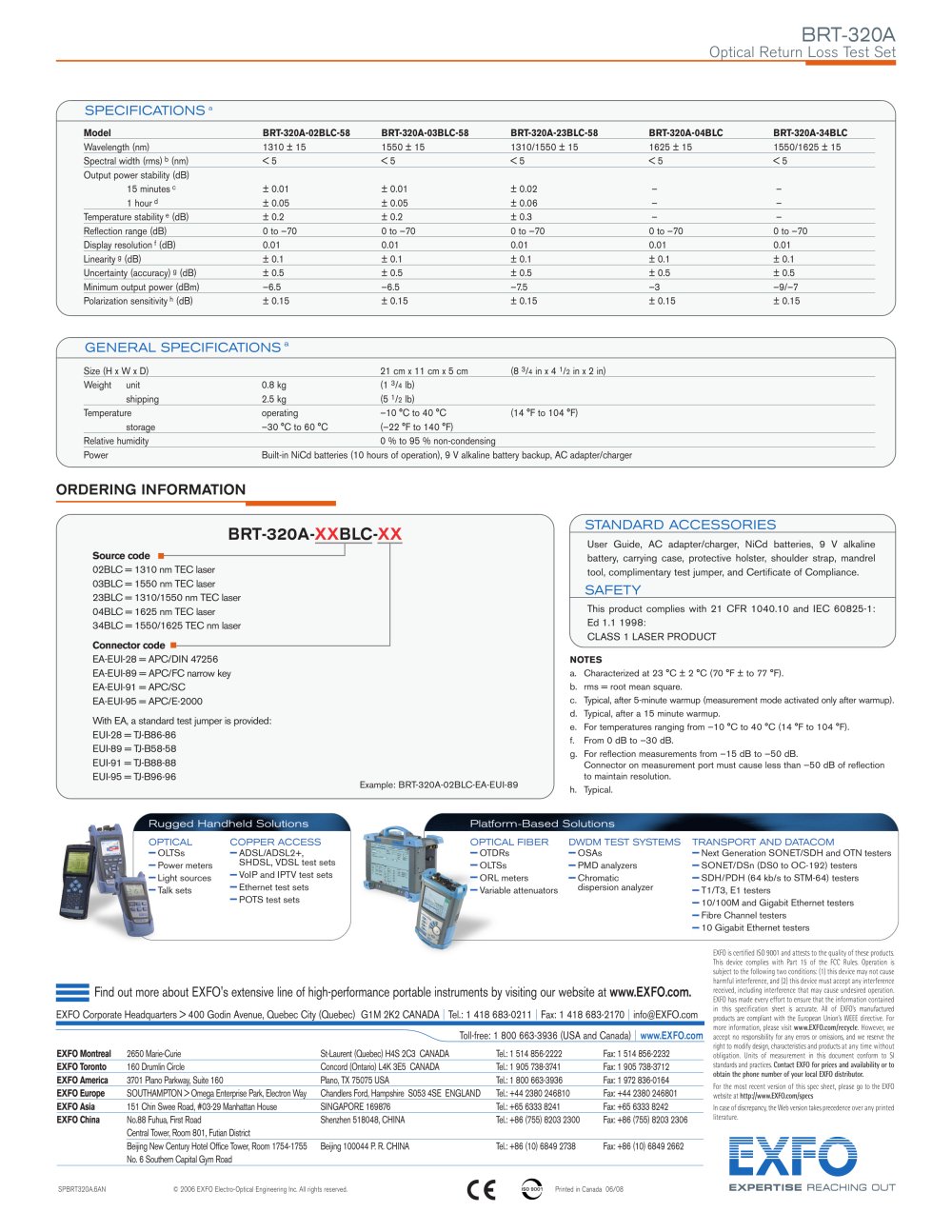

BRT-320A

Optical Return Loss Test Set

specifications '


Model	BRT-320A-02BLC-58	BRT-320A-03BLC-58	BRT-320A-23BLC-58	BRT-320A-04BLC	BRT-320A-34BLC
Wavelength (nm)	1310 ±15	1550 ± 15	1310/1550 ± 15	1625 ± 15	1550/1625 ± 15
Spectral width (rms) ^b (nm)	< 5	< 5	< 5	< 5	< 5
Output power stability (dB)
15 minutes ^c	±0.01	± 0.01	± 0.02	—	—
1 hour^d	±0.05	±0.05	± 0.06	—	—
Temperature stability ^e (dB)	±0.2	±0.2	± 0.3	—	—
Reflection range (dB)	0 to —70	0 to —70	0 to —70	0 to —70	0 to —70
Display resolution ^f (dB)	0.01	0.01	0.01	0.01	0.01
Linearity ^g (dB)	± 0.1	±0.1	± 0.1	± 0.1	± 0.1
Uncertainty (accuracy) ^g (dB)	± 0.5	±0.5	± 0.5	± 0.5	± 0.5
Minimum output power (dBm)	—6.5	—6.5	—7.5	—3	—9/—7
Polarization sensitivity ^h (dB)	± 0.15	±0.15	± 0.15	± 0.15	± 0.15

general specifications ^a

Size (H x W x D)

(8 ³/4 in x 4 ¹/2 in x 2 in)

21 cm x 11 cm x 5 cm


Weight unit	0.8 kg	(1 ³/4 lb)
shipping	2.5 kg	(5 ¹/2 lb)
Temperature	operating	— 10 °C to 40 °C (14 °F to 104 °F)
storage	—30 °C to 60 °C	(—22 °F to 140 °F)
Relative humidity		0 % to 95 % non-condensing

Built-in NiCd batteries (10 hours of operation), 9 V alkaline battery backup, AC adapter/charger

Power

ORDERING INFORMATION

standard accessories

User Guide, AC adapter/charger, NiCd batteries, 9 V alkaline battery, carrying case, protective holster, shoulder strap, mandrel tool, complimentary test jumper, and Certificate of Compliance.

safety

This product complies with 21 CFR 1040.10 and IEC 60825-1: Ed 1.1 1998:

CLASS 1 LASER PRODUCT NOTES

a. Characterized at 23 °C ±2 °C (70 °F ± to 77 °F).

b. rms = root mean square.

c. Typical, after 5-minute warmup (measurement mode actvated ony after warmup).

d. Typical, after a 15 minute warmup.

e. For temperatures ranging from -10 °C to 40 °C (14 °F to 104 °F).

f. From 0 dB to -30 dB.

g. For reflection measurements from -15 dB to -50 dB. Connector on measurement port must cause less than -50 dB of reflection

to maintain resolution. Typical.
