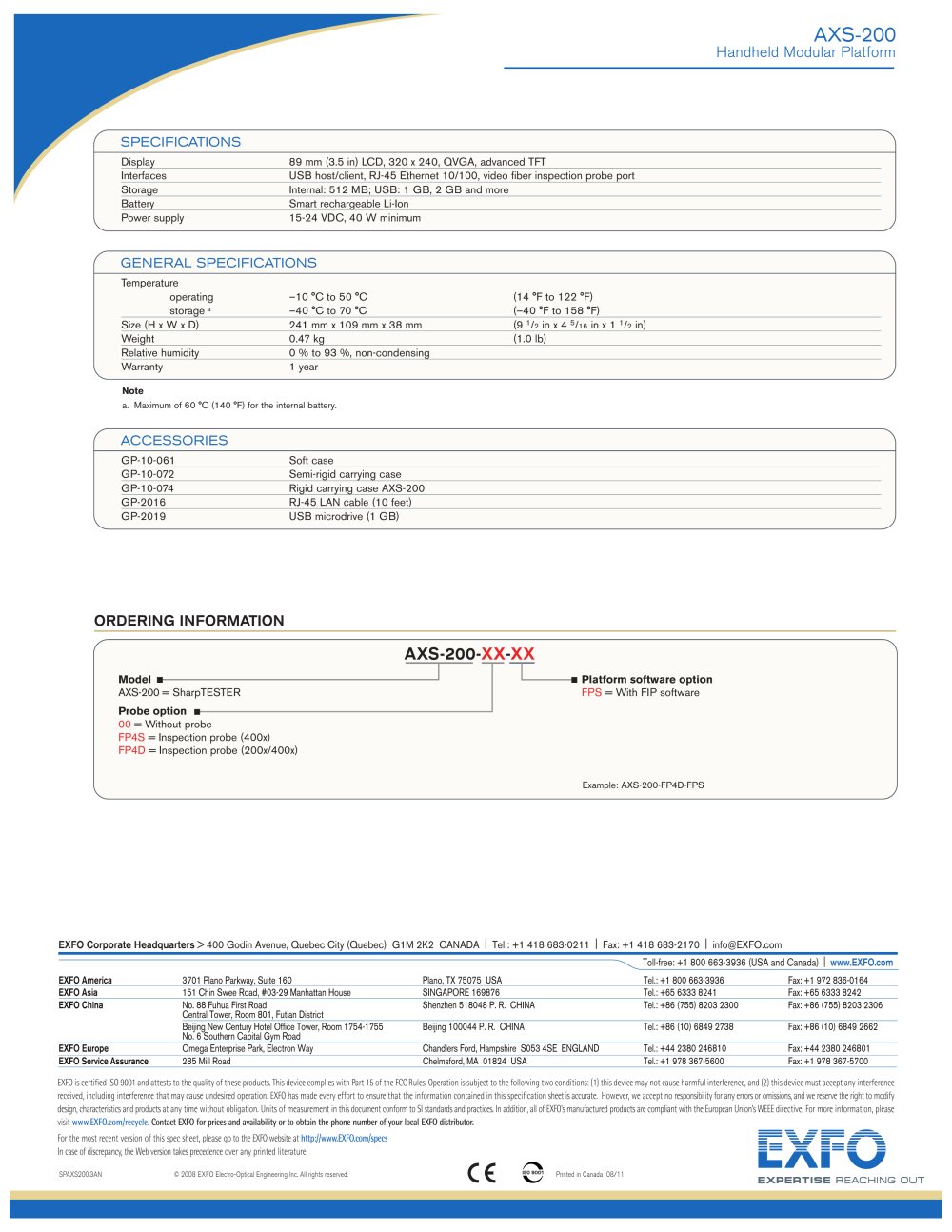

AXS-200

Handheld Modular Platform


r	SPECIFICATIONS			N
	Display	89 mm (3.5 in) LCD, 320 x 240, QVGA, advanced TFT
	Interfaces	USB host/client, RJ-45 Ethernet 10/100, video fiber inspection probe port
	Storage	Internal: 512MB; USB: 1 GB, 2 GB and more
	Battery	Smart rechargeable Li-Ion
V	Power supply	15-24 VDC, 40 W minimum		_)

r	GENERAL SPEC I F I CAT I ONS
	Temperature operating storage ^a	-10 °C to50°C -40°Cto70°C	(14°Fto 122 °F) (-40°Fto158 °F)
	Size (HxWxD)	241 mmx109mmx38mm	(9¹/2inx4⁵/i6inx1 ¹/2 in)
	Weight	0.47 kg	(1.0 lb)
	Relative humidity	0 % to 93 %, non-condensing
V	Warranty	1 year		_)
Note a. Maximum of 60 °C (140 °F) for the internal battery.
r	ACCESSORIES
	GP-10-061	Soft case
	GP-10-072	Semi-rigid carrying case
	GP-10-074	Rigid carrying case AXS-200
	GP-2016	RJ-45 LAN cable (10 feet)
	GP-2019	USB microdrive (1 GB)		_)

ORDERING INFORMATION

EXFO Corporate Headquarters > 400 Godin Avenue, Quebec City (Quebec) G1M2K2 CANADA | Tel.:+1 418 683-0211 | Fax:+1 418 683-2170 | info@EXFO.com

Toll-free:+1 800 663-3936 (USA and Canada) | www.EXFO.com

Plano, TX 75075 USA SINGAPORE 169876 Shenzhen 518048 P. R. CHINA

Fax: +1 972 836-0164 Fax: +65 6333 8242 Fax: +86 (755) 8203 2306

EXFO America EXFO Asia EXFO China

3701 Plano Parkway, Suite 160

151 Chin Swee Road, #03-29 Manhattan House

No. 88 Fuhua First Road

Central Tower, Room 801, Futian District

Tel.: +1 800 663-3936 Tel.:+65 6333 8241 Tel.: +86 (755) 8203 2300

Tel.:+86 (10) 6849 2738

Fax: +86 (10) 6849 2662

Beijing New Century Hotel Office Tower, Room 1754-1755 No. 6 Southern Capital Gym Road

Beijing 100044 P. R. CHINA


EXFO Europe	Omega Enterprise Park, Electron Way	Chandlers Ford, Hampshire S053 4SE ENGLAND	Tel.: +44 2380 246810	Fax: +44 2380 246801
EXFO Service Assurance	285 Mill Road	Chelmsford, MA 01824 USA	Tel.: +1 978 367-5600	Fax: +1 978367-5700

EXFO is certified ISO 9001 and attests to the quality of these products. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. EXFO has made every effort to ensure that the information contained in this specification sheet is accurate. However, we accept no responsibility for any errors or omissions, and we reserve the right to modify design, characteristics and products at any time without obligation. Units of measurement in this document conform to SI standards and practices. In addition, all of EXFO 's manufactured products are compliant with the European Union's WEEE directive. For more information, please visit www.EXFO.com/recycle. Contact EXFO for prices and availability or to obtain the phone number of your local EXFO distributor.

For the most recent version of this spec sheet, please go to the EXFO website at http://www.EXFO.com/specs — ^S = ^F~~^â

In case ofdiscrepancy, the Webversion takes precedence over any printed literature.

SPAXS200.3AN

Printed in Canada 08/1"

EXPERTISE REACHING OUT
