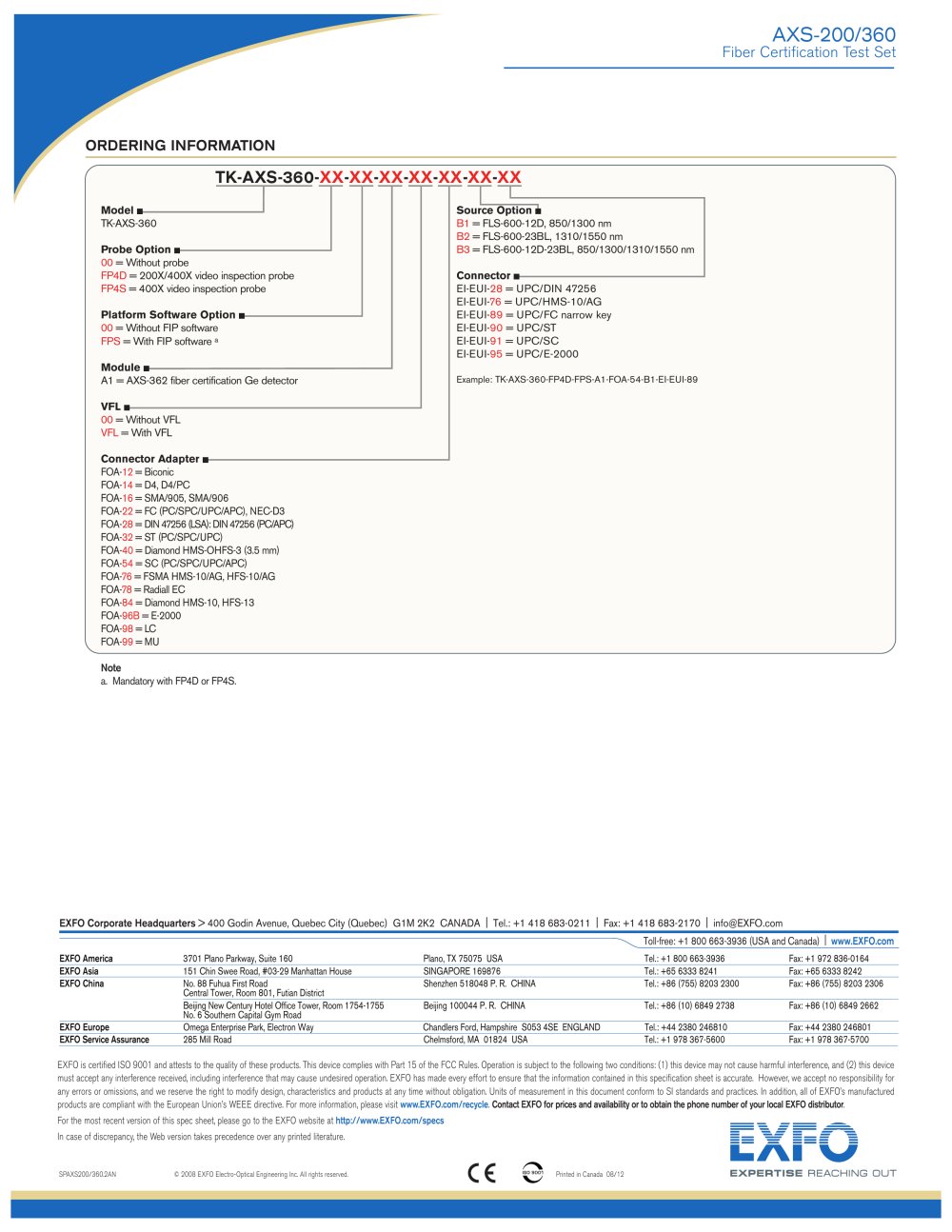

AXS-200/360

Fiber Certification Test Set

ORDERING INFORMATION

TK-AXS-360-XX-XX-XX-XX-XX-XX-XX

Model ■

TK-AXS-360

Source Option ■

B1 = FLS-600-12D, 850/1300 nm

B2 = FLS-600-23BL, 1310/1550 nm

B3 = FLS-600-12D-23BL, 850/1300/1310/1550 nm

Probe Option I

00 = Without probe

FP4D = 200X/400X video inspection probe FP4S = 400X video inspection probe

Connector ■

EI-EUI-28 = UPC/DIN 47256 EI-EUI-76 = UPC/HMS-10/AG EI-EUI-89 = UPC/FC narrow key EI-EUI-90 = UPC/ST EI-EUI-91 = UPC/SC EI-EUI-95 = UPC/E-2000

Example: TK-AXS-360-FP4D-FPS-A1-FOA-54-B1-EI-EUI-89

Platform Software Option i

00 = Without FIP software FPS = With FIP software ^a

Module ■

A1 = AXS-362 fiber certification Ge detector

VFL ■

00 = Without VFL VFL = With VFL

Connector Adapter ■

FOA-12 = Biconic FOA-14 = D4, D4/PC FOA-16 = SMA/905, SMA/906 FOA-22 = FC (PC/SPC/UPC/APC), NEC-D3 FOA-28 = DIN 47256 (LSA): DIN 47256 (PC/APC) FOA-32 = ST (PC/SPC/UPC) FOA-40 = Diamond HMS-OH FS-3 (3.5 mm) FOA-54 = SC (PC/SPC/UPC/APC) FOA-76 = FSMA HMS-10/AG, HFS-10/AG FOA-78 = Radiall EC FOA-84 = Diamond HMS-10, HFS-13 FOA-96B = E-2000 FOA-98 = LC

FOA-99 = MU

Note

a. Mandatory with FP4D or FP4S.

EXFO Corporate Headquarters > 400 Godin Avenue, Quebec City (Quebec) G1M 2K2 CANADA | Tel.: +1 418 683-0211 | Fax: +1 418 683-2170 | info@EXFO.com


			\_ Toll-free: +1 800 663-3936 (USA and Canada) \| www.EXFO.com

EXFO America	3701 Plano Parkway, Suite 160	Plano, TX 75075 USA	Tel.: +1 800 663-3936	Fax: +1 972 836-0164
EXFO Asia	151 Chin Swee Road, #03-29 Manhattan House	SINGAPORE 169876	Tel.: +65 6333 8241	Fax: +65 6333 8242
EXFO China	No. 88 Fuhua First Road Central Tower, Room 801, Futian District	Shenzhen 518048 P. R CHINA	Tel.: +86 (755) 8203 2300	Fax: +86 (755) 8203 2306
	Beijing New Century Hotel Office Tower, Room 1754-1755 No. 6 Southern Capital Gym Road	Beijing 100044 P. R CHINA	Tel.: +86 (10) 6849 2738	Fax: +86 (10) 6849 2662
EXFO Europe	Omega Enterprise Park, Electron Way	Chandlers Ford, Hampshire S053 4SE ENGLAND	Tel.: +44 2380 246810	Fax: +44 2380 246801
EXFO Service Assurance	285 Mill Road	Chelmsford, MA 01824 USA	Tel.: +1 978 367-5600	Fax: +1 978 367-5700

EXFO is certified ISO 9001 and attests to the quality of these products. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation. EXFO has made every effort to ensure that the information contained in this specification sheet is accurate. However we accept no responsibility for

any errors or omissions, and we reserve the right to modify design, characteristics and products at any time without obligation. Units of measurement in this document conform to SI standards and practices. In addition, all of EXFO's manufactured

products are compliant with the European Union's WEEE directive. For more information, please visit www.EXFO.com/recycle. Contact EXFO for prices and availability or to obtain the phone number of your local EXFO distributor

For the most recent version of this spec sheet, please go to the EXFO website at http://www.EXFO.com/specs _ _

n case of discrepancy the Web version takes precedence over any printed literature. =^S =
