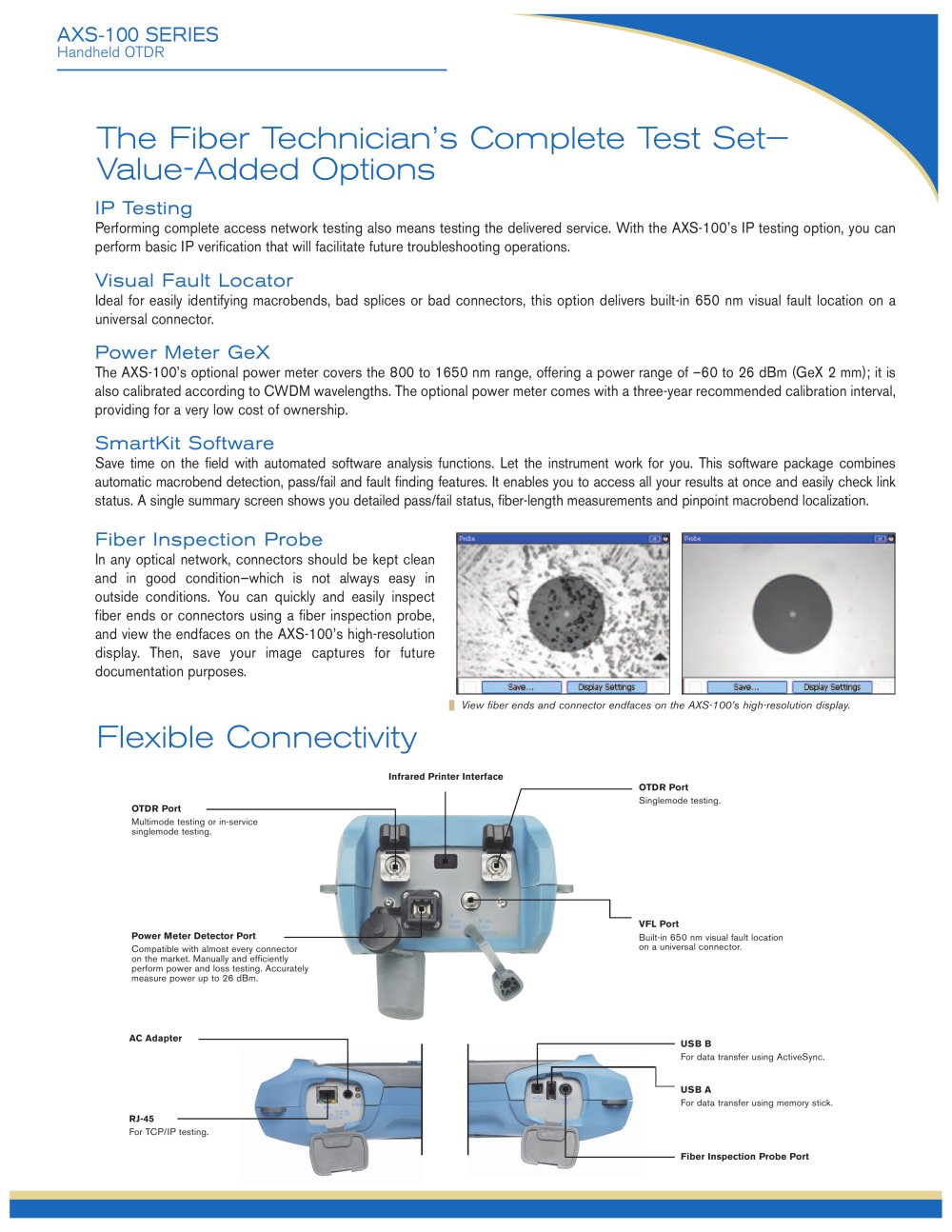

AXS-100 SERIES
Handheld OTDR
|
||||
|
|
||||
|
The Fiber Technician's Complète Test Set— Value-Added Options
IP Testing
Performing complète access network testing also means testing the delivered service. With the AXS-100's IP testing option, you can perform basic IP verification that will facilitate future troubleshooting operations.
Visual Fault Locator
Ideal for easily identifying macrobends, bad splices or bad connectors, this option delivers built-in 650 nm visual fault location on a universal connector.
Power Meter GeX
The AXS-100's optional power meter covers the 800 to 1650 nm range, offering a power range of -60 to 26 dBm (GeX 2 mm); it is also calibrated according to CWDM wavelengths. The optional power meter comes with a three-year recommended calibration interval, providing for a very low cost of ownership.
SmartKit Software
Save time on the field with automated software analysis functions. Let the instrument work for you. This software package combines automatic macrobend detection, pass/fail and fault finding features. It enables you to access all your results at once and easily check link status. A single summary screen shows you detailed pass/fail status, fiber-length measurements and pinpoint macrobend localization.
Fiber Inspection Probe
In any optical network, connectors should be kept clean and in good condition—which is not always easy in outside conditions. You can quickly and easily inspect fiber ends or connectors using a fiber inspection probe, and view the endfaces on the AXS-100's high-resolution display. Then, save your image captures for future documentation purposes.
 |
||||
|
|
||||
|
View fiber ends and connecter endfaces on the AXS-100's high-resolution display.
|
||||
|
|
||||
|
Flexible Connectivity
|
||||
|
|
||||
|
Infrared Printer Interface
|
||||
|
|
||||
|
OTDR Port -
Multimode testing or in-service singlemode testing.
|
OTDR Port
Singlemode testing.
 |
|||
|
|
||||
|
Power Meter Detector Port
Compatible with almost every connector on the market. Manually and efficiently perform power and loss testing. Accurately measure power up to 26 dBm.
|
VFL Port
Built-in 650 nm visual fault location on a universal connector.
|
|||
|
|
||||
|
AC Adapter
|
USB B
For data transfer using ActiveSync. USB A
For data transfer using memory stick.
|
|||
|
|
||||
|
RJ-45
For TCP/IP testing.
|
||||
|
|
||||
|
Fiber Inspection Probe Port
|
||||
|
|
||||
