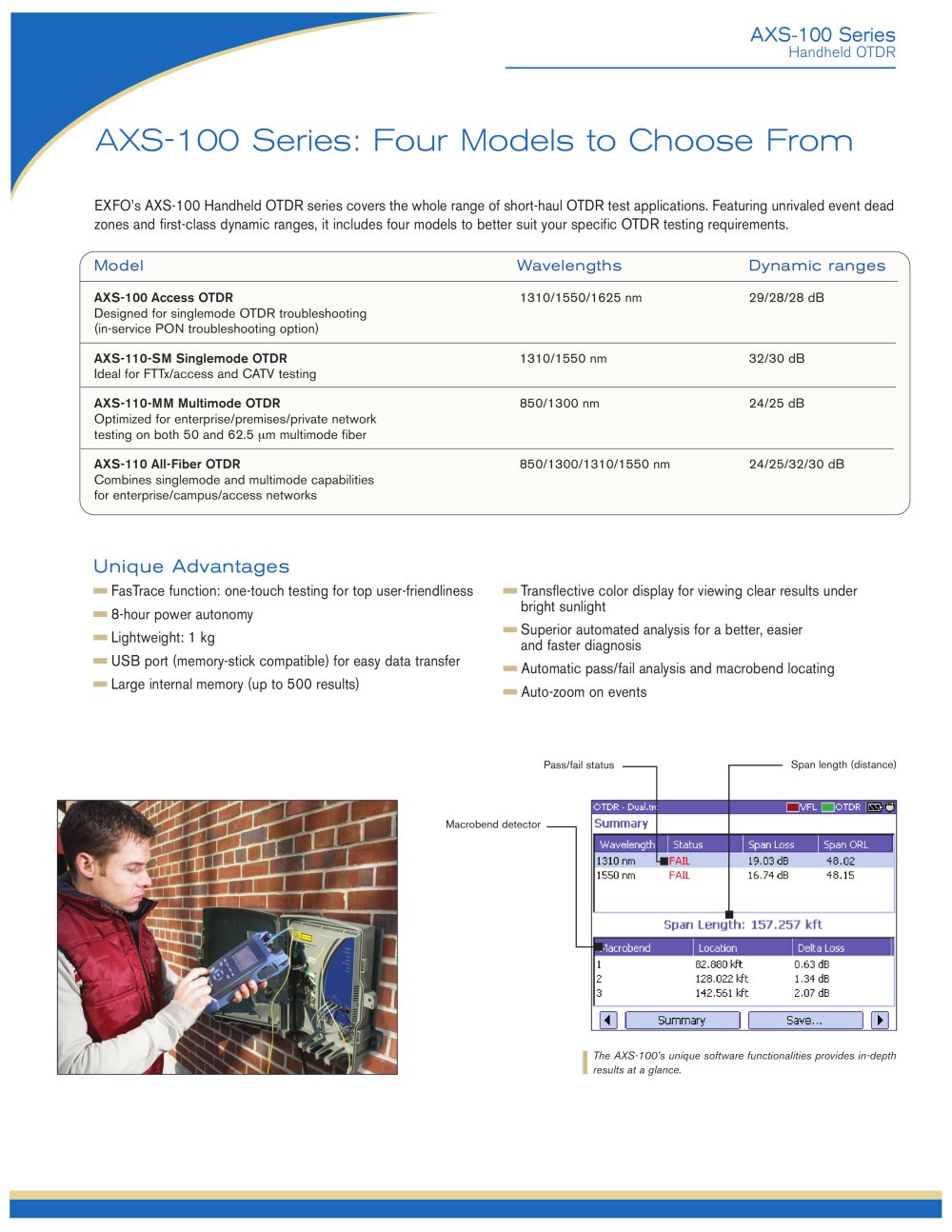

| | | AXS-100 Series: Four Models to Choose From | | |
| | | |
| | | | | | | | | | | EXFO's AXS-100 Handheld OTDR series covers the whole range of short-haul OTDR test applications. Featuring unrivaled event dead zones and first-class dynamic ranges, it includes four models to better suit your specific OTDR testing requirements. | | | | r Model | Wavelengths | Dynamic ranges | | | | AXS-100 Access OTDR Designed for singlemode OTDR troubleshooting (in-service PON troubleshooting option) | 1310/1550/1625 nm | 29/28/28 dB | | | | AXS-110-SM Singlemode OTDR Ideal for FTTx/access and CATV testing | 1310/1550 nm | 32/30 dB | | | | AXS-110-MM Multimode OTDR Optimized for enterprise/premises/private network testing on both 50 and 62.5 [xm multimode fiber | 850/1300 nm | 24/25 dB | | | | AXS-110 All-Fiber OTDR Combines singlemode and multimodecapabilities for enterprise/campus/access networks V | 850/1300/1310/1550 nm | 24/25/32/30 dB | | | | | | | | | | |
| | | |
| | | Unique Advantages ™ FasTrace function: one-touch testing for top user-friendliness ™ 8-hour power autonomy ™ Lightweight: 1 kg ™ USB port (memory-stick compatible) for easy data transfer ™ Large internal memory (up to 500 results) | | |
| | | Transflective color display for viewing clear results under bright sunlight Superior automated analysis for a better, easier and faster diagnosis Automatic pass/fail analysis and macrobend locating Auto-zoom on events | | |
| | | |
| | | |
| | | Span length (distance) | | |
| | | Pass/fail status | | |
| | | |
| | | |
| | | Macrobend detector | | |
| | | |
| | | The AXS-100's unique software functionalities provides in-depth results at a glance. | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | |
