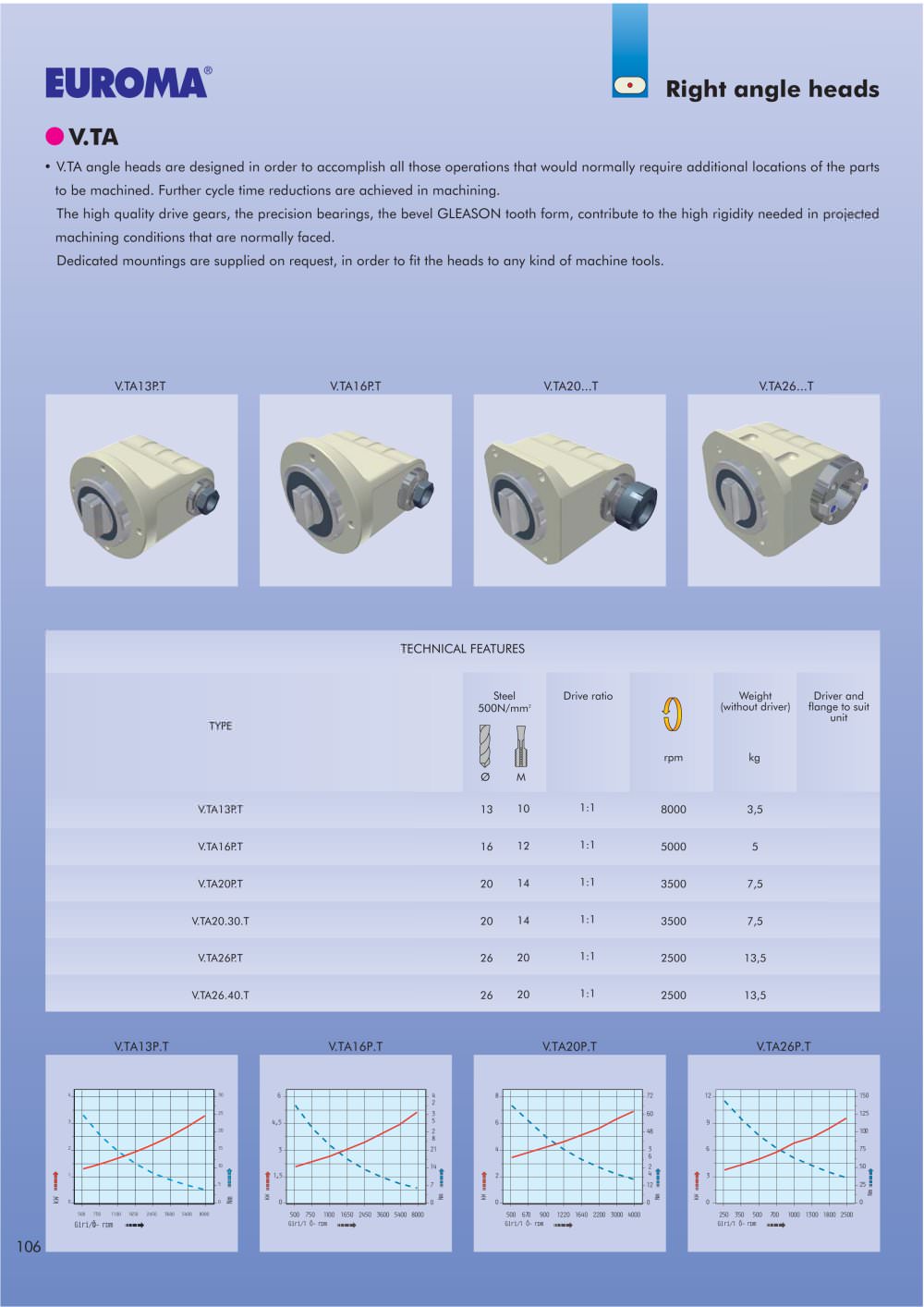

Catalogue - V.TA13P.T - Right angle heads - EUROMA

EUROMA

Right angle heads

• V.TA

V.TA angle heads are designed in order to accomplish ail those opérations that would normally require additional locations of the parts to be machined. Further cycle time reductions are achieved in machining.

The high quality drive gears, the precision bearings, the bevel GLEASON tooth form, contribute to the high rigidity needed in projected machining conditions thatare normallyfaced.

Dedicated mountings are supplied on request, in order to fit the heads to any kind of machine tools.

V.TA13P.T

V.TA16P.T

V.TA20...T

V.TA26...T


TECHNICAL FEATURES
TYPE	Steel 500N/mm²		Drive ratio		Weight (without driver)	Driver and flangeto suit unit
				rpm	kg
	0	M
V.TA13P.T	13	10	1:1	8000	3,5
V.TA16P.T	16	12	1:1	5000	5
V.TA20P.T	20	14	1:1	3500	7,5
V.TA20.30.T	20	14	1:1	3500	7,5
V.TA26P.T	26	20	1:1	2500	13,5
V.TA26.40.T	26	20	1:1	2500	13,5

V.TA13P.T

V.TA16P.T

V.TA20P.T

V.TA26P.T

150

~-125 -100

— 75 "-50

4,5

D 3

^ 0

□

^ 0

4 2

* 0

§ 0.

5 I

0 ê

500 750 1100 1650 2450 3600 5400 8000

Giri/Ô- rpm i»-^

500 750 1100 1650 2450 3600 5400 8000 Giri/1 Ô- rpm _aam+

500 670 900 1220 1640 2200 3000 4000 Giri/1 Ô- rpm _aamm>

250 350 500 700 1000 1300 1800 2500

Giri/1 Ô- rpm

106
