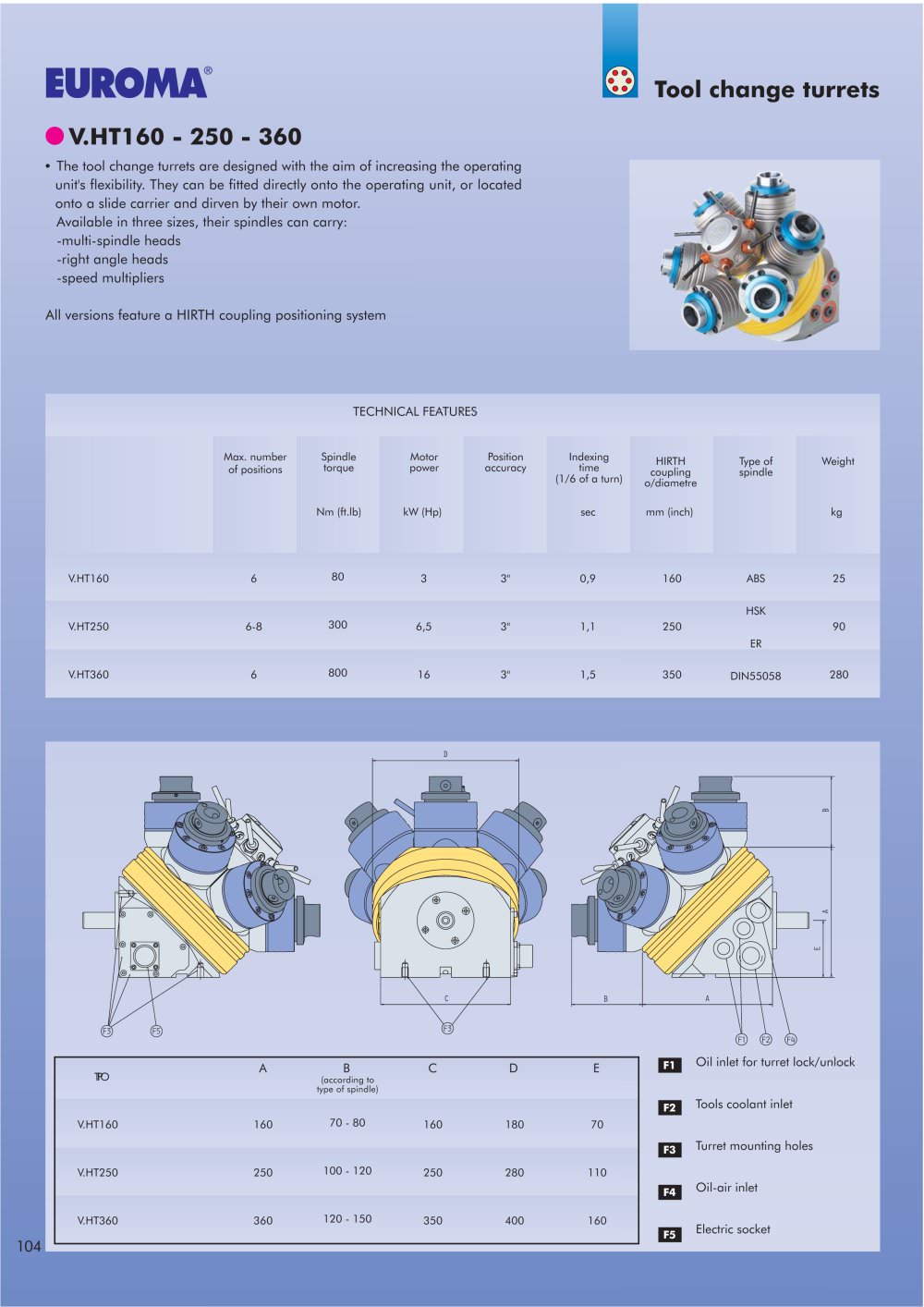

• V.HT160 - 250 - 360

Tool change turrets

• The tool change turrets are designed with the aim of increasing the operating unit's flexibility. They can be fitted directly onto the operating unit, or located onto a slide carrier and dirven by their own motor. Available in three sizes, their spindles can carry: -multi-spindle heads -right angle heads -speed multipliers

All versions feature a HIRTH coupling positioning system


TECHNICAL FEATURES
	Max. number of positions	Spindle torque	Motor power	Position accuracy	Indexing time (1/6 ofaturn)	HIRTH coupling o/diametre	Type of spindle	Weight
		Nm (ft.lb)	kW (Hp)		sec	mm (inch)		kg
V.HT160	6	80	3	3"	0,9	160	ABS	25
V.HT250	6-8	300	6,5	3"	1,1	250	HSK ER	90
V.HT360	6	800	16	3"	1,5	350	DIN55058	280

F2 F3 F4 F5

@ @ @ Oil inletforturret lock/unlock

Tools coolant inlet

Turret mounting holes

Oil-airinlet

Electric socket

104


TFO	A	B (according to type of spindle)	C	D
V.HT160	160	70 - 80	160	180	70
V.HT250	250	100-120	250	280	110
V.HT360	360	120-150	350	400	160
