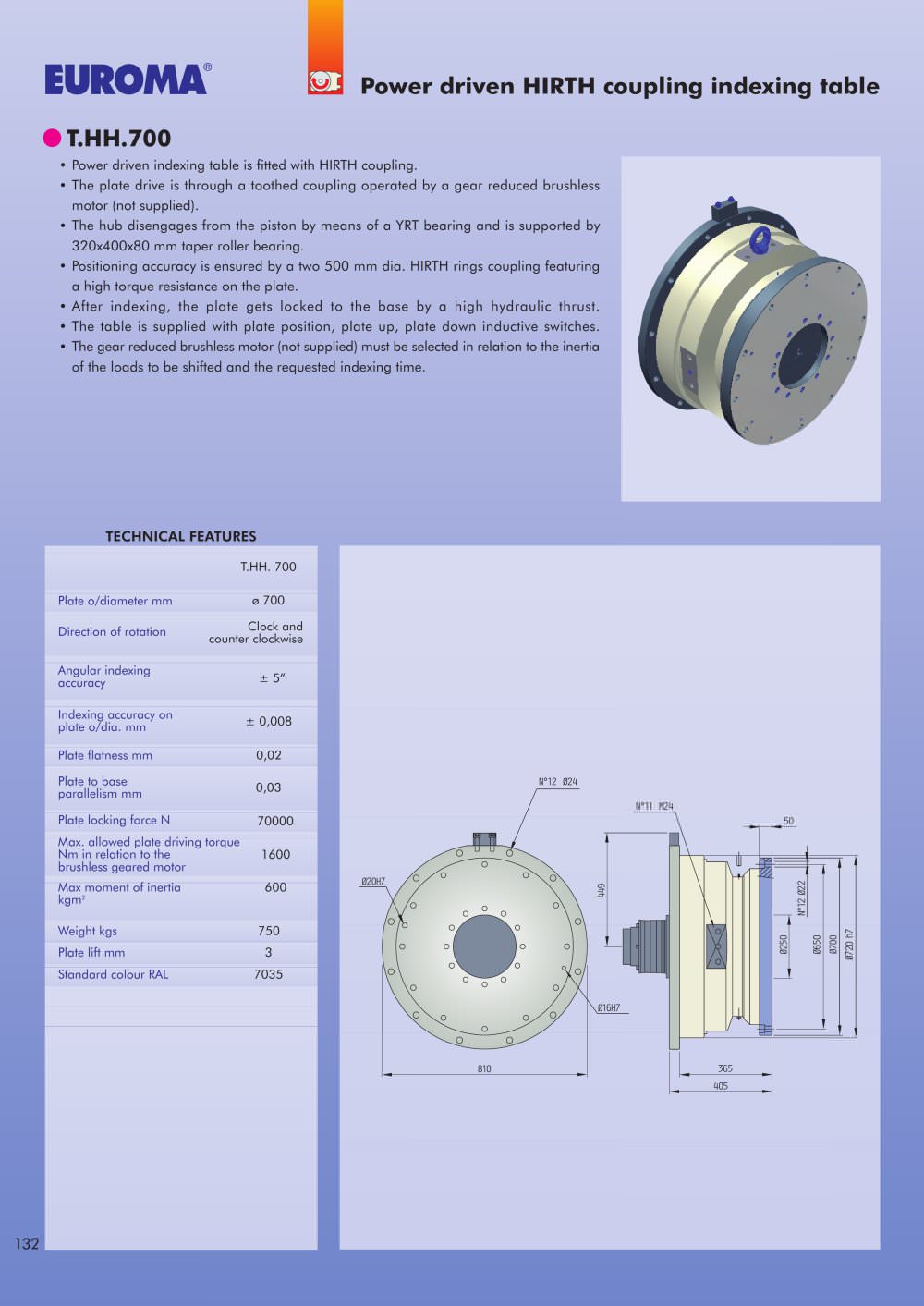

Power driven HIRTH coupling indexing table

T.HH.700

• Power driven indexing table is fitted with HIRTH coupling.

• The plate drive is through a toothed coupling operated by a gear reduced brushless motor (not supplied).

• The hub disengages from the piston by means of a YRT bearing and is supported by 320x400x80 mm taper roller bearing.

• Positioning accuracy is ensured by a two 500 mm dia. HIRTH rings coupling featuring a high torque resistance on the plate.

• After indexing, the plate gets locked to the base by a high hydraulic thrust.

• The table is supplied with plate position, plate up, plate down inductive switches.

• The gear reduced brushless motor (not supplied) must be selected in relation to the inertia of the loads to be shifted and the requested indexing time.

TECHNICAL FEATURES

T.HH. 700

Plate o/diameter mm Direction of rotation

0 700

Clock and counter clockwise

Angular indexing accuracy

± 5"


	Indexing accuracy on plate o/dia. mm	± 0,008
	Plate flatness mm	0,02
	Plate to base parallelism mm	0,03

	Plate locking force N	70000
	Max. allowed plate driving torque Nm in relation to the brushless geared motor	1600
	Max moment of inertia kgm²	600
	Weight kgs	750
	Plate lift mm	3
	Standard colour RAL	7035

N°12 024
