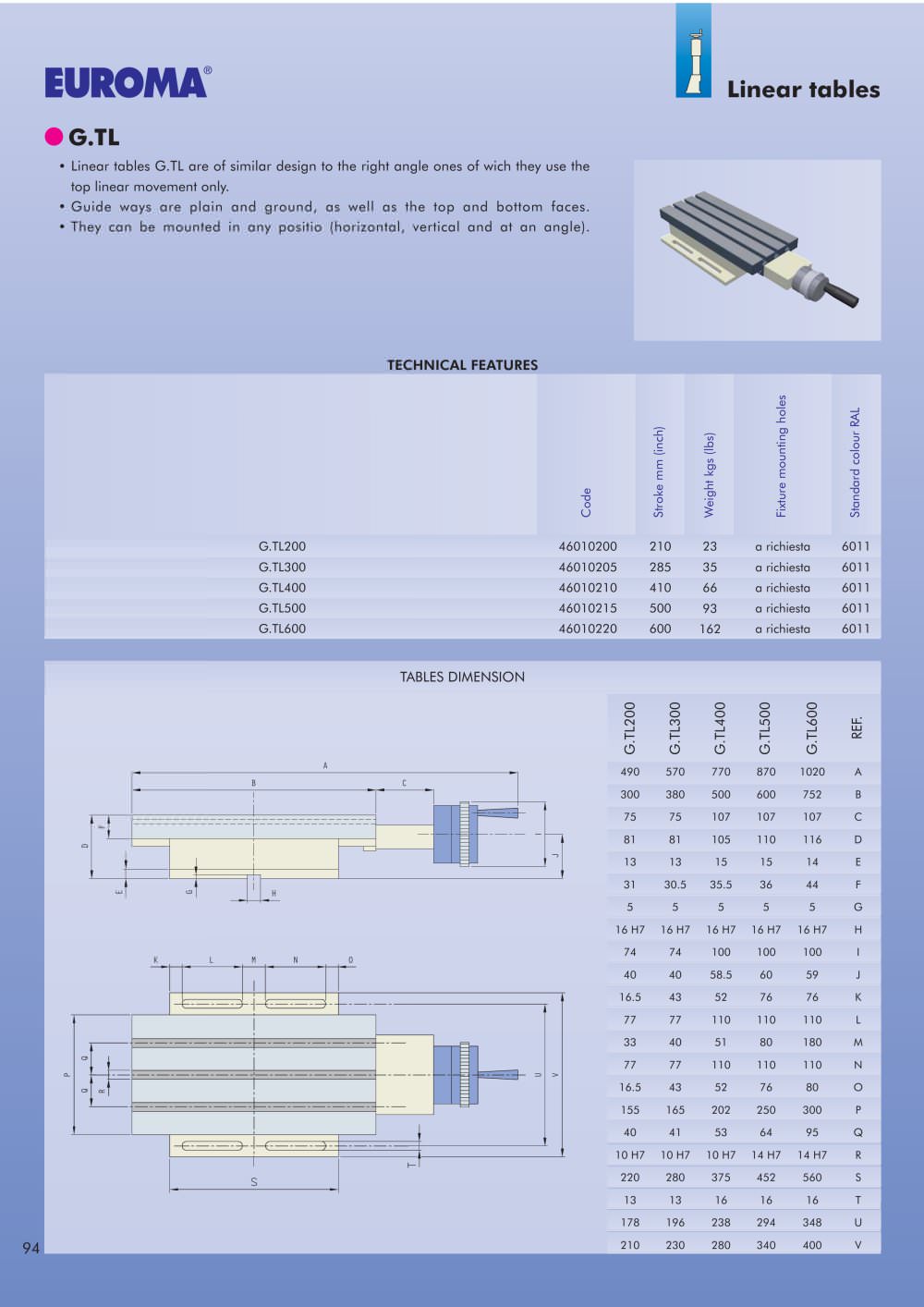

EUROMA

Linear tables

• G.TL

• Linear tables G.TL are of similar design to the right angle ones of wich they use the top linear movement only.

• Guide ways are plain and ground, as well as the top and bottom faces.

• They can be mounted in any positio (horizontal, vertical and at an angle).

TECHNICAL FEATURES


		Code	Stroke mm (inch)	Weight kgs (lbs)	Fixture mounting holes	Standard colour RAL
	G.TL200	46010200	210	23	a richiesta	6011
	G.TL300	46010205	285	35	a richiesta	6011
	G.TL400	46010210	410	66	a richiesta	6011
	G.TL500	46010215	500	93	a richiesta	6011
	G.TL600	46010220	600	162	a richiesta	6011

TABLES DIMENSION

A


	G.TL200	G.TL300	G.TL400	G.TL500	G.TL600	REF.
	490	570	770	870	1020	A
	300	380	500	600	752	B
	75	75	107	107	107	C
	81	81	105	110	116	D
	13	13	15	15	14	E
	31	30.5	35.5	36	44	F
	5	5	5	5	5	G
	16H7	16 H7	16 H7	16 H7	16 H7	H
	74	74	100	100	100	I
	40	40	58.5	60	59	J
	16.5	43	52	76	76	K
	77	77	110	110	110	L
	33	40	51	80	180	M
	77	77	110	110	110	N
	16.5	43	52	76	80	O
	155	165	202	250	300	P
	40	41	53	64	95	Q
	10H7	10 H7	10 H7	14 H7	14 H7	R
	220	280	375	452	560	S
	13	13	16	16	16	T
	178	196	238	294	348	U
	210	230	280	340	400	V

BC

94

K

LN N

0
