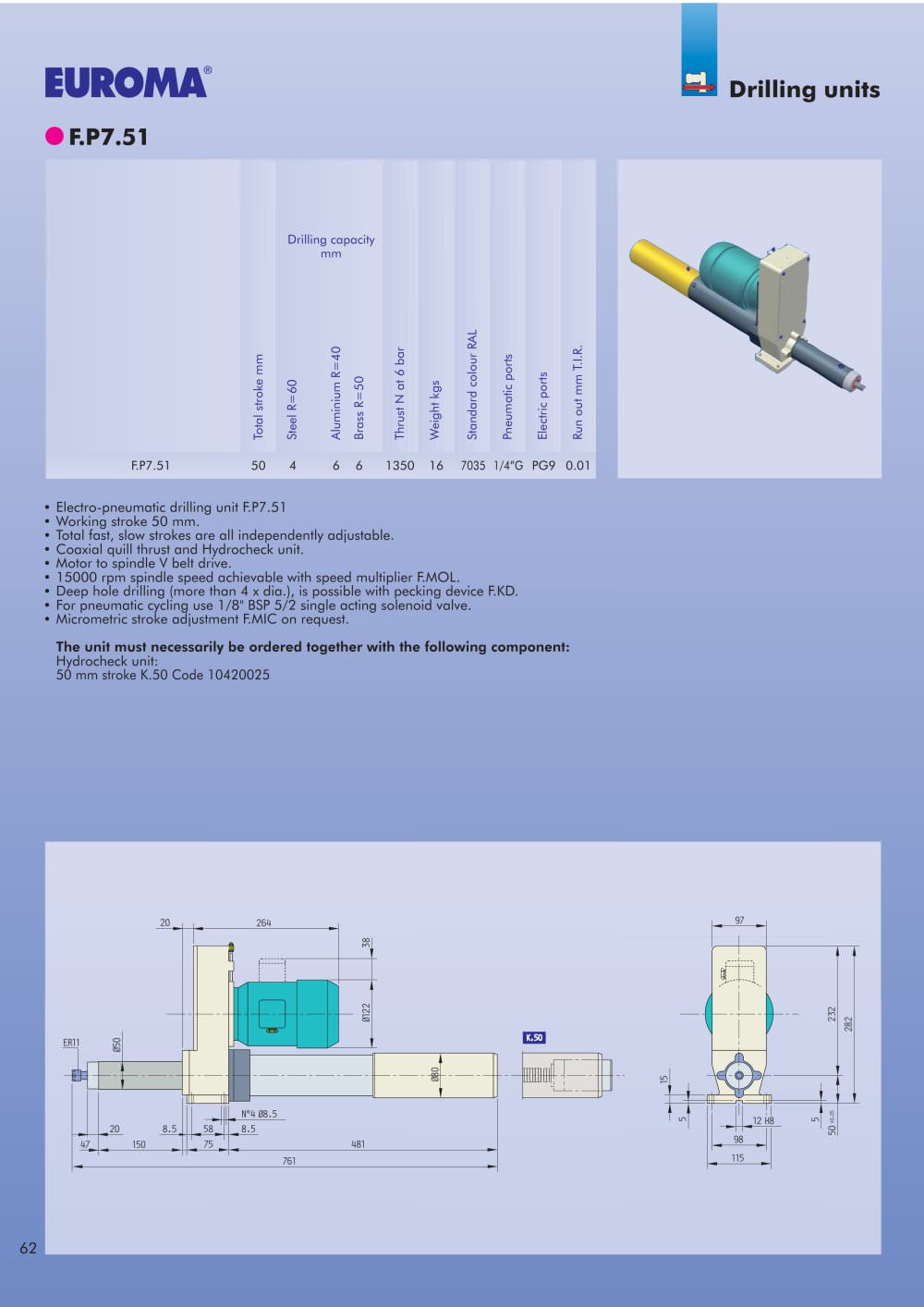

| • Coaxial quill thrust and Hydrocheck unit. • Motor to spindle V belt drive. • 15000 rpm spindle speed achievable with speed multiplier RMOL • Deep hole drilling (more than 4 x dia.), is possible with pecking device F.KD. • For pneumatic cycling use 1/8" BSP 5/2 single acting solenoid valve. • Micrometric stroke adjustment F.MIC on request. The unit must necessarily be ordered together with the following component: Hydrocheck unit: 50 mm stroke K.50 Code 10420025 | ||
| | ||
 | ||
