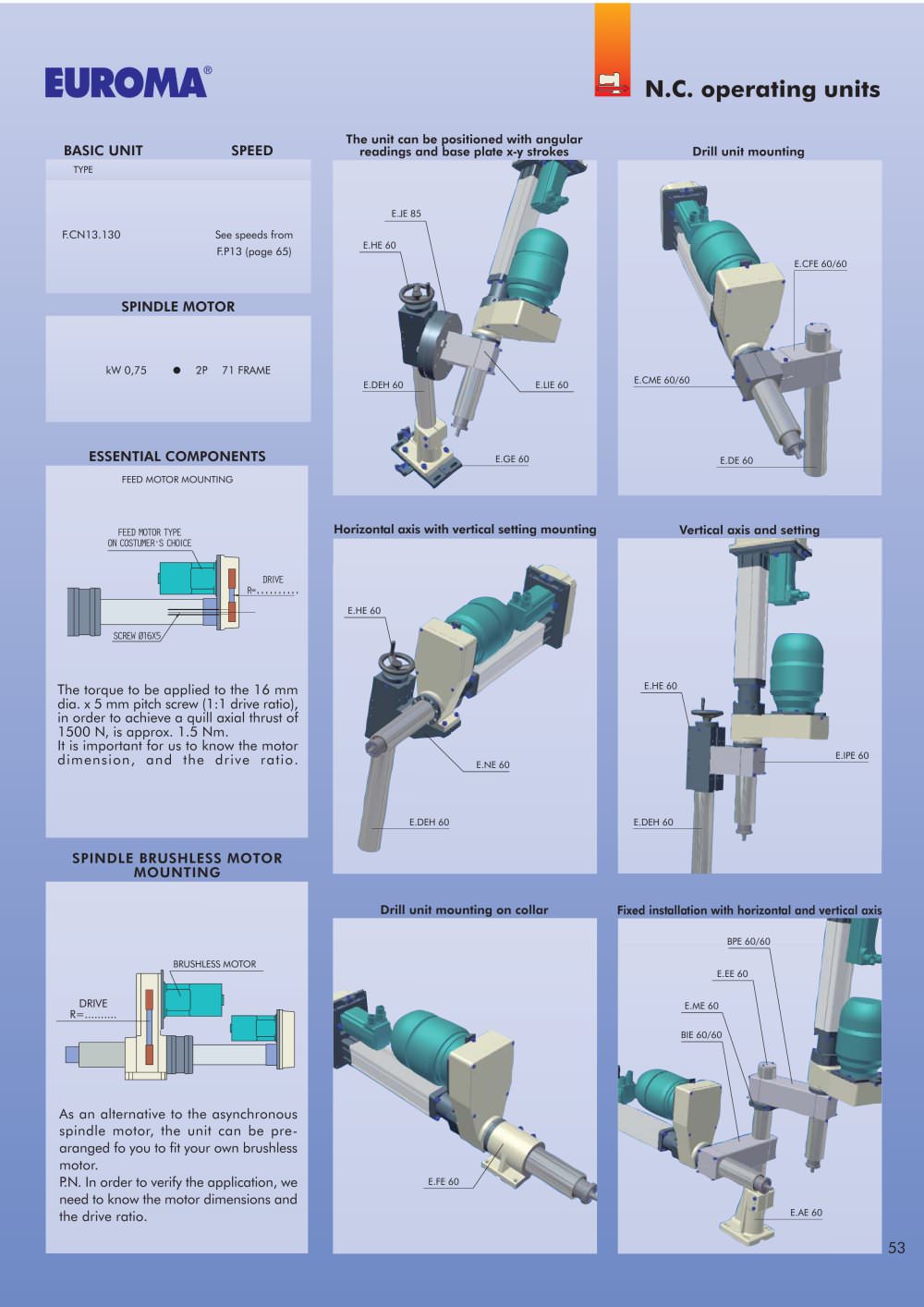

| EUROMA | N.C. operating units | ||||||
| | |||||||
 | |||||||
| | |||||||
| FEED MOTOR TYPE ON COSTUNER'S CHOICE | Horizontal axis with vertical setting mounting | Vertical axis and setting | |||||
 | E.HE60 |  | E.IPE 60 | ||||
| SCREW 016X5 | DRIVE R-.......... | ||||||
| The torque to be applied to the 16 mm dia. x 5 mm pitch screw (1:1 drive ratio), in order to achieve a quill axial thrust of 1500 N, is approx. 1.5 Nm. It is important for us to know the motor dimension, and the drive ratio. | |||||||
| E.DEH 60 | |||||||
| SPINDLE BRUSHLESS MOTOR MOUNTING | |||||||
| | |||||||
| Drill unit mounting on collar | Fixed installation with horizontal and vertical axis BPE 60/60 E.EE 60 | ||||||
| | |||||||
| BRUSHLESS MOTOR |  | ||||||
| DRIVE R .......... | |||||||
| As an alternative to the asynchronous spindle motor, the unit can be pre-aranged fo you to fit your own brushless motor. P.N. In order to verify the application, we need to know the motor dimensions and the drive ratio. | |||||||
| | |||||||
| 53 | |||||||
| | |||||||
