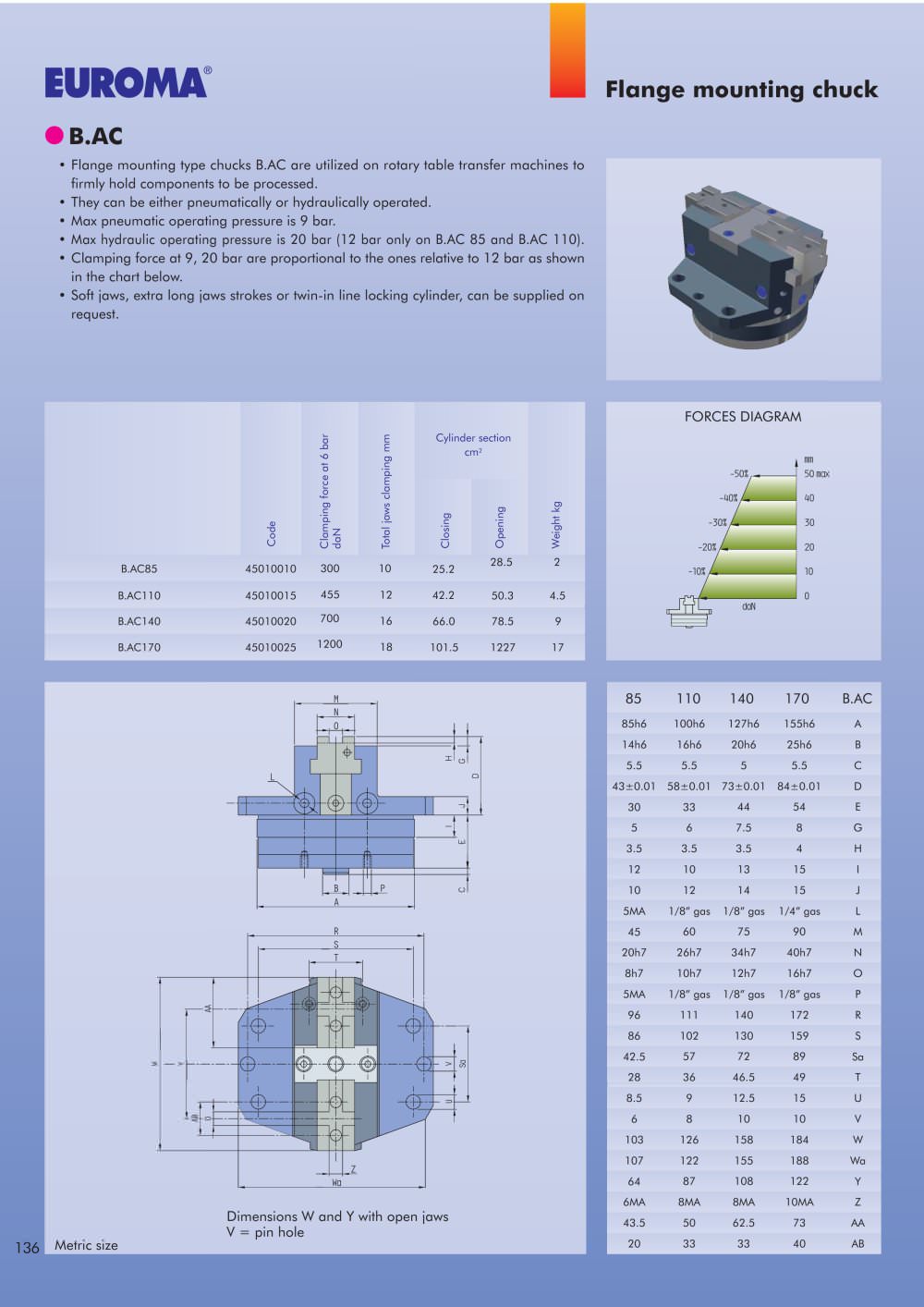

Flange mounting chuck
B.AC
Flange mounting type chucks B.AC are utilized on rotary table transfer machines to firmly hold components to be processed. They can be either pneumatically or hydraulically operated. Max pneumatic operating pressure is 9 bar. Max hydraulic operating pressure is 20 bar (12 bar only on B.AC 85 and B.AC 110). Clamping force at 9, 20 bar are proportional to the ones relative to 12 bar as shown in the chart below.
Soft jaws, extra long jaws strokes ortwin-in line locking cylinder, can be supplied on request.
FORCES DIAGRAM
Cylinder section cm2
m
_o cl jd
L> O £
-50% -10% -30Z -20Z
50 max
10
30
20 10 0
B.AC85
45010010
300
10
25.2
28.5
2
B.AC110
45010015
455
12
42.2
50.3
4.5
B.AC140
45010020
700
16
66.0
78.5
9
B.AC170
45010025
1200
18
101.5
1227
17
85
110
140
170
B.AC
85h6
100h6
127h6
155h6
A
14h6
16h6
20h6
25h6
B
5.5
5.5
5
5.5
C
43+0.01
58+0.01
73+0.01
84+0.01
D
30
33
44
54
E
5
6
7.5
8
G
3.5
3.5
3.5
4
H
12
10
13
15
I
10
12
14
15
J
5MA
1/8"gas
1/8" gas
1/4" gas
L
45
60
75
90
M
20h7
26h7
34h7
40h7
N
8h7
10h7
12h7
16h7
O
5MA
1/8"gas
1/8" gas
1/8"gas
P
96
111
140
172
R
86
102
130
159
S
42.5
57
72
89
Sa
28
36
46.5
49
T
8.5
9
12.5
15
U
6
8
10
10
V
103
126
158
184
W
107
122
155
188
Wa
64
87
108
122
Y
6MA
8MA
8MA
10MA
Z
43.5
50
62.5
73
AA
20
33
33
40
AB
. B . _
p
S
T
-či-v-
z
136 Metric size
Dimensions W and Y with open jaws V = pin hole
