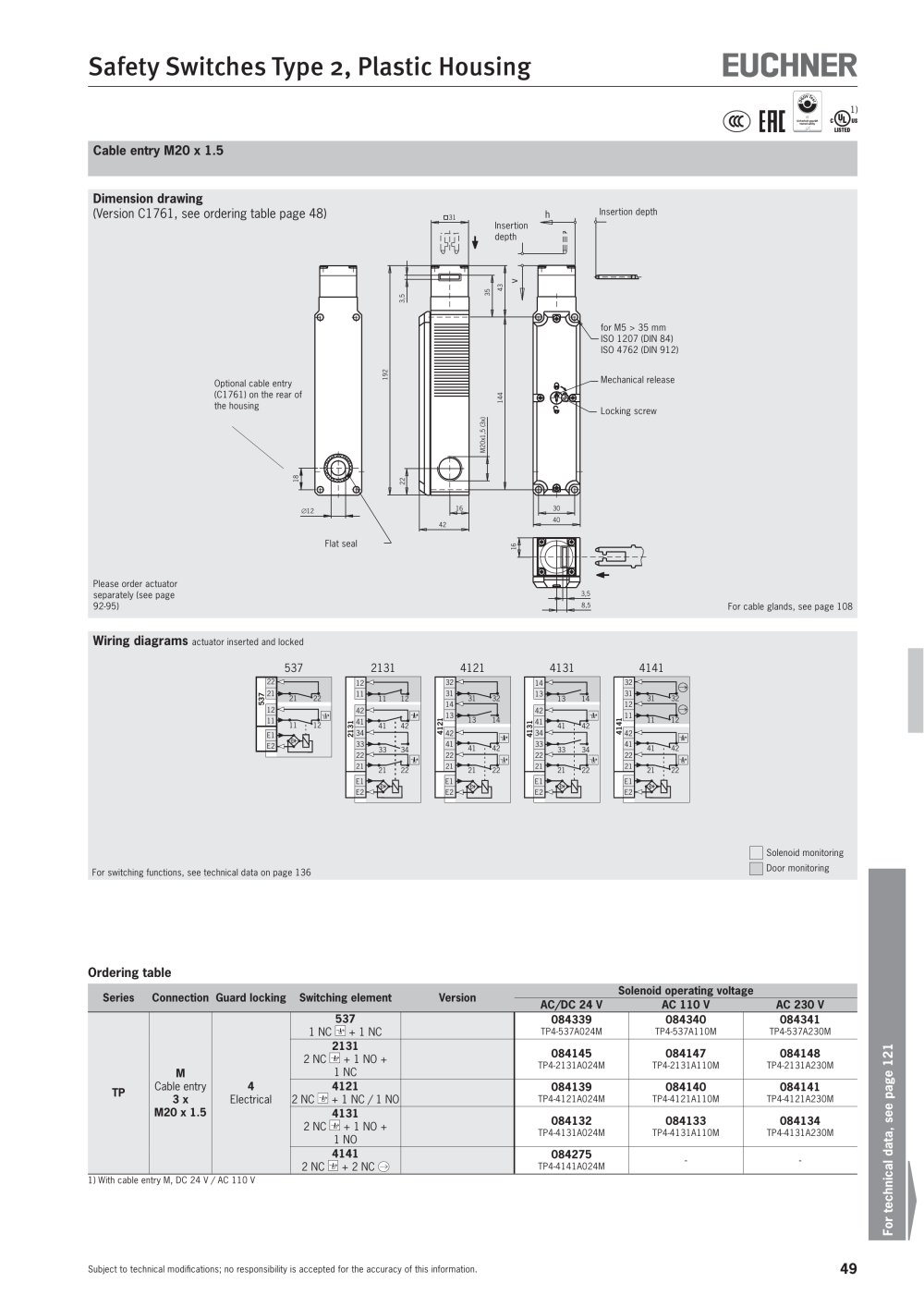

Safety Switches with Separate Actuator, Plastic Housing EUCHNER
2)
Plug connector SR11
11-pin + PE
Dimension drawing
31
Insertion depth
1%
Insertion depth
For M5 > 35 mm ISO 1207 (DIN 84) ISO 4762 (DIN 912)
Mechanical release
■ Locking screw
40
30
Hi—iH
EE3_
16
42
Please order actuator separately (see pages 76-79)
3,5
8,5
For plug connectors see page 86
Wiring diagrams Actuator inserted and locked
2131
4121
4131
4141
| | Solenoid monitoring | | Door monitoring
For switching functions see technical data on page 110
Ordering table
Series Connection Guard locking Switching element
Version
Solenoid operating voltage
AC/DC 24 V
AC 110 V
AC 230 V
2131
2 NC 0 + 1 NO + 1NC
088 205
TP3-2131A024SR11
--
3
Mechanical
4121
2 NC 8 + 1 NC / 1 NO
088 206
TP3-4121A024SR11
--
4131
2 NC 0 + 1 NO + 1 NO
088 204
TP3-4131A024SR11
--
TP
SR11
Plug connector
4141
2 NC 0 + 2 NC 0
088 922
TP3-4141A024SR11
2131
2 NC 0 + 1 NO + 1NC
088 208
TP4-2131A024SR11
4
Electrical
4121
2 NC 0 + 1 NC / 1 NO
088 209
TP4-4121A024SR11
4131
2 NC 0 + 1 NO + 1 NO
088 207
TP4-4131A024SR11
4141
2 NC 0 + 2 NC (
088 923
TP4-4141A024SR11
2) With solenoid operating voltage AC/DC 24 V only
o
£• = e
a s
r
o
ll. Ll.
Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
49
