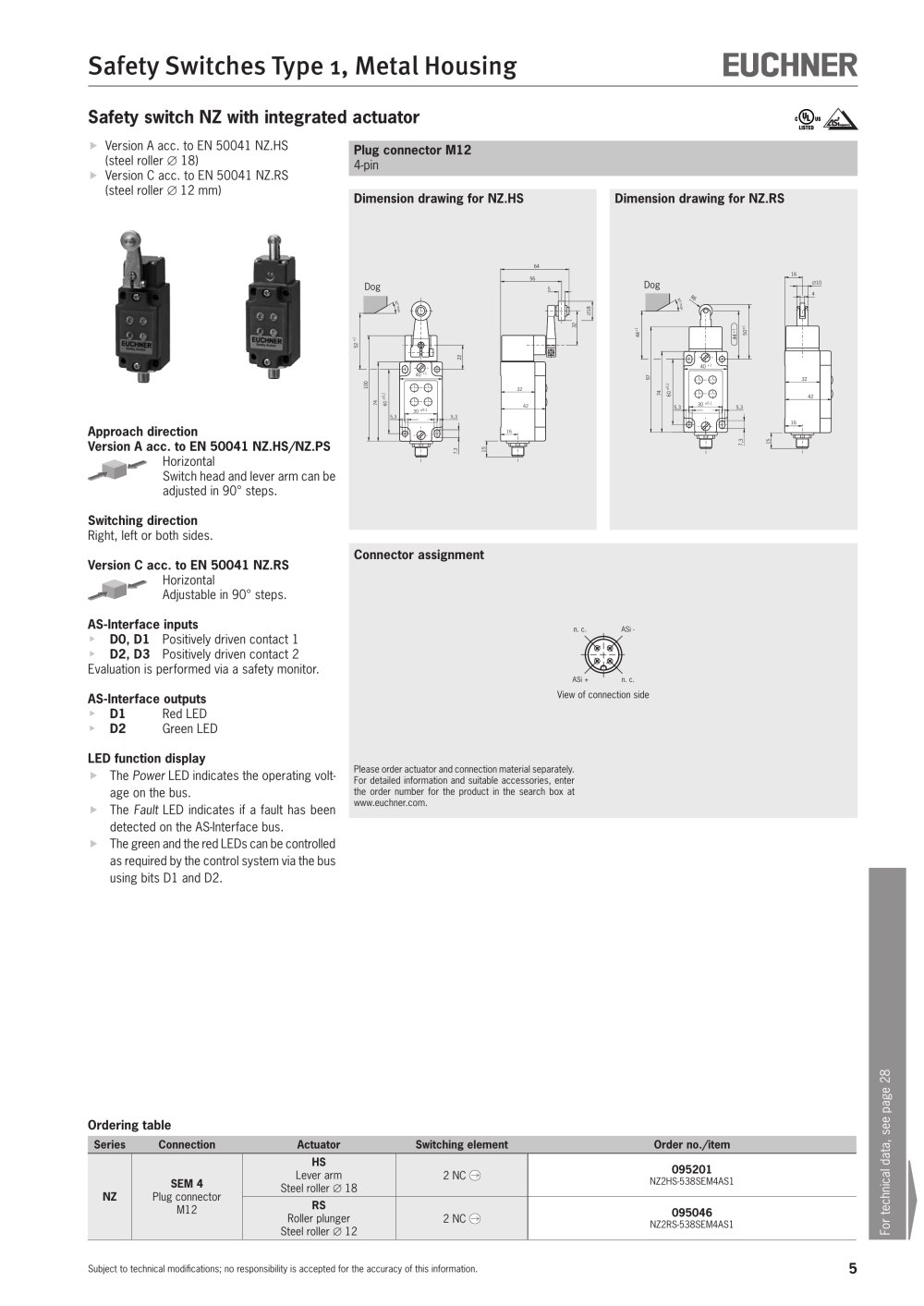

Safety Switches with Safety Function, Metal Housing Subject to technical modifications; no responsibility is accepted for the accuracy of this information. 5 Position switch NZ with integrated actuator
Type A according to EN 50041 NZ.HS (steel roller 18)
Type A according to EN 50041 NZ.HB (plastic roller 18)
Type C according to EN 50041 NZ.RS (steel roller 12 mm) Approach direction Type A according to EN 50041 NZ.HS/NZ.HB Horizontal Switch head and lever arm Adjustable in 90° steps. Switching direction Right, left or both sides. Type C according to EN 50041 NZ.RS Horizontal Adjustable in 90° steps. AS-Interface inputs
D0, D1 Positively driven NC contact 1
D2, D3 Positively driven NC contact 2 Evaluation is performed via a safety monitor. AS-Interface outputs
D1 Red LED
D2 Green LED LED function display
The Power LED indicates the operating voltage at the bus.
The Fault LED indicates if a fault has been detected on the AS-Interface bus.
The green and the red LEDs can be controlled as required by the control system via the bus using bits D1 and D2. Dimension drawing NZ..HS Plug connector M12 4-pin 74 40 +1 30 ±0,1 5,3 7,3 60±0,1 5,3 30°max. 52+1 100 22 15 42 32 16 6 64 56 32 18 Dog 74 40 +1 30 ±0,1 5,3 7,3 60±0,1 5,3 30°max. 52+1 100 22 15 42 32 16 5 64 56 32 18 Dog Dimension drawing NZ..HB 74 40 +1 30 ±0,1 5,3 7,3 60 ±0,1 97 5,3 30°max. R6 44+1 +144 50±1 15 42 32 16 16 10 4 Dog Dimension drawing NZ..RS For trip rails and trip dogs, see the catalog of multiple limit switches. Connector assignment View of connection side ASi + n. c. n. c. ASi - Ordering table Series Connection Actuator Switching element Order no. / item HS 095201 Lever arm 2 NC NZ2HS-538SEM4AS1 Steel roller 18 SEM 4 HB 097591 NZ Plug connector Lever arm 2 NC NZ2HB-538SEM4AS1 M12 Plastic roller 18 RS 095046 Roller plunger 2 NC NZ2RS-538SEM4AS1 Steel roller 12
