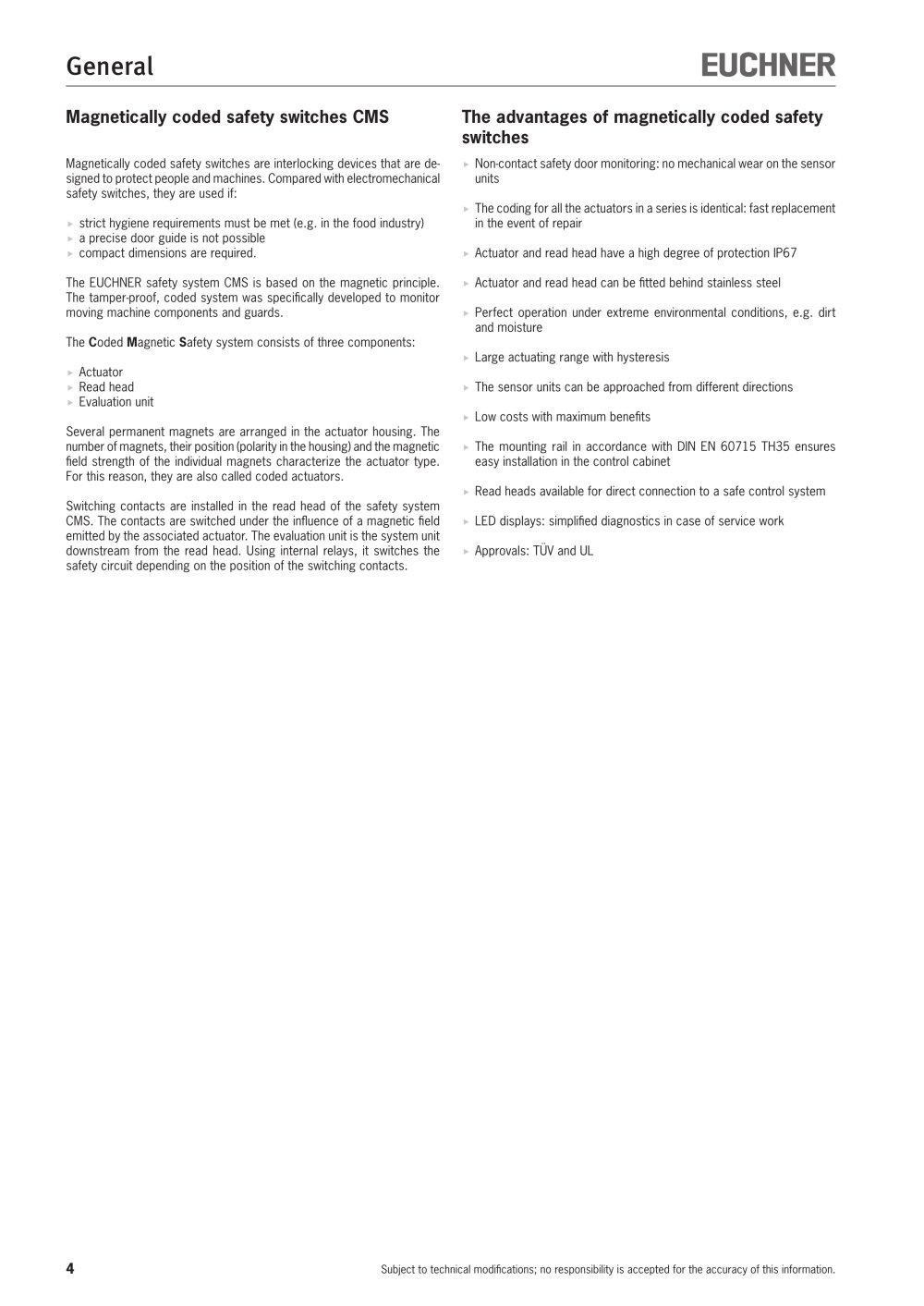

System Overview
EUCHNER
Evaluation unit
Read heads
Function
Category acc. to EN 954-1
CMS-E-AR
► 1 safety contact
► 1 to 2 read heads (NO contacts wired in parallel) can be connected
► Category 3 according to EN 954-1
Cat. 3
or
► 3 to 30 read heads (NO contacts wired in series) can be connected
► Category 2 according to EN 954-1
(see page 7)
Cat. 2
3...30
CMS-E-DR
► 1 safety contact
► 1 to 2 read heads (NO contacts wired in parallel) can be connected
► Category 2 according to EN 954-1
Cat. 2
or
► 3 to 30 read heads (NO contacts wired in series) can be connected
► Category 1 according to EN 954-1
Cat.
1
3...30
(see page 7)
CMS-E-BR
► 1 safety contact
► 1 auxiliary contact
► 1 feedback loop can be connected
► 1 to 4 read heads can be connected
► Category 3 according to EN 954-1
Cat. 3
(see page 23)
1
CMS-E-ER
► 2 safety contacts
► 1 auxiliary contact
► 1 feedback loop can be connected
► 1 read head can be connected
► Start button can be connected
► Category 4 according to EN 954-1
Cat. 4
or
► 2 to 30 read heads can be connected
► Category 3 according to EN 954-1
Cat. 3
2...30
(see page 23)
1
CMS-E-FR
► 2 safety contacts
► 1 auxiliary contact
► 6 monitoring outputs
► 1 feedback loop can be connected
► 1 read head can be connected
► Start button can be connected
► Category 4 according to EN 954-1
Cat. 4
or
► 2 to 30 read heads can be connected
► Category 3 according to EN 954-1
(see page 23)
Cat. 3
2...30
4
Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
