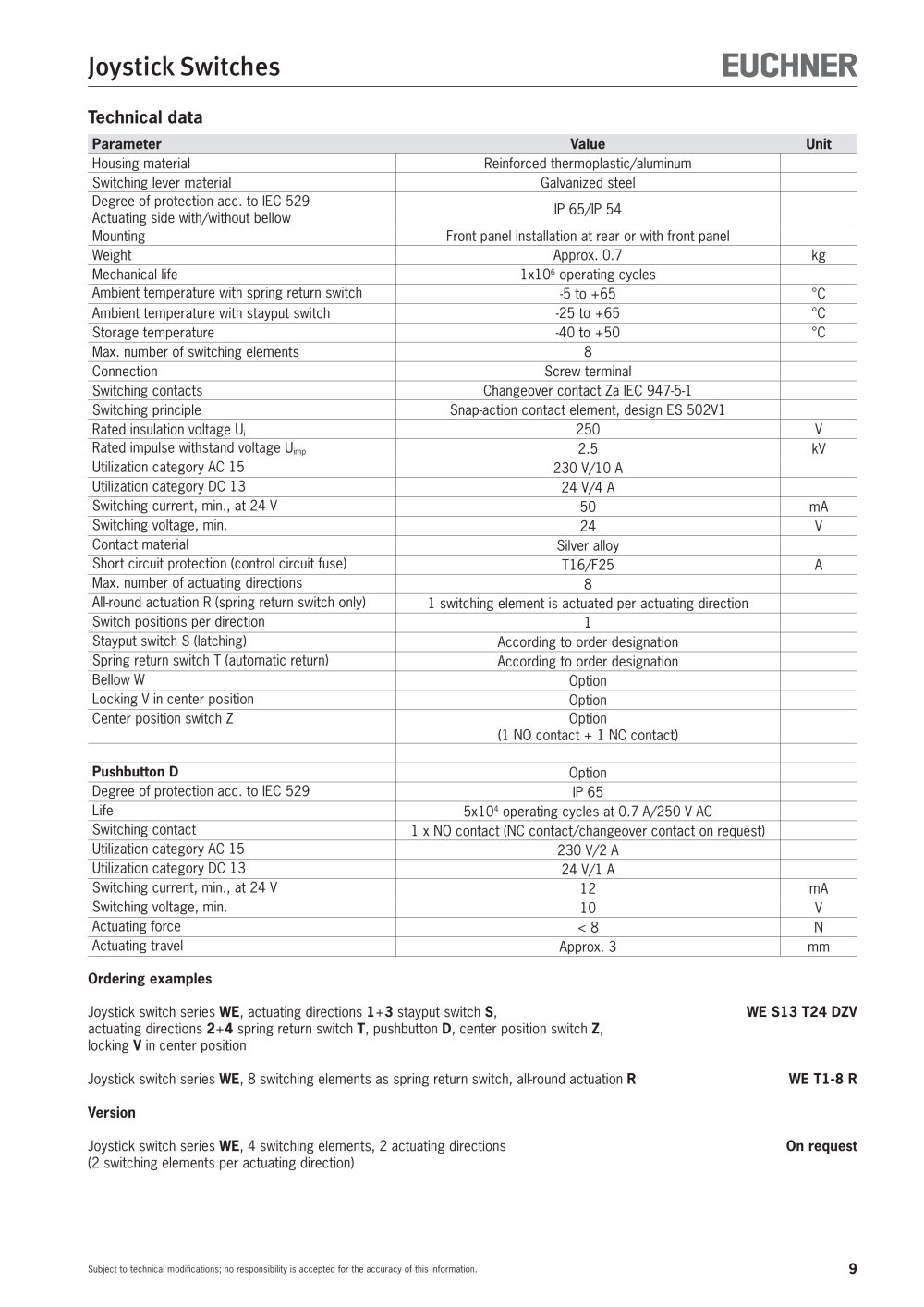

Joystick Switches Subject to technical modifications; no responsibility is accepted for the accuracy of this information. 9 Technical data Parameters Value Unit Housing material glass-fibre reinforced thermoplastic / aluminum Switching lever material galvanized steel Degree of protection to IEC 529 on actuating side with / without bellows IP65 / IP54 Mounting method control panel installation at rear or with front plate Weight approx. 0.65 kg Mechanical life 1x106 switching cycles Ambient temperature with spring return switch -5 to +65 °C Ambient temperature with stayput switch -25 to +65 °C Max. number of switching elements 8 Connection type screw terminal Contact elements changeover contact Za IEC 947-5-1 Switching principle snap-action switch, type ES 502V1 Rated insulation voltage Ui 250 V Rated impulse withstand voltage Uimp 2.5 kV Utilization category AC 15 230 V / 10 A Utilization category DC 13 24 V / 4 A Min. switching current at 24 V 50 mA Min. switching voltage 24 V Contact material silver alloy Short circuit protection (control circuit fuse) slow-blow T16 / quick-blow F25 A Max. number of actuating directions 8 All-round actuation R (spring return switch only) 1 switching element is actuated per actuating direction Switching positions per direction 1 Stayput switch S (latching) according to type designation Spring return switch T according to type designation Bellows W Option Interlock V in centre position Option Centre position switch Z Option Pushbutton D Option Degree of protection to IEC 529 IP65 Electrical life 5x104 switching cycles at 0.7 A / 250 V AC Switching element 1 x NO contact Utilization category AC 15 230 V / 2 A Utilization category DC 13 24 V / 1 A Min. switching current at 24 V 12 mA Min. switching voltage 10 V Actuating force < 8 N Actuating travel approx. 3 mm Ordering examples: Joystick switch series WE, actuating directions 1+3 stayput switch S, WE S13 T24 DZV actuating directions 2+4 spring return switch T, Pushbutton D, centre position switch Z, Interlock V in centre position Joystick switch series WE, 8 switching elements as spring return switches, all-round actuation R WE T1-8 R Design Joystick switch series WE, 4 switching elements, 2 actuating directions on request (2 switching elements per actuating direction)
