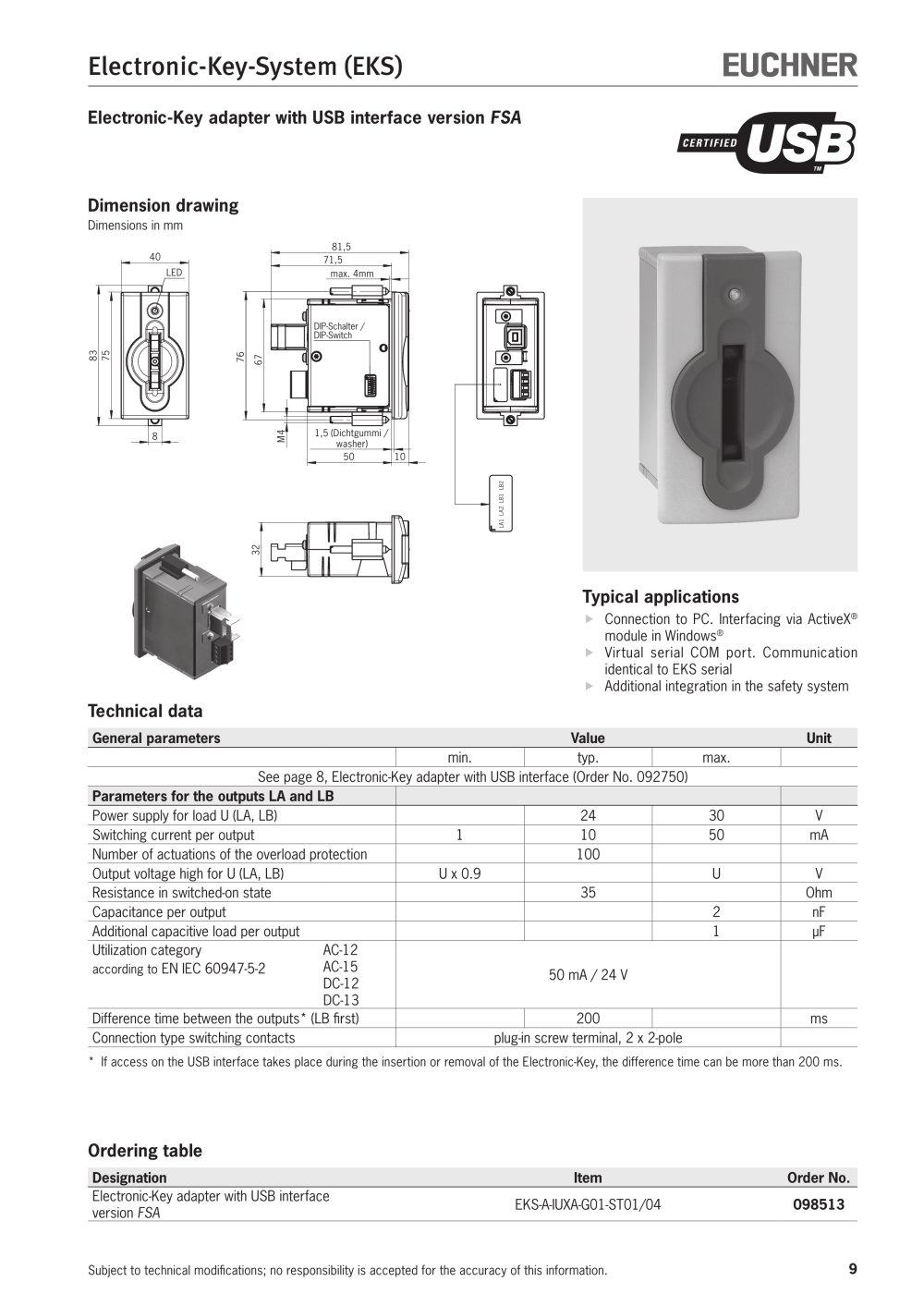

Electronic-Key-System (EKS)
Subject to technical modifications; no responsibility is accepted for the accuracy of this information. 9
Electronic-Key adapter with USB interface version FSA
Technical data
General parameters Value Unit
min. typ. max.
See page 8, Electronic-Key adapter with USB interface (Order No. 092 750)
Parameters for the outputs LA and LB
Power supply for load U (LA, LB) 24 30 V
Switching current per output 1 10 50 mA
Number of actuations of the overload protection 100
Output voltage high for U (LA, LB) U x 0,9 U V
Resistance in switched-on state 35 Ohm
Capacitance per output 2 nF
Additional capacitive load per output 1 ìF
Utilization category AC-12
according to EN IEC 60947-5-2 AC-15 50 mA / 24 V
DC-12
DC-13
Difference time between the outputs* (LB first) 200 ms
Connection type switching contacts plug-in screw terminal, 2 x 2-pole
* If access on the USB interface takes place during the insertion or removal of the Electronic-Key, the difference time can be more than 200 ms.
Ordering table
Designation Item Order No.
Electronic-Key adapter with USB interface version FSA EKS-A-IUXA-G01-ST01/04 098 513
Dimensions in mm
Dimension drawing
Typical applications
Connection to PC. Interfacing via ActiveX®
module in Windows®
Virtual serial COM port. Communication
identical to EKS serial
Additional integration in the safety system
83
40
75
8
LED
67
max. 4mm
M4
1,5 (Dichtgummi /
washer)
81,5
71,5
50 10
76
DIP-Schalter /
DIP-Switch
32
LA1 LA2 LB1 LB2
