Accessories
PC mounting frame for 5.25" drive bay
Product description
For installing the EKS Electronic-Key adapter in a PC.
Dimensions: 148 mm x 42.5 mm x 142 mm (suitable for 5.25” drive bay)
Housing: sheet steel 1 mm in accordance with EN 10111
Surface: front signal black matt RAL 9004
Incl. 4 fastening screws
As an option a connection cable is available for the connection from the USB Electronic-Key adapter to the internal USB connection
on the motherboard.
Dimensions in mm

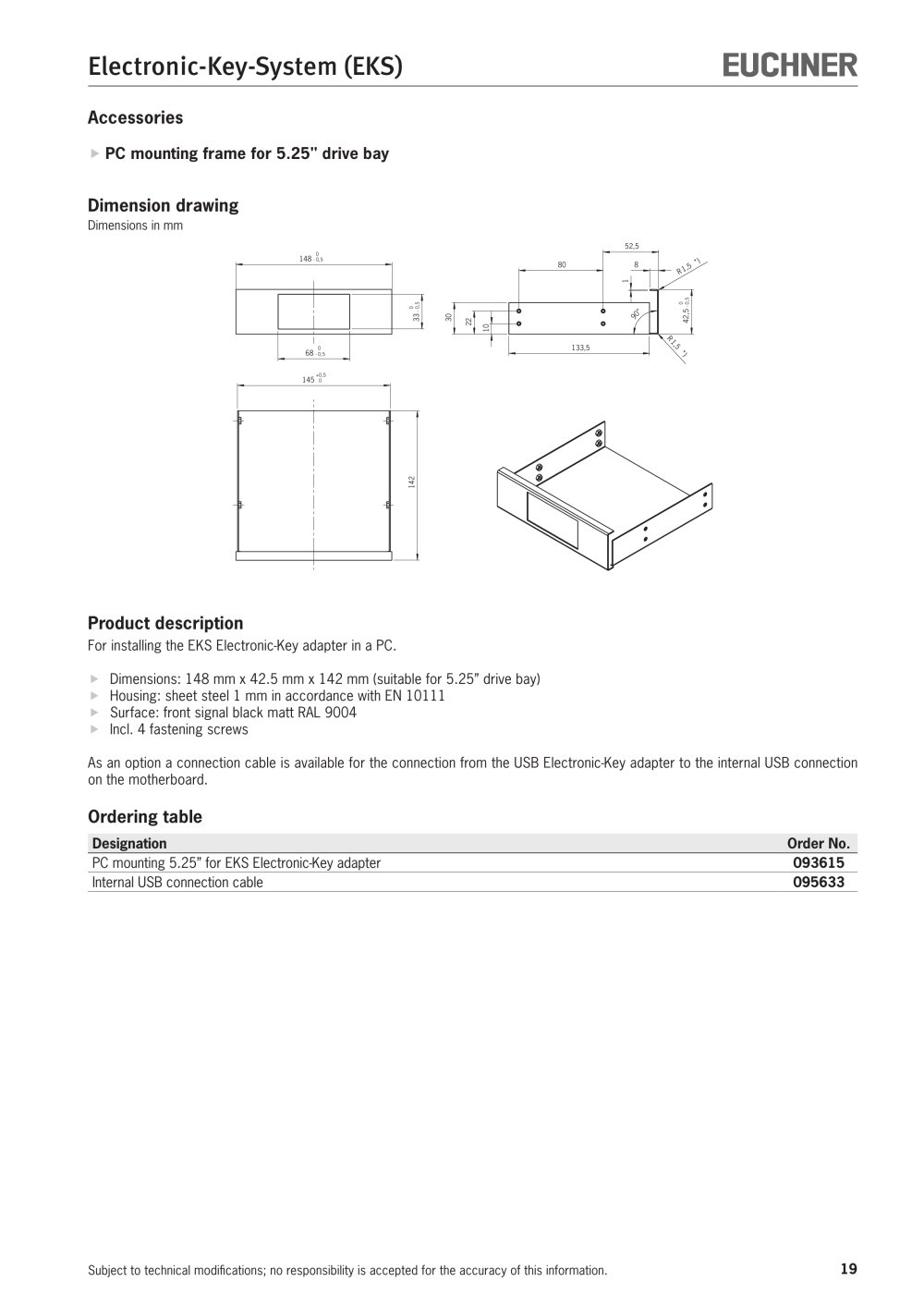

Dimension drawing
Ordering table
Designation Order No.
PC mounting 5.25” for EKS Electronic-Key adapter 093 615
Internal USB connection cable 095 633
