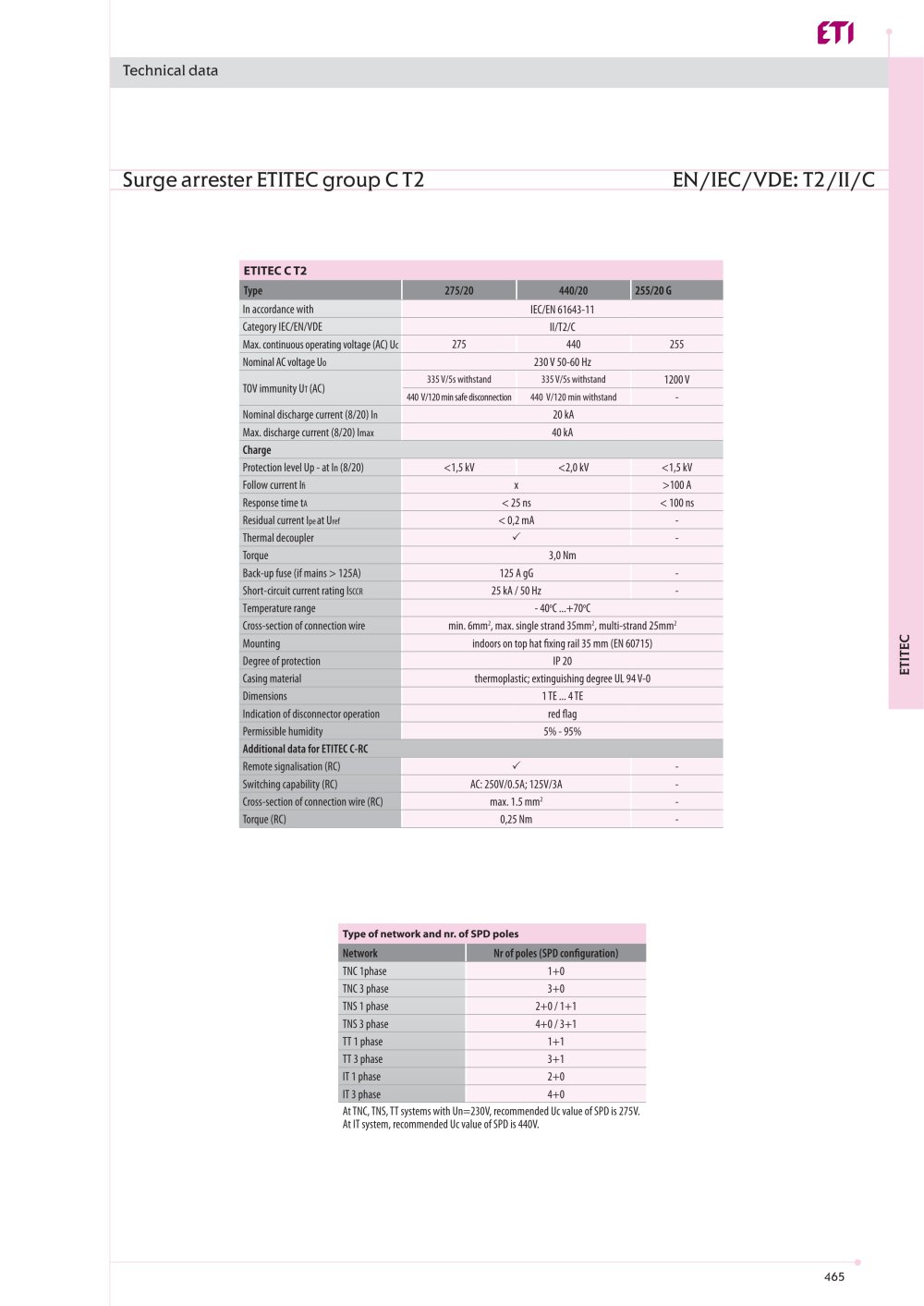

DATA 369 Technical data - ETITEC Technical data Type ETITEC COAX 90-N-FF; N-MF ETITEC COAX 230-N-FF; N-MF ETITEC COAX 350-N-FF; N-MF Nominal DC spark-overvoltage V 90 +/- 20% 230 +/- 20% 350 +/- 20% Max. power peak W 40 125 300 Impedance (Ù) 50 50 50 Frequence range Mhz 0 - 2600 0 - 2600 0 - 2600 Insertion losses dB <0,4 <0,4 <0,4 Return losses dB >20 >20 >20 Nominal discharge current In (8/20) 10 imp. x 5 kA 10 imp. x 5 kA 10 imp. x 5 kA Max. discharge current Imax (8/20) 1 imp. x 10 kA 1 imp. x 10 kA 1 imp. x 10 kA Residual voltage (1kV/ys) <600 V <700 V <900 V Insulation >10 Gohm >10 Gohm >10 Gohm Operating temperature - 40oC ...+80oC Connector N-FF (female/ female); N-MF (male/ female) ETITEC COAX N-FF ETITEC COAX N-MF Technical data Type ETITEC COAX 90-7/16MF ETITEC COAX 230-7/16MF ETITEC COAX 350-7/16MF Nominal DC spark-overvoltage V 90 +/- 20% 230 +/- 20% 350 +/- 20% Max. power peak W 40 125 300 Impedance (Ù) 50 50 50 Frequence range Mhz 0 - 2500 0 - 2500 0 - 2500 Insertion losses dB <0,2 <0,2 <0,2 Return losses dB >20 >20 >20 Nominal discharge current In (8/20) 10 imp. x 5 kA 10 imp. x 5 kA 10 imp. x 5 kA Max. discharge current Imax (8/20) 1 imp. x 10 kA 1 imp. x 10 kA 1 imp. x 10 kA Residual voltage (1kV/ys) <600 V <700 V <900 V Insulation >10 Gohm >10 Gohm >10 Gohm Operating temperature - 40oC ...+80oC Connector 7/16 male / female Surge protection in COAXIAL transmission LINE SHIELD LINE SHIELD PE LINE SHIELD LINE SHIELD PE
