DATA
374

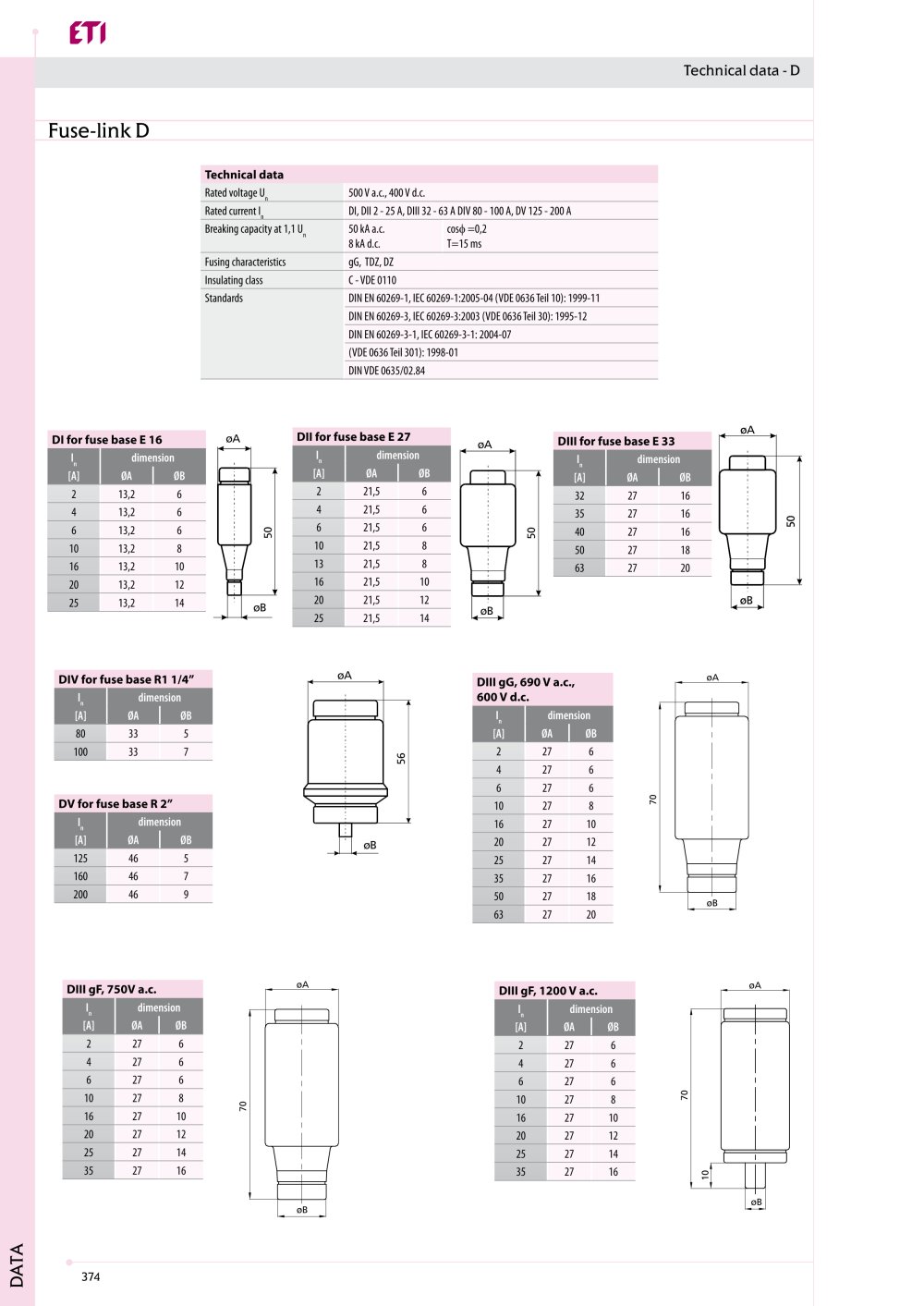

Technical data - D
Technical data
Rated voltage Un 500 V a.c., 400 V d.c.
Rated current In DI, DII 2 - 25 A, DIII 32 - 63 A DIV 80 - 100 A, DV 125 - 200 A
Breaking capacity at 1,1 Un 50 kA a.c.
8 kA d.c.
cosö =0,2
T=15 ms
Fusing characteristics gG, TDZ, DZ
Insulating class C - VDE 0110
Standards DIN EN 60269-1, IEC 60269-1:2005-04 (VDE 0636 Teil 10): 1999-11
DIN EN 60269-3, IEC 60269-3:2003 (VDE 0636 Teil 30): 1995-12
DIN EN 60269-3-1, IEC 60269-3-1: 2004-07
(VDE 0636 Teil 301): 1998-01
DIN VDE 0635/02.84
50
øB
øA
50
øB
øA
56
øB
øA
DI for fuse base E 16
In dimension
[A] ØA ØB
2 13,2 6
4 13,2 6
6 13,2 6
10 13,2 8
16 13,2 10
20 13,2 12
25 13,2 14
DII for fuse base E 27
In dimension
[A] ØA ØB
2 21,5 6
4 21,5 6
6 21,5 6
10 21,5 8
13 21,5 8
16 21,5 10
20 21,5 12
25 21,5 14
DIII for fuse base E 33
In dimension
[A] ØA ØB
32 27 16
35 27 16
40 27 16
50 27 18
63 27 20
DIV for fuse base R1 1/4”
In dimension
[A] ØA ØB
80 33 5
100 33 7
DV for fuse base R 2”
In dimension
[A] ØA ØB
125 46 5
160 46 7
200 46 9
DIII gG, 690 V a.c.,
600 V d.c.
In dimension
[A] ØA ØB
2 27 6
4 27 6
6 27 6
10 27 8
16 27 10
20 27 12
25 27 14
35 27 16
50 27 18
63 27 20
DIII gF, 1200 V a.c.
In dimension
[A] ØA ØB
2 27 6
4 27 6
6 27 6
10 27 8
16 27 10
20 27 12
25 27 14
35 27 16
øA
70
øB
10
Fuse-link D
....
....
....
DIII gF, 750V a.c.
In dimension
[A] ØA ØB
2 27 6
4 27 6
6 27 6
10 27 8
16 27 10
20 27 12
25 27 14
35 27 16
....
....
....
