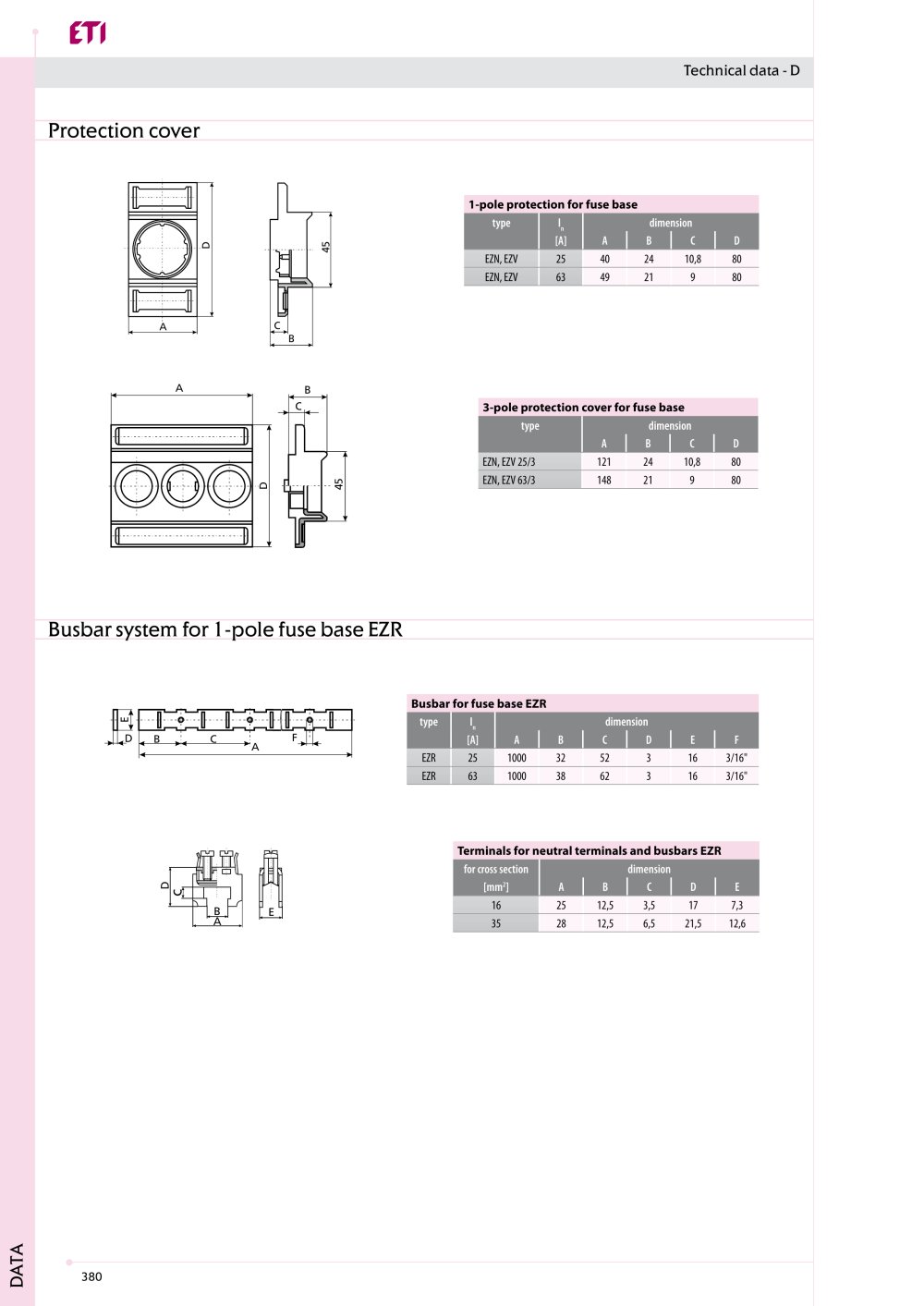

DATA
380
Technical data - D
B C F
A
D
E
Busbar for fuse base EZR
type In dimension
[A] A B C D E F
EZR 25 1000 32 52 3 16 3/16"
EZR 63 1000 38 62 3 16 3/16"
A B
C
D
45
3-pole protection cover for fuse base
type dimension
A B C D
EZN, EZV 25/3 121 24 10,8 80
EZN, EZV 63/3 148 21 9 80
Busbar system for 1-pole fuse base EZR
B
D
A
E
C
Terminals for neutral terminals and busbars EZR
for cross section dimension
[mm2] A B C D E
16 25 12,5 3,5 17 7,3
35 28 12,5 6,5 21,5 12,6
B
A C
D
45
1-pole protection for fuse base
type In dimension
[A] A B C D
EZN, EZV 25 40 24 10,8 80
EZN, EZV 63 49 21 9 80
Protection cover
