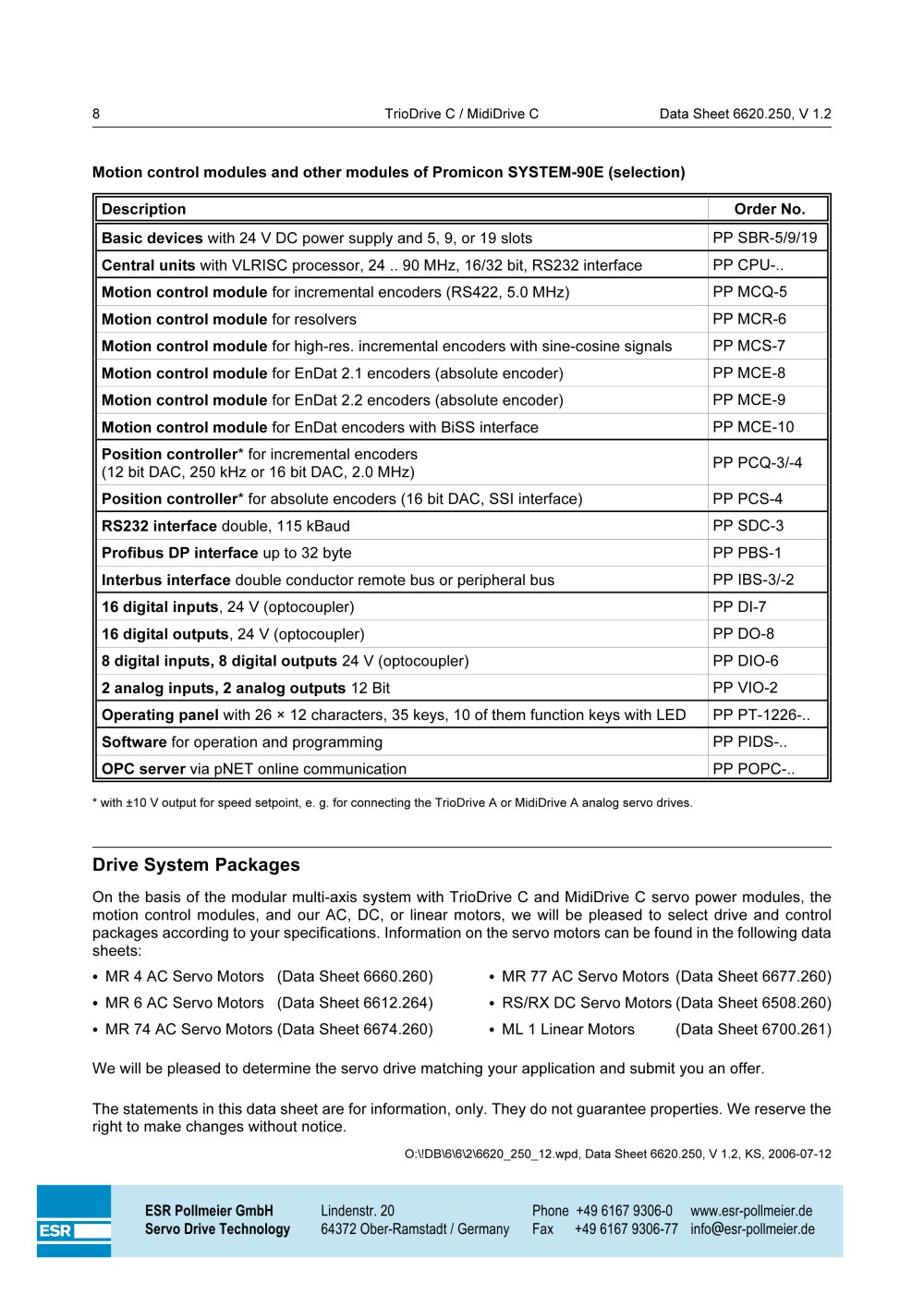

8TrioDrive C / MidiDrive CData Sheet 6620.250, V 1.2 Motion control modules and other modules of Promicon SYSTEM-90E (selection)DescriptionOrder No.Basic devices with 24 V DC power supply and 5, 9, or 19 slotsPP SBR-5/9/19 Central units with VLRISC processor, 24 .. 90 MHz, 16/32 bit, RS232 interfacePP CPU-.. Motion control module for incremental encoders (RS422, 5.0 MHz)PP MCQ-5 Motion control module for resolversPP MCR-6 Motion control module for high-res. incremental encoders with sine-cosine signalsPP MCS-7 Motion control module for EnDat 2.1 encoders (absolute encoder) PP MCE-8 Motion control module for EnDat 2.2 encoders (absolute encoder) PP MCE-9 Motion control module for EnDat encoders with BiSS interfacePP MCE-10 Position controller * for incremental encoders (12 bit DAC, 250 kHz or 16 bit DAC, 2.0 MHz)PP PCQ-3/-4 Position controller * for absolute encoders (16 bit DAC, SSI interface)PP PCS-4 RS232 interface double, 115 kBaudPP SDC-3 Profibus DP interface up to 32 bytePP PBS-1 Interbus interface double conductor remote bus or peripheral bus PP IBS-3/-2 16 digital inputs , 24 V (optocoupler)PP DI-7 16 digital outputs , 24 V (optocoupler)PP DO-8 8 digital inputs, 8 digital outputs 24 V (optocoupler)PP DIO-6 2 analog inputs, 2 analog outputs 12 BitPP VIO-2 Operating panel with 26 × 12 characters, 35 keys, 10 of them function keys with LEDPP PT-1226-.. Software for operation and programmingPP PIDS-.. OPC server via pNET online communicationPP POPC-..
* with ±10 V output for speed setpoint, e. g. for connecting the TrioDrive A or MidiDrive A analog
servo drives.
TrioDrive C / MidiDrive C - 12385 Drive System Packages
On the basis of the modular multi-axis system with TrioDrive C and MidiDrive C servo power modules, themotion control modules, and our AC, DC, or linear motors, we will be pleased to select drive and control
packages according to your specifications. Information on the servo motors can be found in the following data
sheets: C MR 4 AC Servo Motors(Data Sheet 6660.260) C MR 77 AC Servo Motors(Data Sheet 6677.260) C MR 6 AC Servo Motors(Data Sheet 6612.264) C RS/RX DC Servo Motors(Data Sheet 6508.260) C MR 74 AC Servo Motors (Data Sheet 6674.260) C ML 1 Linear Motors(Data Sheet 6700.261)We will be pleased to determine the
servo drive matching your application and submit you an offer. The statements in this data sheet are for information, only. They do not guarantee properties. We reserve theright to make changes without notice.
O:\!DB\6\6\2\6620_250_12.wpd, Data Sheet 6620.250, V 1.2, KS, 2006-07-12
