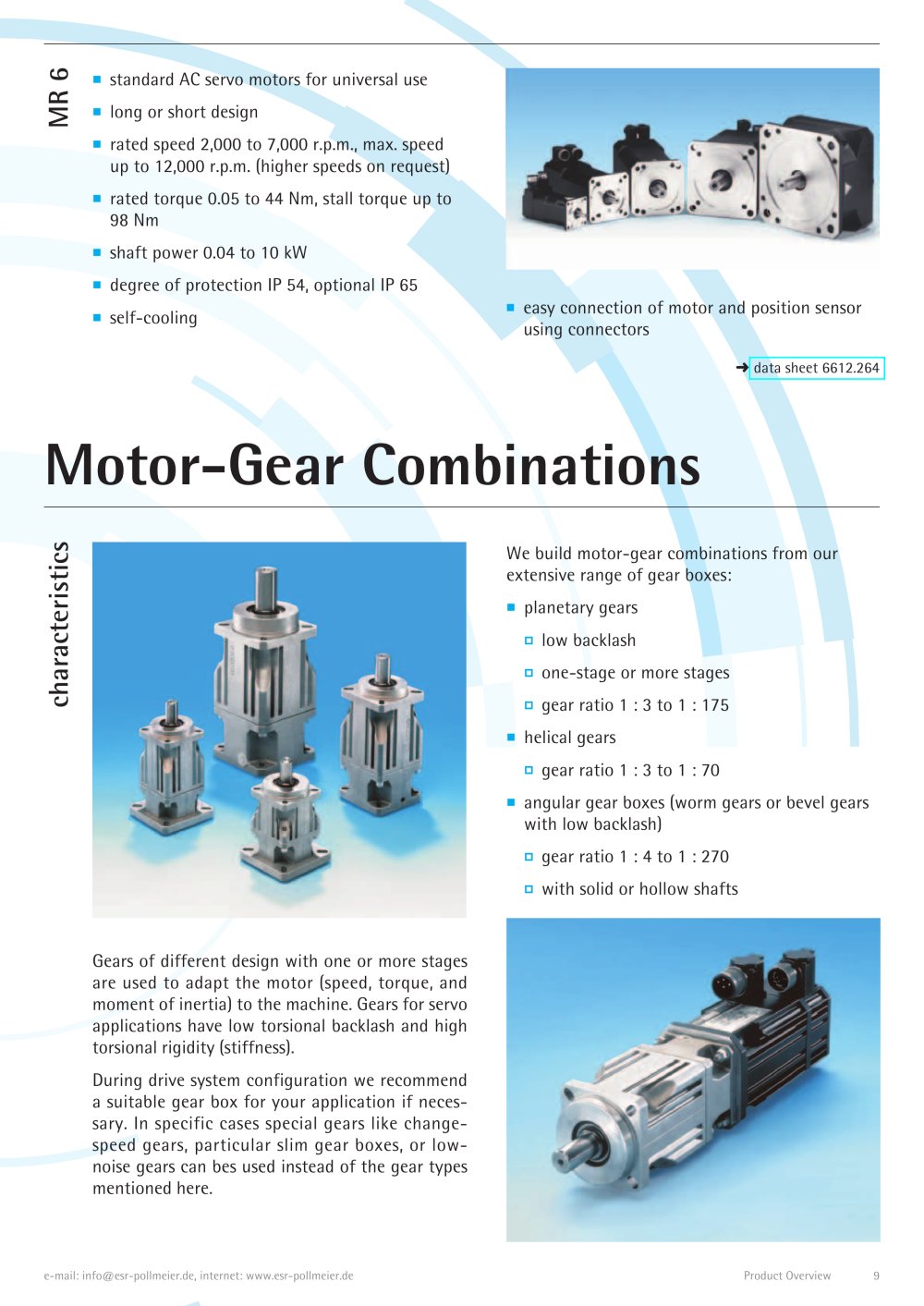

■ standard AC servo motors for universal use

■ long or short design

■ rated speed 2,000 to 7,000 r.p.m., max. speed up to 12,000 r.p.m. (higher speeds on request)

■ rated torque 0.05 to 44 Nm, stall torque up to 98 Nm

■ shaft power 0.04 to 10 kW

■ degree of protection IP 54, optional IP 65

■ self-cooling

■ easy connection of motor and position sensor using connectors

-> data sheet 6612.264

We build motor-gear combinations from our extensive range of gear boxes:

■ planetary gears

□ low backlash

□ one-stage or more stages

□ gear ratio 1 : 3 to 1 : 175

■ helical gears |

□ gear ratio 1 : 3 to 1 : 70

■ angular gear boxes (worm gears or bevel gears with low backlash)

□ gear ratio 1 : 4 to 1 : 270

□ with solid or hollow shafts

Gears of different design with one or more stages are used to adapt the motor (speed, torque, and moment of inertia) to the machine. Gears for servo applications have low torsional backlash and high torsional rigidity (stiffness).

During drive system configuration we recommend a suitable gear box for your application if neces­sary. In specific cases special gears like change-speed gears, particular slim gear boxes, or low-noise gears can bes used instead of the gear types mentioned here.

e-mail: info@esr-pollmeier.de, internet: www.esr-pollmeier.de

Product Overview 9
