Top cover Bottom Cover Temperature
Industrial fabrics Belt Load N/mm Max. Widthmm Belt Special Characteristics Material Colour Thickness mm Surface Material Colour Thickness mm Surface Constant Intermittent No. Plies Weft Thickness mm Weight Kg/m2 Load 1% 1.5%

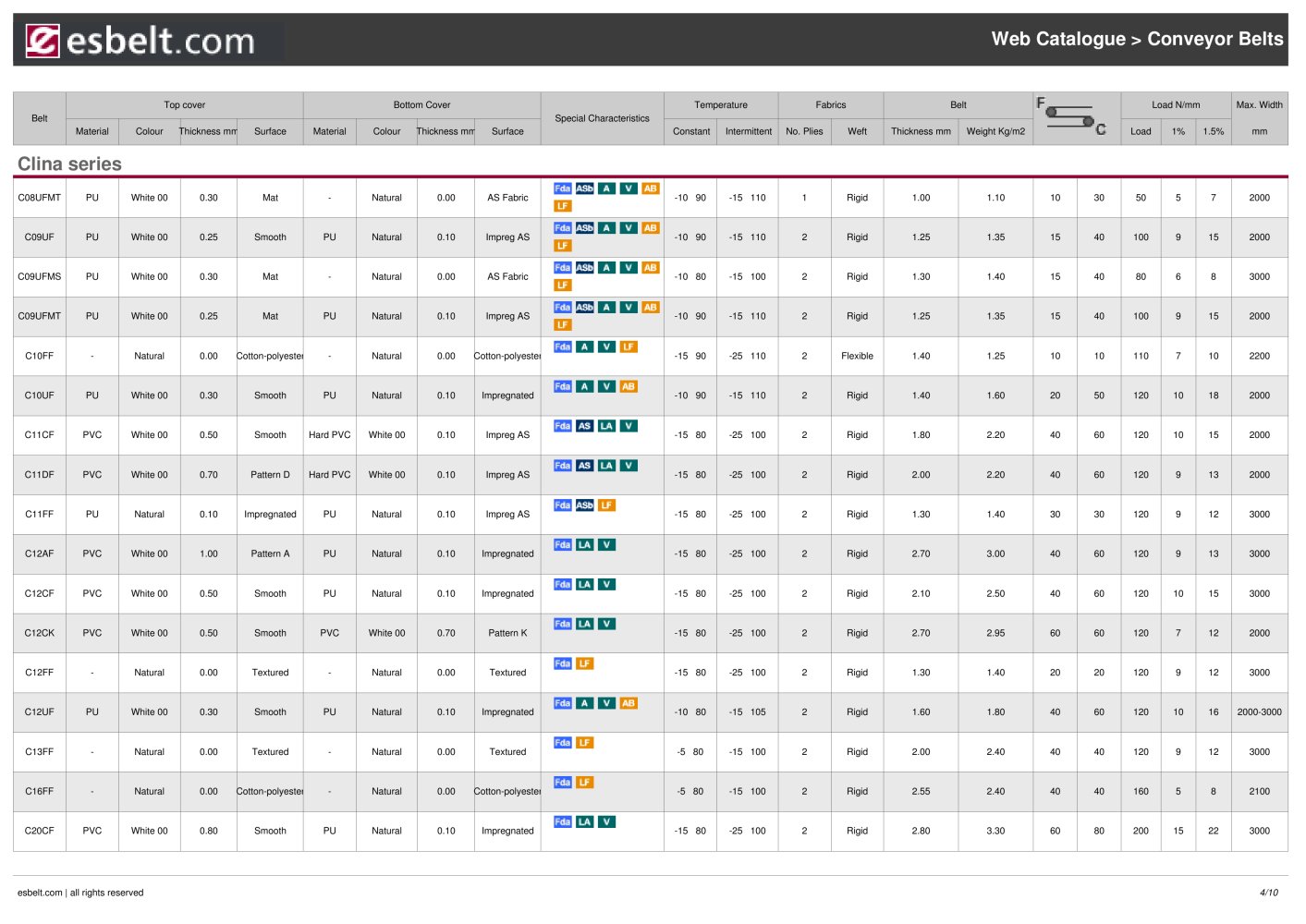

Clina series
C08UFMT PU White 00 0.30 Mat - Natural 0.00 AS Fabric -10 90 -15 110 1 Rigid 1.00 1.10 10 30 50 5 7 2000 C09UF PU White 00 0.25 Smooth PU Natural 0.10 Impreg AS -10 90 -15 110 2 Rigid 1.25 1.35 15 40 100 9 15 2000 C09UFMS PU White 00 0.30 Mat - Natural 0.00 AS Fabric -10 80 -15 100 2 Rigid 1.30 1.40 15 40 80 6 8 3000 C09UFMT PU White 00 0.25 Mat PU Natural 0.10 Impreg AS -10 90 -15 110 2 Rigid 1.25 1.35 15 40 100 9 15 2000 C10FF - Natural 0.00 Cotton-polyester - Natural 0.00 Cotton-polyester -15 90 -25 110 2 Flexible 1.40 1.25 10 10 110 7 10 2200 C10UF PU White 00 0.30 Smooth PU Natural 0.10 Impregnated -10 90 -15 110 2 Rigid 1.40 1.60 20 50 120 10 18 2000 C11CF PVC White 00 0.50 Smooth Hard PVC White 00 0.10 Impreg AS -15 80 -25 100 2 Rigid 1.80 2.20 40 60 120 10 15 2000 C11DF PVC White 00 0.70 Pattern D Hard PVC White 00 0.10 Impreg AS -15 80 -25 100 2 Rigid 2.00 2.20 40 60 120 9 13 2000 C11FF PU Natural 0.10 Impregnated PU Natural 0.10 Impreg AS -15 80 -25 100 2 Rigid 1.30 1.40 30 30 120 9 12 3000 C12AF PVC White 00 1.00 Pattern A PU Natural 0.10 Impregnated -15 80 -25 100 2 Rigid 2.70 3.00 40 60 120 9 13 3000 C12CF PVC White 00 0.50 Smooth PU Natural 0.10 Impregnated -15 80 -25 100 2 Rigid 2.10 2.50 40 60 120 10 15 3000 C12CK PVC White 00 0.50 Smooth PVC White 00 0.70 Pattern K -15 80 -25 100 2 Rigid 2.70 2.95 60 60 120 7 12 2000 C12FF - Natural 0.00 Textured - Natural 0.00 Textured -15 80 -25 100 2 Rigid 1.30 1.40 20 20 120 9 12 3000 C12UF PU White 00 0.30 Smooth PU Natural 0.10 Impregnated -10 80 -15 105 2 Rigid 1.60 1.80 40 60 120 10 16 2000-3000 C13FF - Natural 0.00 Textured - Natural 0.00 Textured -5 80 -15 100 2 Rigid 2.00 2.40 40 40 120 9 12 3000 C16FF - Natural 0.00 Cotton-polyester - Natural 0.00 Cotton-polyester -5 80 -15 100 2 Rigid 2.55 2.40 40 40 160 5 8 2100 C20CF PVC White 00 0.80 Smooth PU Natural 0.10 Impregnated -15 80 -25 100 2 Rigid 2.80 3.30 60 80 200 15 22 3000 esbelt.com | all rights reserved 4/10
