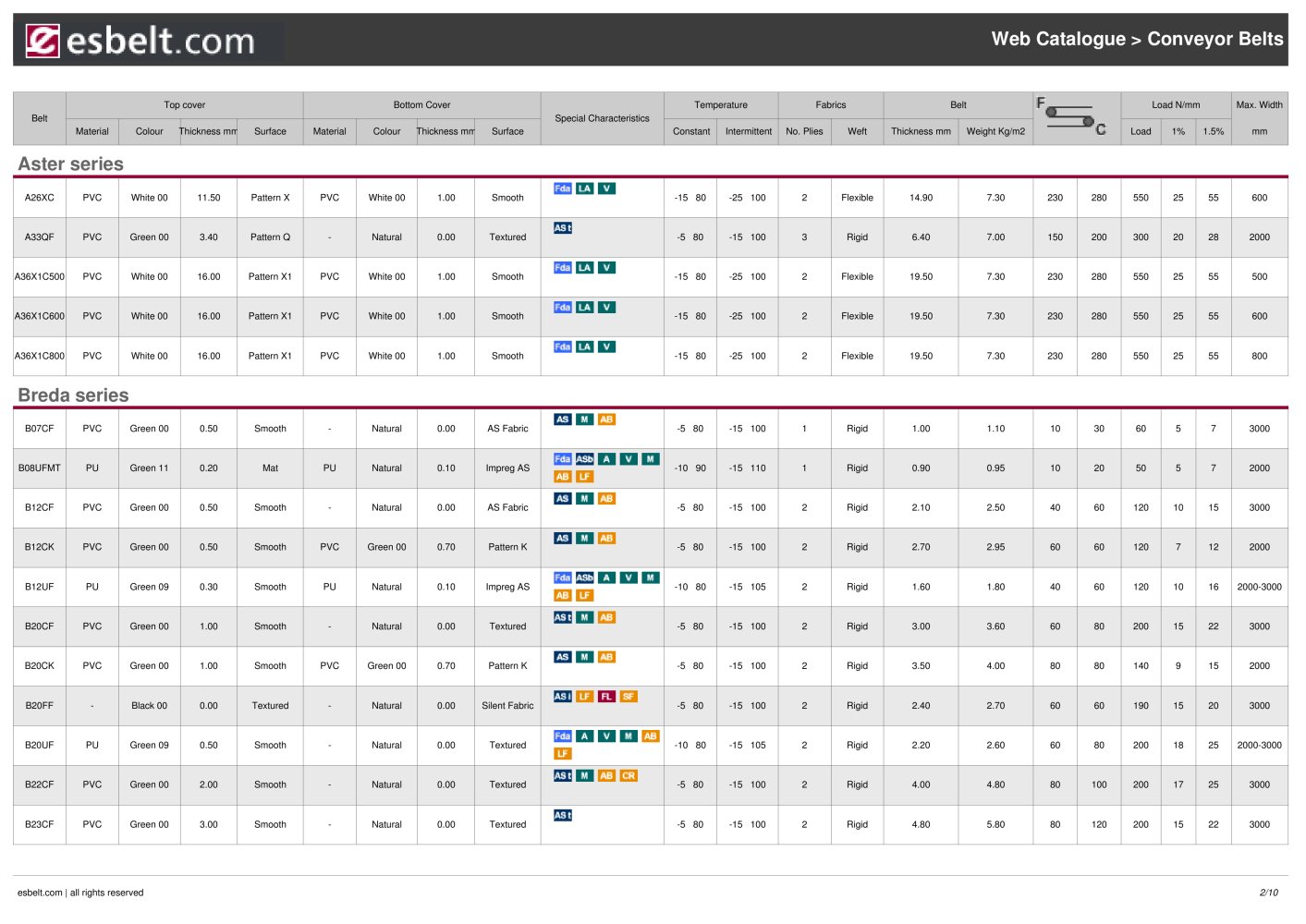

Top cover Bottom Cover Temperature
Industrial fabrics Belt Load N/mm Max. Widthmm Belt Special Characteristics Material Colour Thickness mm Surface Material Colour Thickness mm Surface Constant Intermittent No. Plies Weft Thickness mm Weight Kg/m2 Load 1% 1.5%
Aster series
A26XC PVC White 00 11.50 Pattern X PVC White 00 1.00 Smooth -15 80 -25 100 2 Flexible 14.90 7.30 230 280 550 25 55 600 A33QF PVC Green 00 3.40 Pattern Q - Natural 0.00 Textured -5 80 -15 100 3 Rigid 6.40 7.00 150 200 300 20 28 2000 A36X1C500 PVC White 00 16.00 Pattern X1 PVC White 00 1.00 Smooth -15 80 -25 100 2 Flexible 19.50 7.30 230 280 550 25 55 500 A36X1C600 PVC White 00 16.00 Pattern X1 PVC White 00 1.00 Smooth -15 80 -25 100 2 Flexible 19.50 7.30 230 280 550 25 55 600 A36X1C800 PVC White 00 16.00 Pattern X1 PVC White 00 1.00 Smooth -15 80 -25 100 2 Flexible 19.50 7.30 230 280 550 25 55 800
Breda series
B07CF PVC Green 00 0.50 Smooth - Natural 0.00 AS Fabric -5 80 -15 100 1 Rigid 1.00 1.10 10 30 60 5 7 3000 B08UFMT PU Green 11 0.20 Mat PU Natural 0.10 Impreg AS -10 90 -15 110 1 Rigid 0.90 0.95 10 20 50 5 7 2000 B12CF PVC Green 00 0.50 Smooth - Natural 0.00 AS Fabric -5 80 -15 100 2 Rigid 2.10 2.50 40 60 120 10 15 3000 B12CK PVC Green 00 0.50 Smooth PVC Green 00 0.70 Pattern K -5 80 -15 100 2 Rigid 2.70 2.95 60 60 120 7 12 2000 B12UF PU Green 09 0.30 Smooth PU Natural 0.10 Impreg AS -10 80 -15 105 2 Rigid 1.60 1.80 40 60 120 10 16 2000-3000 B20CF PVC Green 00 1.00 Smooth - Natural 0.00 Textured -5 80 -15 100 2 Rigid 3.00 3.60 60 80 200 15 22 3000 B20CK PVC Green 00 1.00 Smooth PVC Green 00 0.70 Pattern K -5 80 -15 100 2 Rigid 3.50 4.00 80 80 140 9 15 2000 B20FF - Black 00 0.00 Textured - Natural 0.00 Silent Fabric -5 80 -15 100 2 Rigid 2.40 2.70 60 60 190 15 20 3000 B20UF PU Green 09 0.50 Smooth - Natural 0.00 Textured -10 80 -15 105 2 Rigid 2.20 2.60 60 80 200 18 25 2000-3000 B22CF PVC Green 00 2.00 Smooth - Natural 0.00 Textured -5 80 -15 100 2 Rigid 4.00 4.80 80 100 200 17 25 3000 B23CF PVC Green 00 3.00 Smooth - Natural 0.00 Textured -5 80 -15 100 2 Rigid 4.80 5.80 80 120 200 15 22 3000 esbelt.com | all rights reserved 2/10
